(8-012) - HYDRAULIC PUMP ASSEMBLY, PRIOR TO P.I.N. JEE0071001

Запчасти Case IH 9370 QUADTRAC (8-012) - HYDRAULIC PUMP ASSEMBLY, PRIOR TO P.I.N. JEE0071001 (08) - HYDRAULICS

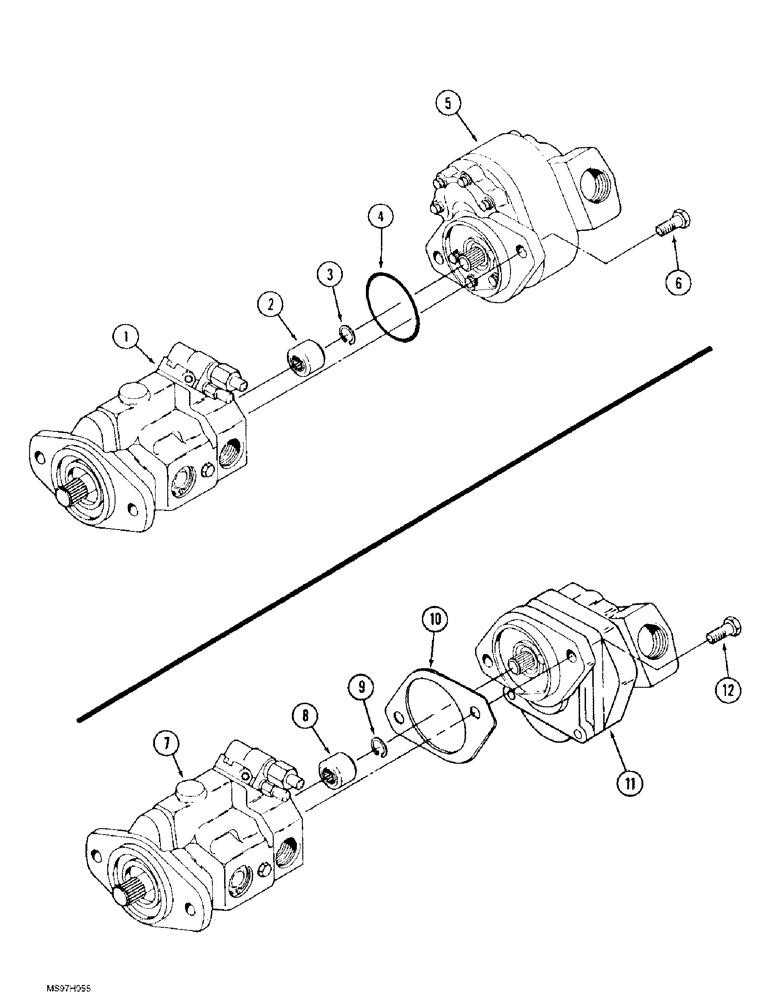

Схема запчастей Case IH 9370 QUADTRAC - (8-012) - HYDRAULIC PUMP ASSEMBLY, PRIOR TO P.I.N. JEE0071001 (08) - HYDRAULICS
1
6
2
9
8
5
10
12
3
11
7
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

50-3548T93

PUMP

ASSEMBLY - tandem, piston and gear, Includes: Ref. 1 - 6

1шт.

50-3548T93R

REMAN-HYD PUMP

QUADTRAC® Case IH 4WD Tractor, Assembly, Tandem, Piston and Gear (1/97-12/99)

1шт.

50-3548T93C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

50-3547T92

PUMP,45.39 CC

ASSEMBLY - piston, parts list Figures 8-014 and 8-016

1шт.

392985a1 is the housing sub assembly of 50-3547T92. bj 22mar00.

1шт.

50-3547T92R

REMAN-HYD PUMP

QUADTRAC® Prior To P.I.N. JEE0071001

1шт.

50-3547T92C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

50-2663T1

COUPLING

- drive, pump

1шт.

3

D66349

RING, SNAP

RING - retaining

1шт.

4

D41420

O-RING,0.07" Thk x 3.989" ID, -45, Cl 5, 75 Duro

- seal

1шт.

5

50-2662T92

PUMP, HYDRAULIC,55.22 CC

PUMP ASSEMBLY - gear, parts list Figure 8-18

1шт.

50-2662T92R

REMAN-HYD PUMP

QUADTRAC® PRIOR TO P.I.N. JEE0071001 (1/97-12/99)

1шт.

50-2662T92C

CORE-HYDRAULIC PUMP

Return Number

1шт.

6

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

50-3619T91

PUMP, HYDRAULIC

PUMP ASSEMBLY - tandem, piston and gear, hydraulic, P.I.N. JEE0071001 and after, Includes: Ref. 7 - 12

1шт.

7

50-3547T92

PUMP,45.39 CC

ASSEMBLY - piston, parts list Figures 8-014 and 8-016, hydraulic, P.I.N. JEE0071001 and after

1шт.

50-3547T92R

REMAN-HYD PUMP

QUADTRAC® Prior To P.I.N. JEE0071001

1шт.

50-3547T92C

CORE-HYDRAULIC PUMP

Return Number

1шт.

8

50-2663T1

COUPLING

- drive, pump, hydraulic assembly, P.I.N. JEE0071001 and after

1шт.

9

D66349

RING, SNAP

RING - retaining, hydraulic pump assembly, P.I.N. JEE0071001 and after

1шт.

10

18-1176T1

GASKET

- pump, seal, hydraulic assembly, P.I.N. JEE0071001 and after

1шт.

11

50-3589T91

PUMP, HYDRAULIC

PUMP ASSEMBLY - gear, parts list Figure 8-020

1шт.

50-3589T91R

REMAN-HYD PUMP

QUADTRAC®, Prior To P.I.N. JEE0071001

1шт.

50-3589T91C

CORE-HYDRAULIC PUMP

Return Number

1шт.

12

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

Hydraulic pump assembly, P.I.N. JEE0071001 and after Hex, 1/2"-13 x 1 1/2", G5, Full Thd

2шт.
