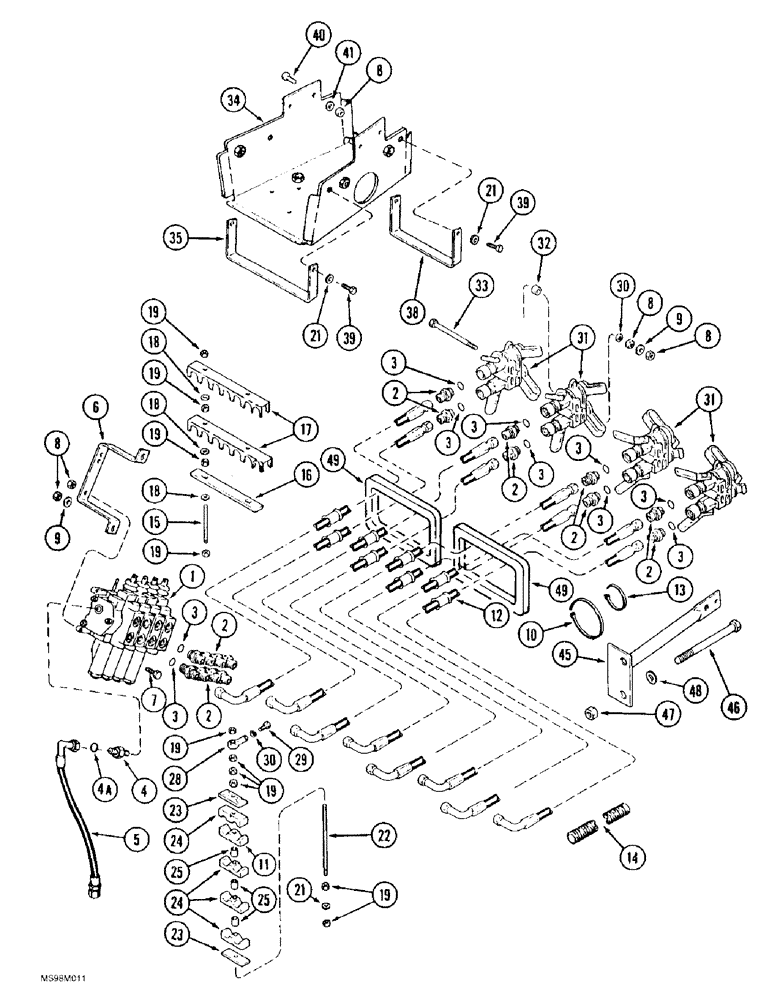

Запчасти Case IH 9370 QUADTRAC (8-008) - HYDRAULIC COUPLER CIRCUIT (08) - HYDRAULICS

1

50-3550T91

VALVE, CONTROL

VALVE ASSEMBLY - remote, three spool, without load locks, not used with high output hydraulics option, parts list Figure 8-034

1шт.

1

50-3572T91

VALVE

ASSEMBLY - remote, four spool, with load locks, not used with high output hydraulics option, parts list Figure 8-036, prior to P.I.N. JEE0071001

1шт.

1

50-3609T91

VALVE

ASSEMBLY - remote, four spool, high output option, P.I.N. JEE0071001 and after, parts list Figure 8-038

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch flare x O-ring boss, Includes: Ref. 3

16шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

4

218-5044

HYD CONNECTOR,9/16" - 18 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 9/16-18 flare x 1-1/16-12 inch O-ring boss, prior to P.I.N. JEE0069665, Includes: Ref. 4A

1шт.

4a

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

5

31-3153

HOSE

- 457 mm (18 inch) long, track tensioning, without TPH, prior to P.I.N. JEE0071001, See Figure 8-118 for P.I.N. JEE0071001 and after hose

1шт.

6

50-3042T1

SUPPORT

BRACKET - valve mounting

2шт.

7

426-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

- hex, 3/8 NC x 1-1/2 inch, grade 8

3шт.

8

425-106

NUT,3/8"-16, Cl 5

16шт.

9

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

8шт.

10

50-2037T1

STRAP

- tie

3шт.

11

50-2551T1

CLAMP

- hose, split, includes both halves

1шт.

12

31-3073

HOSE,15.88mm ID x 3556mm L

- to couplers, replaces 31-3195 hose

8шт.

13

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch

1шт.

14

50-3220T1

CONDUIT

- hose, flex, 1829 mm (72 inch) long, cut from S119717X bulk conduit, see below

8шт.

15

50-3343T1

STUD

- clamp

2шт.

16

258810A1

BAR

- clamping

1шт.

17

258807A1

SUPPORT

BRACKET - hose

2шт.

18

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

10шт.

19

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

12шт.

21

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

10шт.

22

50-2713T1

STUD

- clamp, 5/16 NC x 8-1/2 inch

1шт.

23

50-2533T1

PLATE

- clamp support

2шт.

24

50-2534T1

CLAMP

- split, one-half

4шт.

25

19-6249

SPACER

- clamp

3шт.

28

19-6233

BALL JOINT

JOINT - ball

1шт.

29

428-616

BOLT,Hex, 3/8" - 24 x 1", Gr 8

- hex, 3/8 NF x 1 inch, grade 8

1шт.

S119717X

CONDUIT

- bulk, 25 (1) ID x 4877 mm (192 inch) long

1шт.

30

492-11038

LOCK WASHER,3/8"

5шт.

31

50-1459T91

PUSH-PULL COUPLING

COUPLER ASSEMBLY - quick, See Figure 8-056 for assembly

4шт.

31

50-1460T91

PUSH-PULL COUPLING

COUPLER ASSEMBLY - quick, See Figure 8-056 for assembly

5шт.

32

70-2806T1

SPACER

- coupler

4шт.

33

426-648

BOLT,Hex, 3/8" - 16 x 3", Gr 8

- hex, 3/8 NC x 3 inch, grade 8, single coupler

4шт.

33

426-688

BOLT,Hex, 3/8" - 16 x 5-1/2", Gr 8

- hex, 3/8 NC x 5-1/2 inch, grade 8, double coupler

3шт.

34

258463A1

SUPPORT

BRACKET - mounting, remote hose

1шт.

35

258809A1

SUPPORT

BRACKET - mounting, remote hose

1шт.

38

258808A1

SUPPORT

BRACKET - mounting, remote hose

1шт.

39

426-516

BOLT,Hex, 5/16" - 18 x 1", Gr 8

- hex, 5/16 NC x 1 inch, grade 8

4шт.

40

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

5шт.

41

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

5шт.

45

50-3318T1

SUPPORT

MOUNT - coupler, left-hand, with PTO

1шт.

45

50-3319T1

SUPPORT

MOUNT - coupler, right-hand, with PTO

1шт.

45

50-3585T1

SUPPORT

MOUNT - coupler, left-hand, without PTO, not shown

1шт.

REF ITEM 45 (C) & 45 (D), P/N 50-3585T1 IS THE LH COUPLER MOUNT PER THE PRINT. P/N 50-3586T1 IS THE RH COUPLER MOUNT PER THE PRINT.PULLED PRINTS AND HELPED TO ID THE LH VS. THE RH COUPLER MOUNT. [3/17/99 ET QCB#G9-294 ISSUED FOR ALL DEPOTS TO

1шт.

CHECK STOCK AND RELABEL/REBIN.]

1шт.

45

50-3586T1

SUPPORT

MOUNT - coupler, right-hand, without PTO, not shown

1шт.

46

426-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 8

- hex, 3/4 NC x 2-3/4 inch, grade 8, with three point hitch

4шт.

46

413-12128

BOLT,Hex, 3/4" - 10 x 8", Gr 5

- hex, 3/4 NC x 8 inch, without three point hitch

4шт.

46

627-20050

BOLT,Hex, M20 x 2.5 x 50mm, Cl 10.9, Full Thd

- hex, full threads, 20 - 2.5 x 50 mm, class 10.9, without PTO

8шт.

47

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

4шт.

48

895-11020

WASHER,M20 x 37 x 3

- flat, 22 x 37 x 3 mm, hardened

8шт.

49

338875A1

GROMMET

TRIM - edge, see below

2шт.

31-1785

GROMMET

- edge, bulk, 3048 mm (120 inch) long

1шт.
