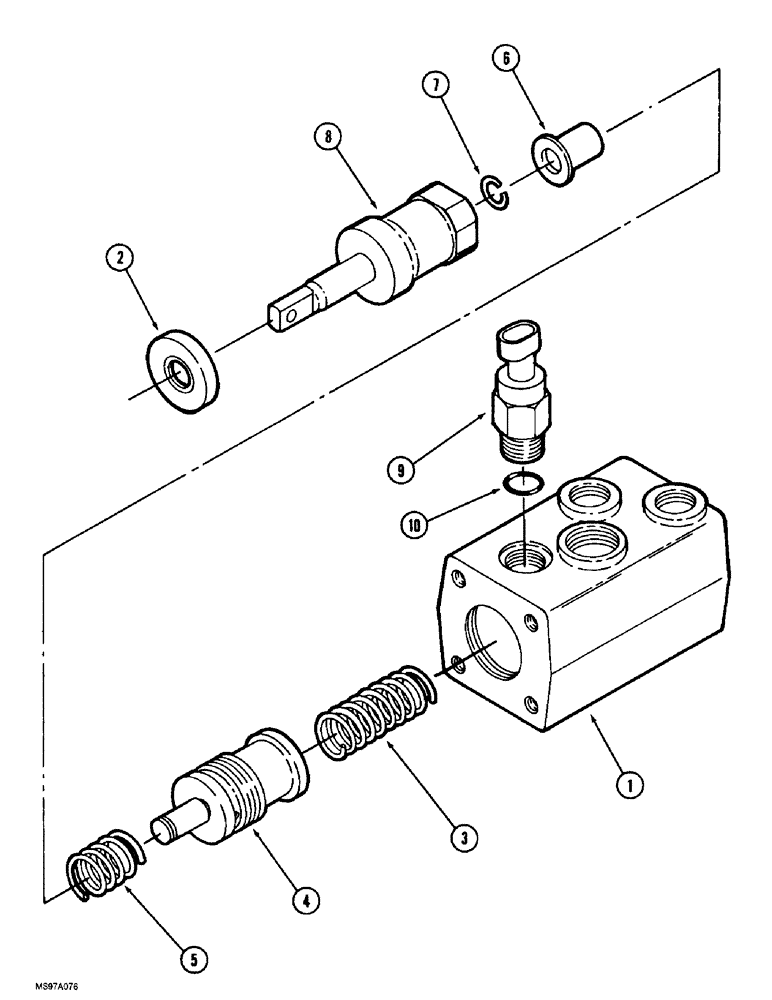

Запчасти Case IH 9370 QUADTRAC (7-004) - BRAKE VALVE ASSEMBLY, PRIOR TO P.I.N. JEE0074221 (07) - BRAKES

294236A1

VALVE

ASSEMBLY - brake master, replaces 242672A3 valve, Includes: Ref. 1 - 10

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - cylinder, brake

1шт.

2

195806A1

OIL SEAL,15.88mm ID x 38.18mm OD x 7.92mm Thk

- lip, oil

1шт.

3

185613A1

SPRING

- return

1шт.

4

229007A2

SPOOL

- valve, brake

1шт.

5

246143A1

SPRING

- feathering

1шт.

6

229005A1

SPRING

RETAINER - spring

1шт.

7

229659A1

SNAP RING

RING - retaining

1шт.

8

242675A3

STEM

ROD - brake valve

1шт.

9

252677A1

SWITCH

- plunger, sealing, Includes: Ref. 10

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING - 0.028 x 0.468 inch, class 6, switch

1шт.
