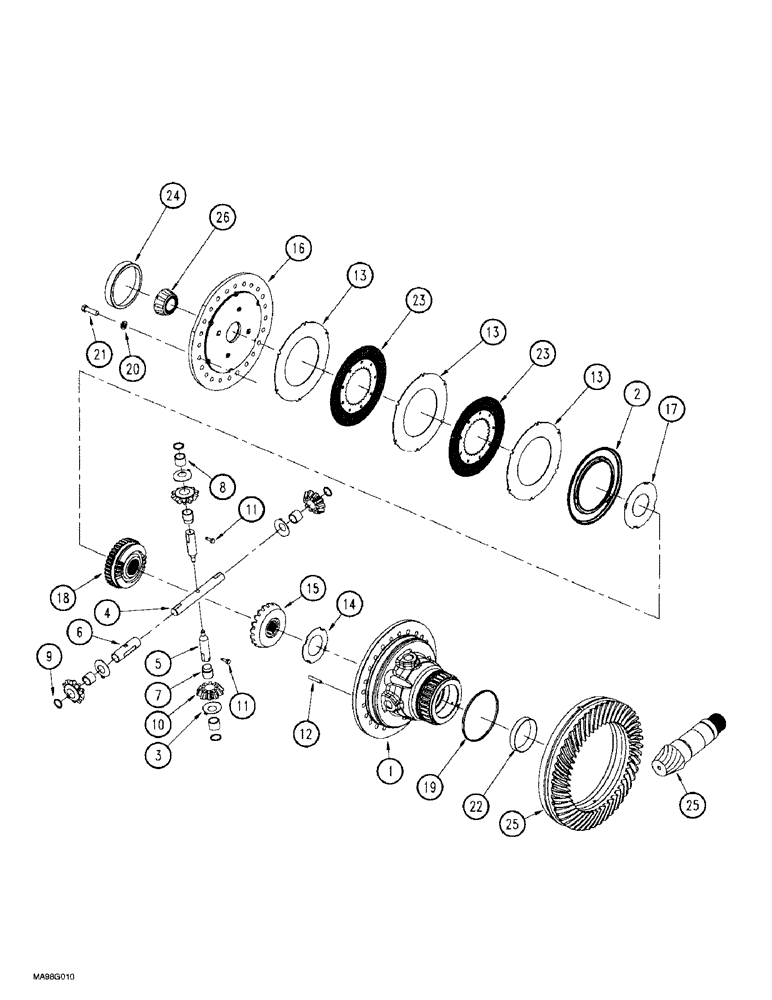

Запчасти Case IH 9370 QUADTRAC (6-092) - AXLE ASSEMBLY, DIFFERENTIAL (06) - POWER TRAIN

329957A1

AXLE HOUSING

AXLE ASSEMBLY - bar, front, replaces 237821A2 axle, prior to P.I.N. JEE0072874, parts list Figures 6-084 - 6-094, Includes: Ref. 1 - 26

1шт.

329958A1

AXLE HOUSING

AXLE ASSEMBLY - bar, rear, replaces 237823A2 axle, prior to P.I.N. JEE0072874, parts list Figures 6-084 - 6-094, Includes: Ref. 1 - 26

1шт.

302668A1

AXLE HOUSING

AXLE ASSEMBLY - bar, front, P.I.N. JEE0072874 and after, parts list Figures 6-084 - 6-094, Includes: Ref. 1 - 26

1шт.

302668A1R

REMAN-FRT AXLE wo DL

Reman-Front Axle Remanufactured - Axle - 9300 Series QT - Front - 4.5" Axle, Tractor S/N JEE0072874 & After,

1шт.

302668A1C

CORE-FRONT AXLE

Return Part Number

1шт.

302668A1R

REMAN-FRT AXLE wo DL

Reman-Front Axle Remanufactured - Axle - 9300 Series QT - Front - 4" Axle, Prior to Tractor S/N JEE0072874,

1шт.

302668A1C

CORE-FRONT AXLE

Return Part Number

1шт.

302669A1

AXLE HOUSING

AXLE ASSEMBLY - bar, rear, P.I.N. JEE0072874 and after, parts list Figures 6-084 - 6-094, Includes: Ref. 1 - 26

1шт.

302669A1R

REMAN-REAR AXLE

Remanufactured - Axle - 9300 Series QT - Rear - 4" Axle, Prior to Tractor S/N JEE0072874,

1шт.

302669A1C

CORE-REAR AXLE

Return Part Number

1шт.

302669A1R

REMAN-REAR AXLE

Remanufactured - Axle - 9300 Series QT - Rear - 4.5" Axle, Tractor S/N JEE0072874 & After,

1шт.

302669A1C

CORE-REAR AXLE

Return Part Number

1шт.

1

87471385

DIFFERENTIAL ASSY

HOUSING - differential

1шт.

Ref #1 - 9mm expansion plug is 1345887c1. MU. TSG. 8/99.

1шт.

2

1997422C1

PISTON

PISTON - lock, differential

1шт.

3

92718C2

THRUST WASHER,32.7mm ID x 70mm OD x 1.6mm Thk

WASHER - thrust

4шт.

4

92907C1

SHAFT

SHAFT - pinion, long

1шт.

5

92906C1

SHORT SHAFT

SHAFT - pinion, short

2шт.

6

1289349C1

SPACER

SPACER - pinion, long

1шт.

7

1289350C1

SPACER

SPACER - pinion, short

2шт.

8

1270697C1

NEEDLE BEARING

BEARING - needle, 28 per gear

112шт.

9

1289348C1

RING

RING - thrust

4шт.

10

92905C1

PINION

GEAR - bevel, 20 tooth

1шт.

11

1997421C1

BOLT

BOLT - pin

2шт.

12

137023A1

DOWEL

PIN - dowel, 10 x 60 mm, hardened

6шт.

13

92915C1

PLATE,192mm ID x 322mm OD x 2.74mm Thk

PLATE - separator

4шт.

14

227116A2

THRUST WASHER

WASHER - thrust

1шт.

15

1259633C3

GEAR

GEAR - bevel, differential

4шт.

16

253609A3

COVER

COVER - housing, differential

1шт.

17

227117A2

THRUST WASHER,92mm ID x 176mm OD x 1.62mm Thk

WASHER - thrust, differential lock

1шт.

18

1259634C3

PINION

GEAR - lock, bevel

1шт.

19

148939C1

SEALING RING,OD 200.60 mm

RING - seal

1шт.

20

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

WASHER - flat, 17.5 x 30 x 4 mm, hardened

24шт.

21

828-16055

BOLT,Hex, M16 x 2 x 55mm, Cl 10.9

Bolt, Hex, M16 x 55, 10.9, Full Thd

24шт.

22

253931A1

BEARING, CUP,179.99mm OD x 28.95mm W

CUP - tapered roller bearing

1шт.

23

120679C1

PLATE

PLATE - friction

3шт.

24

622337C1

BEARING CUP,129.99mm OD x 23.90mm Thk

CUP - tapered roller bearing

1шт.

302260A1

GEAR SET

KIT - bevel service, rear set, Includes: Ref. 25

1шт.

302259A2

BEVEL GEAR

KIT - bevel service, front set, Includes: Ref. 25

1шт.

25

NSS

NOT SOLD SEPARAT

GEAR - drive, bevel

1шт.

25

NSS

NOT SOLD SEPARAT

SHAFT - pinion, bevel

1шт.

26

622336C1

ROLLER BEARING,84.99mm ID x 30mm W

CONE - tapered roller bearing

1шт.
