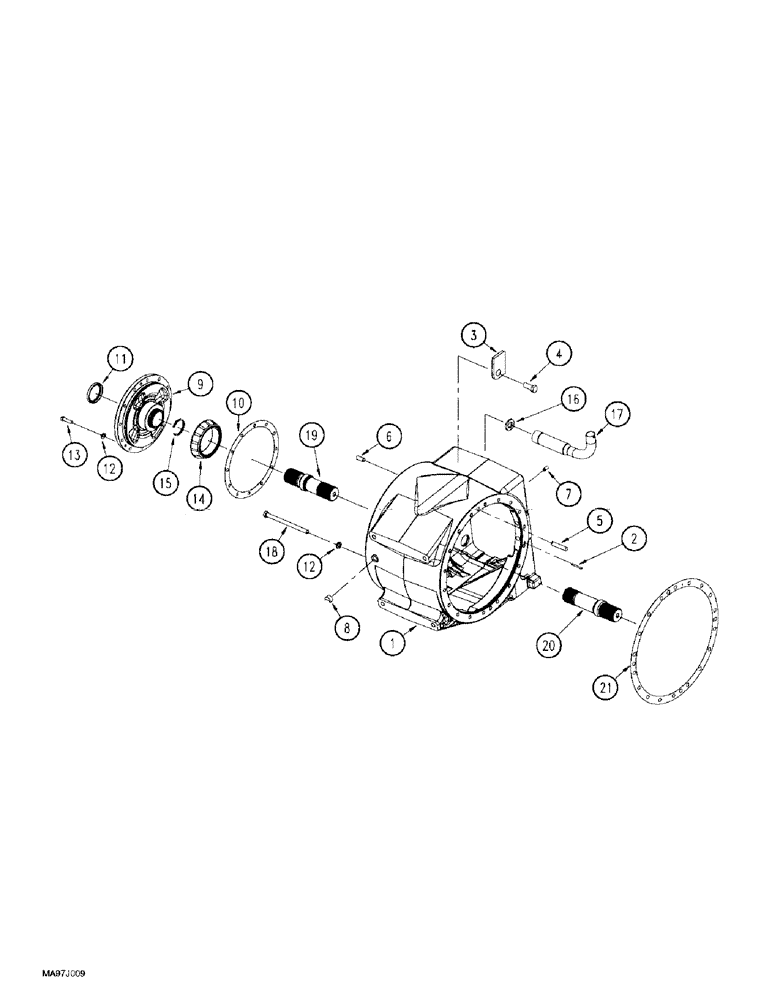

Запчасти Case IH 9370 QUADTRAC (6-090) - AXLE ASSEMBLY, HOUSING CENTER AND LEFT HAND (06) - POWER TRAIN

329957A1

AXLE HOUSING

AXLE ASSEMBLY - bar, front, replaces 237821A2 axle, prior to P.I.N. JEE0072874, parts list Figures 6-084 - 6-094, Includes: Ref. 1 - 21

1шт.

329958A1

AXLE HOUSING

AXLE ASSEMBLY - bar, rear, replaces 237823A2 axle, prior to P.I.N. JEE0072874, parts list Figures 6-084 - 6-094, Includes: Ref. 1 - 21

1шт.

302668A1

AXLE HOUSING

AXLE ASSEMBLY - bar, front, P.I.N. JEE0072874 and after, parts list Figures 6-084 - 6-094, Includes: Ref. 1 - 21

1шт.

302668A1R

REMAN-FRT AXLE wo DL

Reman-Front Axle Remanufactured - Axle - 9300 Series QT - Front - 4.5" Axle, Tractor S/N JEE0072874 & After, N.A. Only

1шт.

302668A1C

CORE-FRONT AXLE

Return Part Number

1шт.

302668A1R

REMAN-FRT AXLE wo DL

Reman-Front Axle Remanufactured - Axle - 9300 Series QT - Front - 4" Axle, Prior to Tractor S/N JEE0072874,

1шт.

302668A1C

CORE-FRONT AXLE

Return Part Number

1шт.

302669A1

AXLE HOUSING

AXLE ASSEMBLY - bar, rear, P.I.N. JEE0072874 and after, parts list Figures 6-084 - 6-094, Includes: Ref. 1 - 21

1шт.

302669A1R

REMAN-REAR AXLE

Remanufactured - Axle - 9300 Series QT - Rear - 4.5" Axle, Tractor S/N JEE0072874 & After, N.A. Only

1шт.

302669A1C

CORE-REAR AXLE

Return Part Number

1шт.

302669A1R

REMAN-REAR AXLE

Remanufactured - Axle - 9300 Series QT - Rear - 4" Axle, Prior to Tractor S/N JEE0072874

1шт.

302669A1C

CORE-REAR AXLE

Return Part Number

1шт.

1

228190A5

HOUSING

HOUSING - center axle

1шт.

2

837-6055

DOWEL,M6 x 55

PIN - dowel, 6 x 55 mm, hardened

1шт.

3

253816A1

DEFLECTOR

BAFFLE - breather

1шт.

4

628-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

BOLT, Hex, M10 x 20, 10.9, Full Thd

1шт.

5

837-16080

DOWEL,M16 x 80

PIN - dowel, 16 x 80 mm, hardened

2шт.

6

837-16040

DOWEL,M16 x 40

PIN - dowel, 16 x 40 mm, hardened

2шт.

7

837-12025

DOWEL,M12 x 25

PIN - dowel, 12 x 25 mm, hardened

2шт.

8

41-1620

PLUG,Cup, 1 1/4", Stainless

PLUG - cup, 1-1/4 inch diameter

1шт.

9

253923A1

CARRIER

CARRIER - bearing, differential, left-hand

1шт.

10

255121A1

SHIM,290mm ID x 345mm OD x 0.076mm Thk

SHIM, , Bearing, Differential, LH, Front and rear axles 0.076mm Thk

1шт.

10

255122A1

SHIM,290mm ID x 345mm OD x 0.102mm Thk

SHIM, , Bearing, Differential, LH, Front and rear axles 0.102mm Thk

1шт.

10

255123A1

SHIM,290mm ID x 345mm OD x 0.13mm Thk

SHIM, , Bearing, Differential, LH, Front and rear axles 0.127mm Thk

1шт.

10

255124A1

SHIM,290mm ID x 345mm OD x 0.5mm Thk

SHIM, , Bearing, Differential, LH, Front and rear axles 0.508mm Thk

1шт.

10

255125A1

SHIM

SHIM - bearing, differential, left-hand, front and rear axles

1шт.

11

139059C1

SEAL,70mm ID x 90mm OD x 8mm Thk

SEAL - oil

1шт.

12

1251958C1

WASHER,13mm ID x 25.40mm OD x 1.367mm, HTS

WASHER - flat, pinion

12шт.

13

828-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

BOLT - hex, 12 - 1.75 x 45 mm, class 10.9

12шт.

14

253932A1

ROLLER BEARING,119.99mm ID x 37.98mm W

CONE - tapered roller bearing

1шт.

15

139060C2

SEAL,82.6mm ID x 88.6mm OD x 4.5mm Thk

RING - seal

1шт.

16

238-5226

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

O-RING, -226, 70 Duro, 1.984" ID x .139" Thk

1шт.

17

229553A3

TUBE

TUBE - suction

1шт.

18

828-16220

BOLT,Hex, M16 x 2 x 220mm, Cl 10.9

BOLT - hex, 16 - 2.0 x 220 mm, class 10.9

2шт.

19

237082A1

GEAR SHAFT

SHAFT - pinion, short

1шт.

20

237081A1

GEAR SHAFT

SHAFT - pinion, long

1шт.

21

178553A1

SHIM,0.076mm Thk

SHIM, , Bearing, Differential, RH, Front and rear axles 0.076mm Thk

1шт.

21

178554A1

SHIM,0.101mm Thk

SHIM, , Bearing, Differential, RH, Front and rear axles 0.101mm Thk

1шт.

21

178555A1

SHIM,0.130mm Thk

SHIM, , Bearing, Differential, RH, Front and rear axles 0.130mm Thk

1шт.

21

198843A1

SHIM,0.508mm Thk

SHIM, , Bearing, Differential, RH, Front and rear axles 0.508mm Thk

1шт.

21

198852A1

SHIM

SHIM - bearing, differential, right-hand, front and rear axles

1шт.
