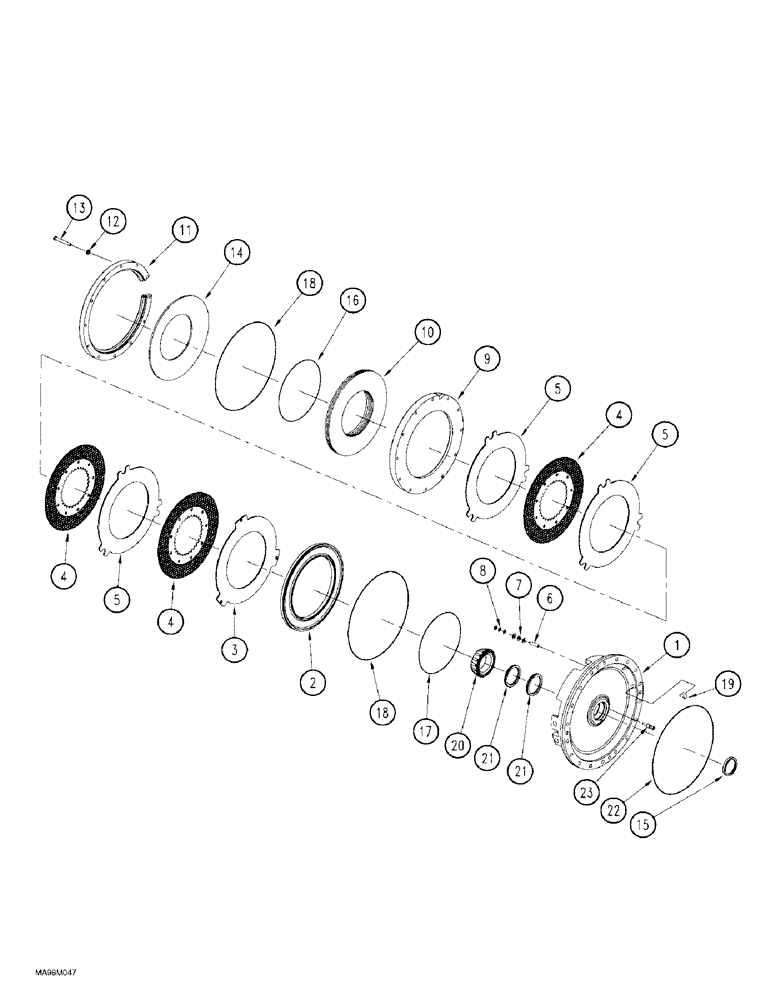

Запчасти Case IH 9370 QUADTRAC (6-088) - AXLE ASSEMBLY, CARRIER RIGHT HAND SIDE AND BRAKES (06) - POWER TRAIN

329957A1

AXLE HOUSING

AXLE ASSEMBLY - bar, front, replaces 237821A2 axle, prior to P.I.N. JEE0072874, parts list Figures 6-084 - 6-094, Includes: Ref. 1 - 23

1шт.

329958A1

AXLE HOUSING

AXLE ASSEMBLY - bar, rear, replaces 237823A2 axle, prior to P.I.N. JEE0072874, parts list Figures 6-084 - 6-094, Includes: Ref. 1 - 23

1шт.

302668A1

AXLE HOUSING

AXLE ASSEMBLY - bar, front, P.I.N. JEE0072874 and after, parts list Figures 6-084 - 6-094, Includes: Ref. 1 - 23

1шт.

302668A1R

REMAN-FRT AXLE wo DL

Reman-Front Axle Remanufactured - Axle - 9300 Series QT - Front - 4" Axle, Prior to Tractor S/N JEE0072874,

1шт.

302668A1C

CORE-FRONT AXLE

Return Part Number

1шт.

302668A1R

REMAN-FRT AXLE wo DL

Reman-Front Axle Remanufactured - Axle - 9300 Series QT - Front - 4.5" Axle, Tractor S/N JEE0072874 & After, N.A. Only

1шт.

302668A1C

CORE-FRONT AXLE

Return Part Number

1шт.

302669A1

AXLE HOUSING

AXLE ASSEMBLY - bar, rear, P.I.N. JEE0072874 and after, parts list Figures 6-084 - 6-094, Includes: Ref. 1 - 23

1шт.

302669A1R

REMAN-REAR AXLE

Remanufactured - Axle - 9300 Series QT - Rear - 4" Axle, Prior to Tractor S/N JEE0072874,

1шт.

302669A1C

CORE-REAR AXLE

Return Part Number

1шт.

302669A1R

REMAN-REAR AXLE

Remanufactured - Axle - 9300 Series QT - Rear - 4.5" Axle, Tractor S/N JEE0072874 & After,

1шт.

302669A1C

CORE-REAR AXLE

Return Part Number

1шт.

1

226251A5

CARRIER

CARRIER - bearing, differential, right-hand

1шт.

2

178565A2

PISTON

PISTON - brake, service

1шт.

3

228194A3

PLATE

PLATE - return

1шт.

4

228192A2

BRAKE DISC

DISC, BRAKE PLATE - friction

3шт.

5

228193A1

PLATE

PLATE - separator

3шт.

235507A5

ADJUSTER

ADJUSTER ASSEMBLY - brake, Includes: Ref. 6 - 8

3шт.

6

NSS

NOT SOLD SEPARAT

PIN - dowel, 1/2 x 2 inch, hardened

1шт.

7

1342928C1

BELLEVILLE WASHER

WASHER - thrust

1шт.

8

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

9

226252A2

PLATE

PLATE - backing

1шт.

10

226318A2

PISTON

PISTON - parking brake

1шт.

11

226254A4

RING

RING - backup, spring

1шт.

12

896-12012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

WASHER, M12 x 24.5 x 3, HT

12шт.

13

828-12090

BOLT,Hex, M12 x 1.75 x 90mm, Cl 10.9

BOLT - hex, 12 - 1.75 x 90 mm, class 10.9

12шт.

14

226320A1

BELLEVILLE WASHER,225mm ID x 415mm OD x 7.799mm Thk

SPRING - parking brake

1шт.

15

139059C1

SEAL,70mm ID x 90mm OD x 8mm Thk

SEAL - oil

1шт.

16

238-7278

O-RING,0.139" Thk x 11.984" ID, -278, Cl 7, 75 Duro

O-RING, , Park brake piston, inner -277, Cl 7, 11.984" ID x .139" Thk

1шт.

17

238-7277

O-RING,0.139" Thk x 11.484" ID, -277, Cl 7, 75 Duro

O-RING, , Service brake piston -277, Cl 7, 11.484" ID x .139" Thk

1шт.

18

238-7282

O-RING,0.139" Thk x 15.96" ID, -282, Cl 7, 75 Duro

O-RING, , Service and park brake piston, Outer -282, Cl 7, 15.955" ID x .139" Thk

2шт.

19

641-3020

PLUG,M20, Conical

PLUG - cup, 20 mm, differential lock

4шт.

20

253932A1

ROLLER BEARING,119.99mm ID x 37.98mm W

CONE - tapered roller bearing

1шт.

21

247881A1

SEALING RING,Locking, 124mm ID x 131.6mm OD x 5.8mm Thk

SEAL - rotating, differential lock

2шт.

22

238-5387

O-RING,0.21" Thk x 17.955" ID, -387, Cl 5, 75 Duro

O-RING, -387, 70 Duro, 17.955" ID x .210" Thk

1шт.

23

187516A1

PLUG,Expansion, 12mm

PLUG - expansion

1шт.
