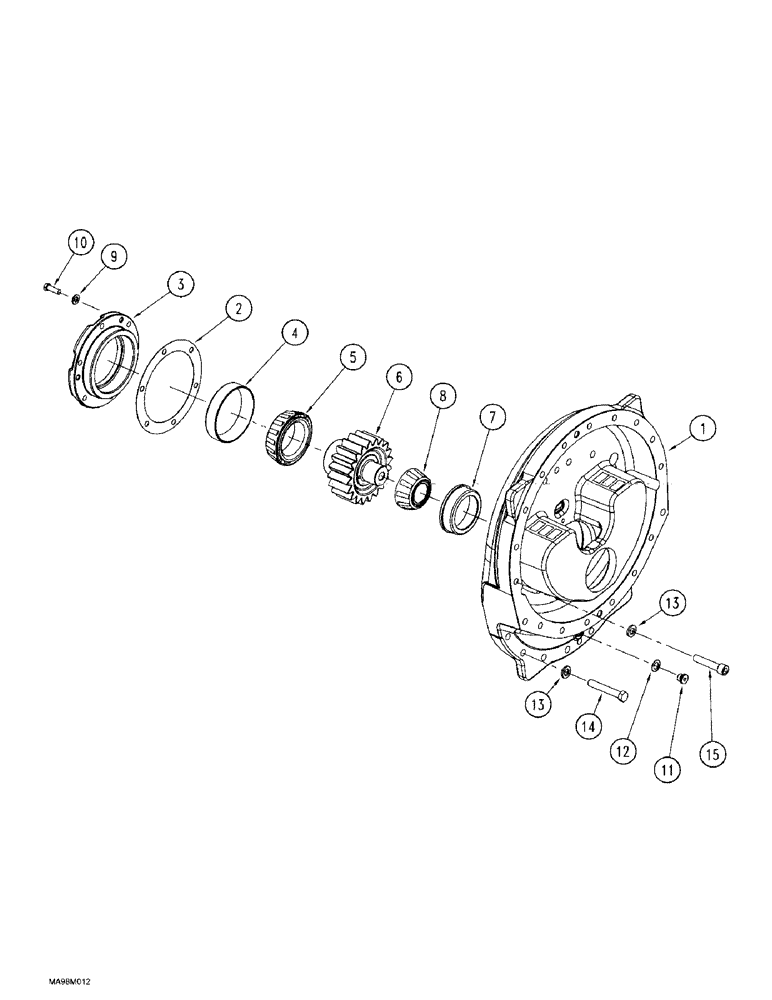

Запчасти Case IH 9370 QUADTRAC (6-086) - AXLE ASSEMBLY, TEARDROP (06) - POWER TRAIN

329957A1

AXLE HOUSING

AXLE ASSEMBLY - bar, front, replaces 237821A2 axle, prior to P.I.N. JEE0072874, parts list Figures 6-084 - 6-094, Includes: Ref. 1 - 17

1шт.

329958A1

AXLE HOUSING

AXLE ASSEMBLY - bar, rear, replaces 237823A2 axle, prior to P.I.N. JEE0072874, parts list Figures 6-084 - 6-094, Includes: Ref. 1 - 17

1шт.

302668A1

AXLE HOUSING

AXLE ASSEMBLY - bar, front, P.I.N. JEE0072874 and after, parts list Figures 6-084 - 6-094, Includes: Ref. 1 - 17

1шт.

302668A1R

REMAN-FRT AXLE wo DL

Reman-Front Axle Remanufactured - Axle - 9300 Series QT - Front - 4" Axle, Prior to Tractor S/N JEE0072874,

1шт.

302668A1C

CORE-FRONT AXLE

Return Part Number

1шт.

302668A1R

REMAN-FRT AXLE wo DL

Reman-Front Axle Remanufactured - Axle - 9300 Series QT - Front - 4.5" Axle, Tractor S/N JEE0072874 & After,

1шт.

302668A1C

CORE-FRONT AXLE

Return Part Number

1шт.

302669A1R

REMAN-REAR AXLE

Reman For New 302668A1

1шт.

302669A1C

CORE-REAR AXLE

Return Part Number

1шт.

302669A1

AXLE HOUSING

AXLE ASSEMBLY - bar, rear, P.I.N. JEE0072874 and after, parts list Figures 6-084 - 6-094, Includes: Ref. 1 - 17

1шт.

302669A1R

REMAN-REAR AXLE

Remanufactured - AXLE - 9300 Series QT - Rear - 4" Axle, Prior to Tractor S/N JEE0072874

1шт.

302669A1C

CORE-REAR AXLE

Return Part Number

1шт.

302669A1R

REMAN-REAR AXLE

Remanufactured - AXLE - 9300 Series QT - Rear - 4.5" Axle, Tractor S/N JEE0072874 & After,

1шт.

302669A1C

CORE-REAR AXLE

Return Part Number

1шт.

1

255053A3

HOUSING

HOUSING - bearing carrier, with magnets, replaces 255053A1 housing

1шт.

Part of teardrop service kit P/N 256185A3

1шт.

2

246260A1

SHIM

SHIM - bearing, inner, front and rear axles

1шт.

Part of teardrop service kit P/N 256185A3

1шт.

2

246261A1

SHIM

SHIM - bearing, inner, front and rear axles

1шт.

Part of teardrop service kit P/N 256185A3

1шт.

2

246262A1

SHIM

SHIM - bearing, inner, front and rear axles

1шт.

Part of teardrop service kit P/N 256185A3

1шт.

2

246263A1

SHIM

SHIM - bearing, inner, front and rear axles

1шт.

Part of teardrop service kit P/N 256185A3

1шт.

2

246265A1

SHIM

SHIM - bearing, inner, front and rear axles

1шт.

Part of teardrop service kit P/N 256185A3

1шт.

3

239437A1

CARRIER

CARRIER - bearing

1шт.

Part of teardrop service kit P/N 256185A3

1шт.

4

A50529

BEARING CUP,147.03mm OD x 32.5mm W

CUP - tapered roller bearing

1шт.

Part of teardrop service kit P/N 256185A3

1шт.

5

A50532

ROLLER BEARING,89.97mm ID x 40.2mm W

CONE - tapered roller bearing

1шт.

Part of teardrop service kit P/N 256185A3

1шт.

6

237079A5

PINION

GEAR - pinion

1шт.

Part of teardrop service kit P/N 256185A3

1шт.

7

248122A1

BEARING, CUP,114.31mm OD x 34.82mm W

CUP - tapered roller bearing

1шт.

Part of teardrop service kit P/N 256185A3

1шт.

8

248123A1

TAPERED BEARING,50.81mm ID x 44.36mm W

CONE - tapered roller bearing

1шт.

Part of teardrop service kit P/N 256185A3

1шт.

9

896-12012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

WASHER, M12 x 24.5 x 3, HT

6шт.

Part of teardrop service kit P/N 256185A3

1шт.

10

628-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

BOLT, Hex, M12 x 40, 10.9, Full Thd

6шт.

Part of teardrop service kit P/N 256185A3

1шт.

11

221578A1

PLUG,M18 x 1.5 ORB

PLUG, , Includes Ref. 12 Hex Soc, M18 x 1.5, ORB

1шт.

12

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

O-RING, Cl 6, 15.3MM ID x 2.2 Thk

1шт.

13

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

WASHER - flat, 17.5 x 30 x 4 mm, hardened

68шт.

14

828-16100

BOLT,Hex, M16 x 2 x 100mm, Cl 10.9

BOLT - hex, 16 - 2.0 x 100 mm, class 10.9, Mounting RH

44шт.

15

863-16080

HEX SOC SCREW,M16 x 80mm, Cl 12.9

BOLT - hex socket, 16 - 2.0 x 80 mm, class 12.9, mounting right-hand

4шт.

16

828-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

BOLT, , Mounting LH, Not shown Hex, M16 x 70, 10.9

12шт.

17

863-16050

HEX SOC SCREW,M16 x 50mm, Cl 12.9

SCREW - hex socket, 16 - 2.0 x 50 mm, class 12.9, Mounting left-hand, not shown

4шт.

256185A3

HOUSING

KIT - service, teardrop, Includes: Ref. 1 - 10

1шт.
