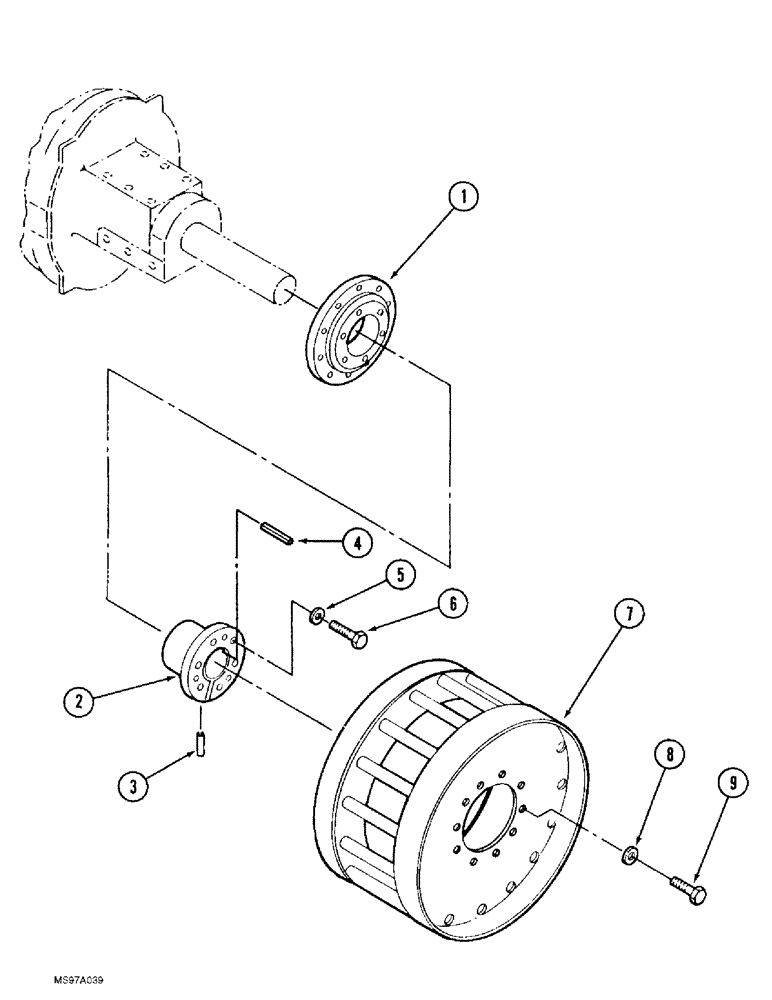

Запчасти Case IH 9370 QUADTRAC (6-076) - DRIVE WHEEL (06) - POWER TRAIN

1

185605A2

HUB

- axle, rear

4шт.

2

223769A1

HUB

- axle, rear, 102 mm (4 inch), prior to P.I.N. JEE0072874

4шт.

2

185606A1

HUB

BUSHING - axle, rear, P.I.N. JEE0072874 and after

4шт.

3

38-11608

LOCK PIN,1/4" x 1/2", Slotted

PIN, LOCK, 1/4" x 1/2", Slotted

4шт.

4

A63219

KEY

- axle, 3/4 x 4.88 inch

4шт.

5

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

- flat, 22 x 37 x 4 mm, hardened

24шт.

6

627-20110

BOLT,Hex, M20 x 2.5 x 110mm, Cl 10.9, Full Thd

- hex, full threads, 20 - 2.5 x 110 mm, class 10.9

24шт.

7

199821A2

WHEEL,385mm ID x 822mm OD x 442.1mm W

- drive

4шт.

7

199821A2R

REMAN-WHEEL ROLLER

Drive

4шт.

7

199821A2C

CORE-WHEEL ROLLER

Return Part Number

4шт.

8

496-31094

WASHER,15/16" x 1 3/4" x .219", HDN

40шт.

9

827-22090

BOLT,Hex, M22 x 2.5 x 90mm, Cl 10.9

- hex, 22 - 2.5 x 90 mm, class 10.9

40шт.

Ref 9 & 10: Spec for torque has changed. See NTR SB 012 99.

1шт.

10

228273A1

BOLT,Hex, M20 x 2.5 x 110mm, Cl 10.9

BOLT, , Special, Hub removal, Not shown Hex, M20 x 110, 10.9

5шт.

REF: 10 PER ECN F990718 - QTY CHANGED FROM 5 TO 3 . NAPO TECH. NOTE

1шт.
