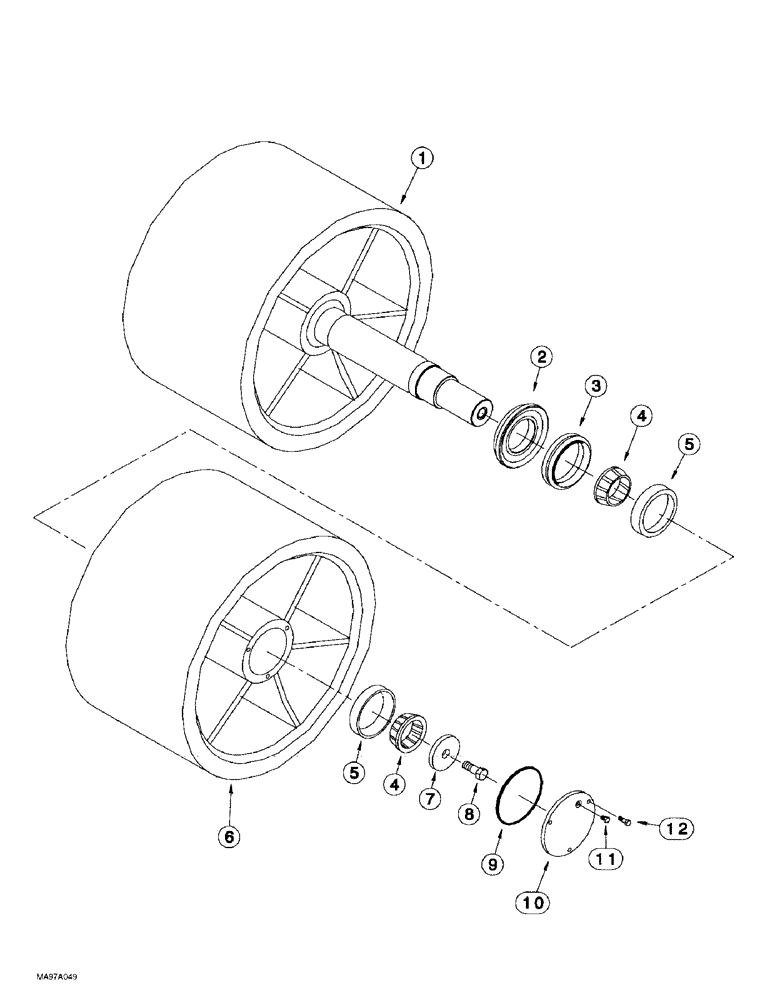

Запчасти Case IH 9370 QUADTRAC (6-074) - WHEEL ROLLER (06) - POWER TRAIN

231764A3

ROLLER, TRACK

WHEEL ASSEMBLY - roller, Includes: Ref. 1 - 12

12шт.

1

251349A1

SHAFT

- roller wheel

1шт.

2

297726A1

CUP

- seal, replaces 251354A1 cup

2шт.

3

254453A1

SEAL

- roller

2шт.

4

A61447

ROLLER BEARING,2.1651" ID x 0.9045" Thk

CONE - tapered roller bearing, 2-1/16 inch ID

4шт.

5

625743C1

BEARING CUP,90mm OD x 18.5mm W

CUP - tapered roller bearing, 3-35/64 inch OD

4шт.

6

251343A2

WHEEL

- roller

2шт.

251343A3R

REMAN-WHEEL ROLLER

QUADTRAC® (1/97-12/99), Reman for New PN 251343A2

2шт.

251343A3C

CORE-WHEEL ROLLER

Return Number

1шт.

7

70-6520T1

WASHER

- hardened

2шт.

8

627-20040

BOLT,Hex, M20 x 2.5 x 40mm, Cl 10.9, Full Thd

- hex, full threads, 20 - 2.5 x 40 mm, class 10.9

2шт.

9

238-5237

O-RING,0.139" Thk x 3.359" ID, -237, Cl 5, 75 Duro

GASKET - cover (Replaces 218-5237)

2шт.

10

278895A1

COVER

- wheel, replaces 278871A1 cover

2шт.

11

76349

PLUG,9/16" - 18 ORB

2шт.

12

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, full threads, 8 - 1.25 x 20 mm

3шт.
