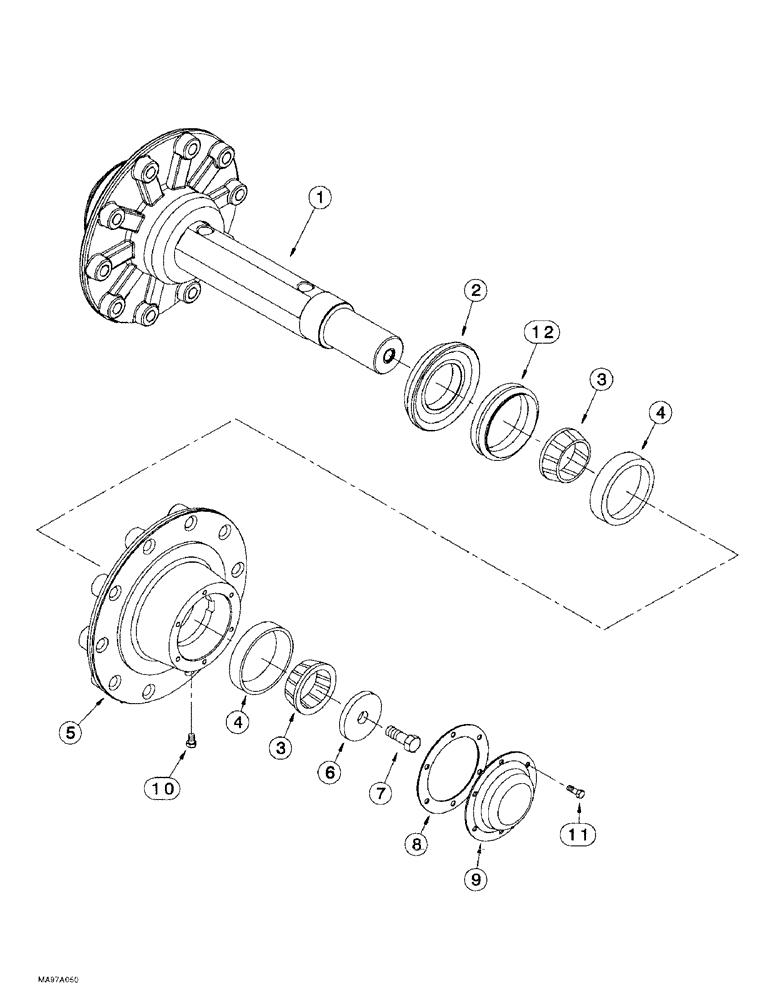

Запчасти Case IH 9370 QUADTRAC (6-072) - AXLE ASSEMBLY, REAR IDLER (06) - POWER TRAIN

195108A2

AXLE

ASSEMBLY - idler, rear, Includes: Ref. 1 - 12

1шт.

1

251351A1

SHAFT

- idler, rear

1шт.

2

297728A1

CUP

- seal holder, replaces 251355A1 cup

2шт.

3

257093A1

BEARING, CUP,63.5 mm ID x 30.018 mm

CONE - tapered roller bearing

4шт.

4

257092A1

BEARING, CUP,112.712 mm OD x 23.812 mm

CUP - tapered roller bearing

4шт.

5

251346A1

HUB

- idler wheel

2шт.

6

70-6520T1

WASHER

- hardened

2шт.

7

627-20040

BOLT,Hex, M20 x 2.5 x 40mm, Cl 10.9, Full Thd

- hex, full threads, 20 - 2.5 x 40 mm, class 10.9

2шт.

8

70-6532T1

GASKET

- hub

2шт.

9

70-6530T1

COVER

- hub

2шт.

10

76349

PLUG,9/16" - 18 ORB

2шт.

11

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 16 mm

12шт.

12

254454A1

SEAL

- idler

4шт.
