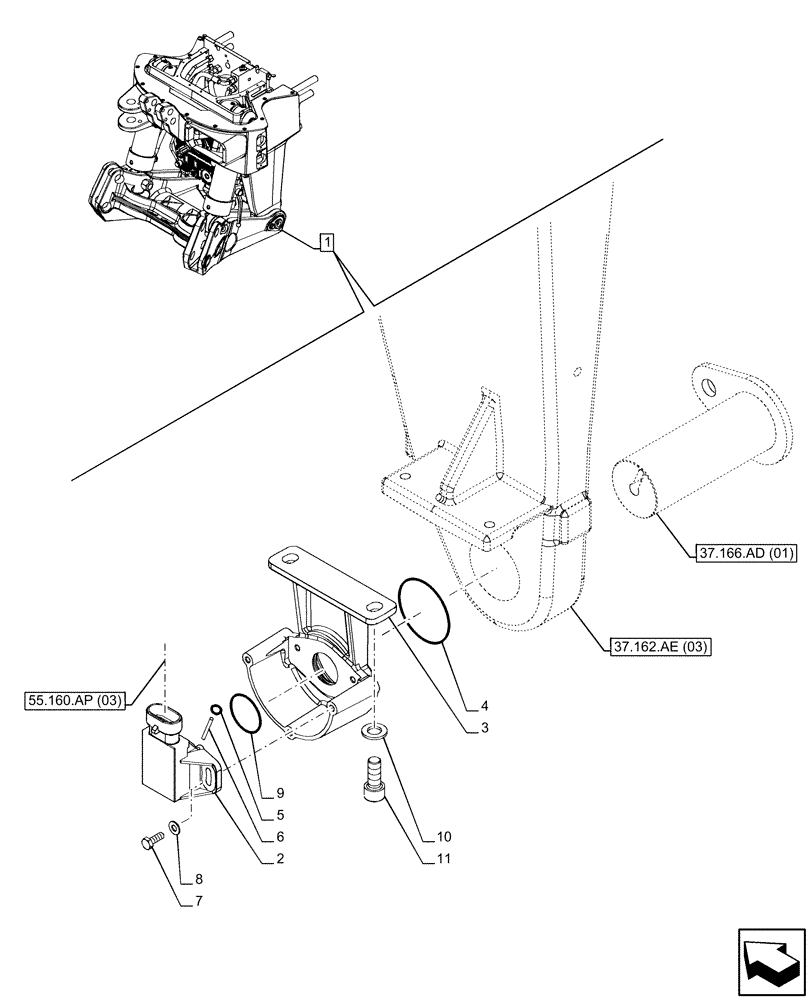

Запчасти Case IH PUMA 220 (55.160.AP[04]) - VAR - 758091, 758245 - 3 POINT HITCH, FRONT, FRONT PTO, W/O COUPLING, POTENTIOMETER (55) - ELECTRICAL SYSTEMS

1

84474238

HITCH

ASSY, Incl 2 - 11

1шт.

See also Figure 31.142.AF (01), 31.146.AC (03), 35.160.AF (02), 35.160.AK (03), 35.162.AB (02), 35.162.AG (02), 37.162.AE (03), 37.162.AE (04), 37.166.AD (01)

1шт.

2

84479305

SENSOR

1шт.

3

84479284

SUPPORT

1шт.

4

84482233

O-RING

40 x 3

1шт.

5

84482300

O-RING,1.5 Thk x 2mm ID, Cl 5

2mm ID x 1.5 W

1шт.

6

84485824

ROLL PIN

1шт.

7

87015756

BOLT,Hex, M4 x 12mm, Cl 8.8, Full Thd

2шт.

8

9824840

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

2шт.

9

84482290

O-RING

22mm ID x 1.5 W

1шт.

10

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

11

120228

HEX SOC SCREW,M8 x 20mm, Cl 8.8, Full Thd

2шт.
