Запчасти Case IH PUMA 220 (55.100.DO[08]) - FUSE BOX (55) - ELECTRICAL SYSTEMS

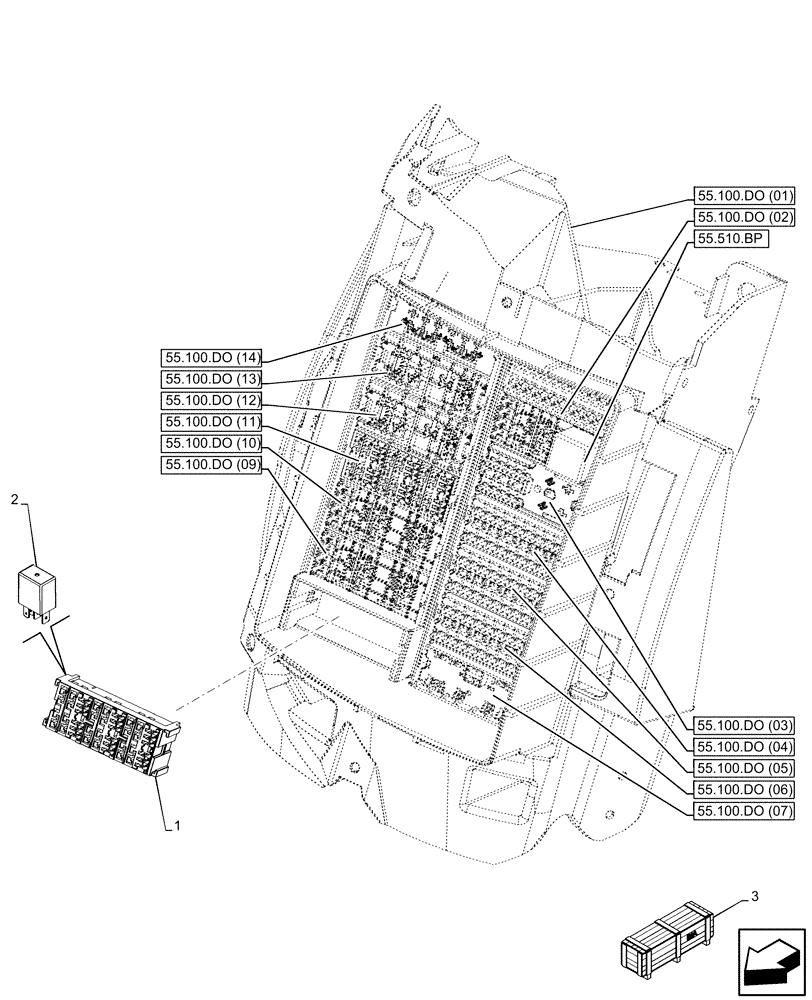

![Схема запчастей Case IH PUMA 220 - (55.100.DO[08]) - FUSE BOX (55) - ELECTRICAL SYSTEMS](https://partsell.ru/storage/images/caseih/5356799.png)
55.100.do (05)
1
55.100.do (01)
3
2
55.100.do (10)
55.100.do (02)
55.100.do (12)
55.100.do (14)
55.510.bp
55.100.do (11)
55.100.do (13)
55.100.do (03)
55.100.do (09)
55.100.do (04)
55.100.do (06)
55.100.do (07)
№
Артикул
Название
Примечание
Количество
1
84526304
MODULE
1шт.
2
84543528
RELAY,12V, 20A, Micro
2шт.
3
710414134
DIA KIT, TRACTOR
Trailer Brake Valve, Incl 2
1шт.
To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown
1шт.
3
710560044
DIA KIT, TRACTOR
Electronic Mid Mount Kit, 2 Valves, Incl 2
1шт.
To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown
1шт.
Выбрано товаров: 6
