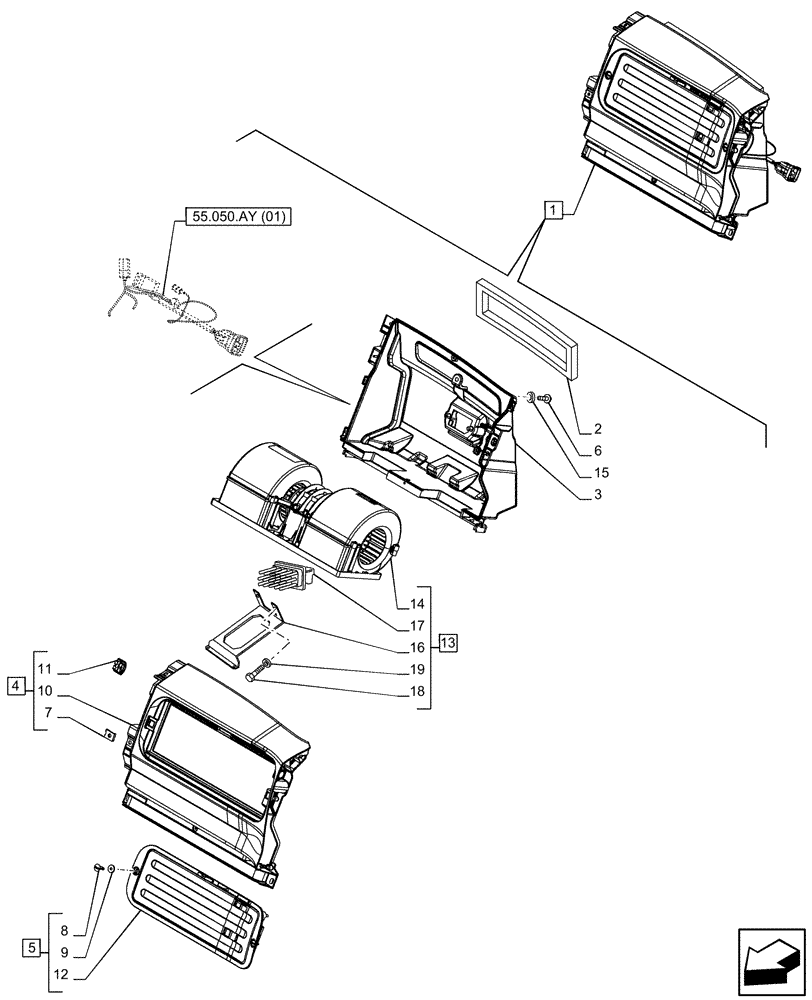

Запчасти Case IH PUMA 220 (55.050.AS[02]) - VAR - 758265, 758666, 758667, 759265 - AIR CONDITIONER, WITH ATC, BLOWER, COMPONENTS (55) - ELECTRICAL SYSTEMS

1

47800241

BLOWER,12V

ASSY, Incl 2 -19

1шт.

See also Blower Components in Figure 55.050.AY (01), 55.050.AT (01)

1шт.

2

82028290

FOAM INSULATION

1шт.

3

87651400

COVER

1шт.

4

87485334

HOUSING

ASSY, Incl 7, 10, 11

1шт.

5

82027045

VENT

ASSY, Incl 8, 9, 12

1шт.

6

13297614

SCREW,M4 x 16mm

8шт.

7

87567755

SPRING NUT,M5

2шт.

8

82028291

STUD

2шт.

9

82028955

SEALING WASHER,4.25mm ID x 13.5mm OD x 1.6mm Thk

2шт.

10

NSS

NOT SOLD SEPARAT

Housing, Incl in 4

1шт.

11

87486306

FASTENER

2шт.

12

NSS

NOT SOLD SEPARAT

Grille, Incl in 5

1шт.

13

47804068

BLOWER

ASSY, Incl 14, 16 - 19

1шт.

14

87663947

BLOWER,12 V

1шт.

15

84320222

GROMMET,3.75mm ID x 8.5mm OD

1шт.

16

87754732

MOUNTING PARTS

1шт.

17

84342778

DRIVER

1шт.

18

83990199

SCREW,Pan, M6 x 20mm, Cl 4.8

2шт.

19

14496201

WASHER,M4 x 9

2шт.
