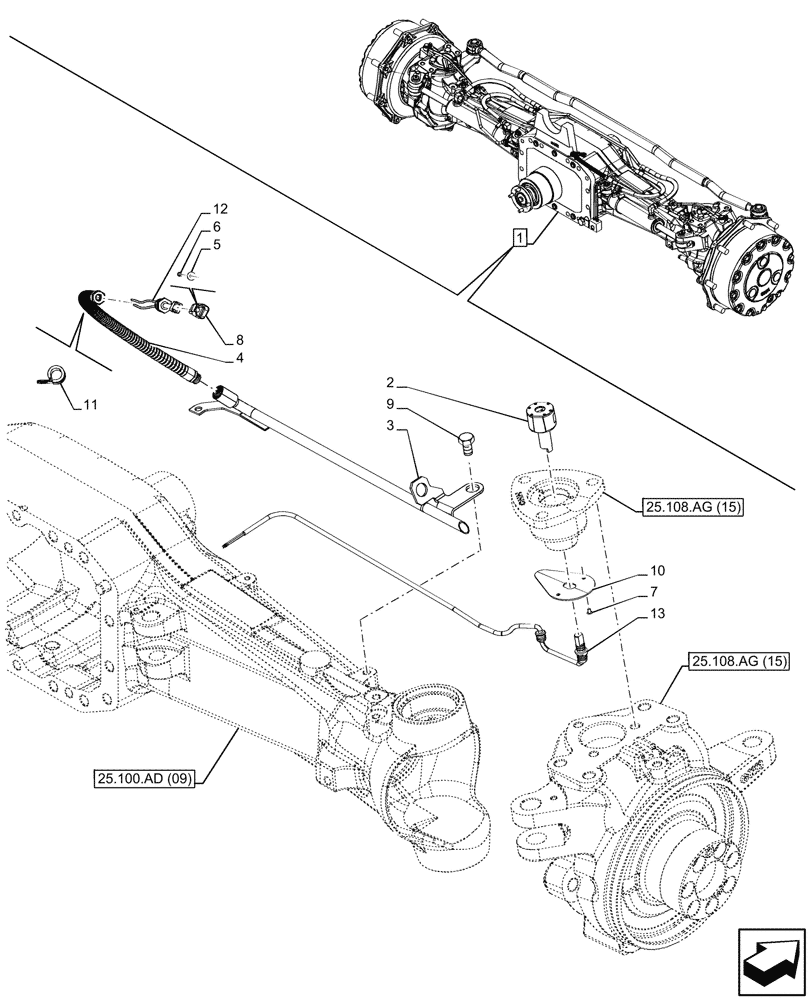

Запчасти Case IH PUMA 220 (55.047.AA[09]) - VAR - 758049 - SUSPENDED FRONT AXLE, W/FRONT BRAKES, STEERING SENSOR (55) - ELECTRICAL SYSTEMS

1

84381243

LIVE FRONT AXLE

ASSY, 4WD Suspended W/ Brake, Incl 2 - 13

1шт.

See Axle Components also in Figure 25.100.AD (09), 25.102.AD (10), 25.108.AA (08), 25.108.AB (03), 25.108.AC (08), 25.108.AG (15), 25.108.AG (16), 25.108.AN (08), 33.204.AB (03), 33.204.AD (03), 33.204.AG (05), 41.106.AG (09), 41.216.AN (10), 41.216.AV (16)

1шт.

2

87627614

SENSOR

Steering Position

1шт.

3

87717578

HYD TUBE,12 mm OD x 408, 51.7 mm L

1шт.

4

87619680

FLEXIBLE SHEATH

1шт.

5

82918451

SPACER

1шт.

6

82918419

PLUG

1шт.

7

14641591

RIVET,Pop, Truss Hd, M3.20 x 12mm, AL, PLN

2шт.

8

82918426

ELEC CONNECTOR,Female

1шт.

9

15540324

SCREW,Hex, M12 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

10

87315098

SHIELD

1шт.

11

10441490

COLLAR,14mm, Coat, 7mm Bolt Hole, P Type

1шт.

12

87619627

HOSE PROTECTION

1шт.

13

87635259

ELEC CONNECTOR,Male

1шт.
