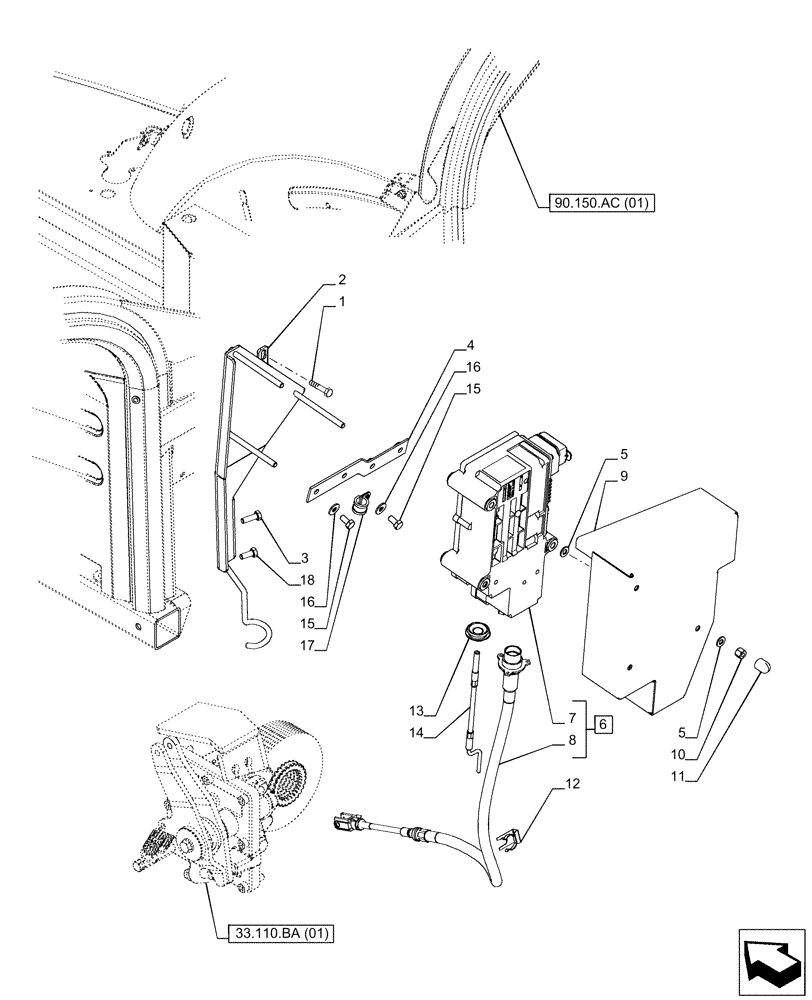

Запчасти Case IH PUMA 220 (55.031.AB[01]) - VAR - 391148, 758034 - EMERGENCY BRAKE, ELECTRONIC CONTROL UNIT (55) - ELECTRICAL SYSTEMS

1

43130

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

1шт.

2

84179407

BRACKET

Cab, Electric Park Lock

1шт.

3

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

1шт.

4

87470673

BRACKET

1шт.

5

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

6шт.

6

47751590

CONTROL UNIT

Emergency Hand Brake and EPL, ASSY, Incl 7, 8

1шт.

6

47751590R

REMAN ELECT CONTROL

Emergency Hand Brake and EPL, ASSY, Incl 7, 8

1шт.

6

47751590C

CORE-ELECTRONIC CONT

Return Number

1шт.

7

NSS

NOT SOLD SEPARAT

ECU, Incl in 6

1шт.

8

47751747

CABLE

EPL

1шт.

9

87741153

COVER

Electric Park Lock Cover

1шт.

10

87597953

NUT,M8, 1.25 Pitch, 10.6mm High, Cl 8, ZND

3шт.

11

5132136

CAP COVER,M8

M8

3шт.

12

84223172

SPRING CLIP,1.1mm Thk

EPL

1шт.

13

81862738

PLUG,M38 x 28 x 5mm

Body Floor Blank

1шт.

14

84123734

TOOL

1шт.

15

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

2шт.

16

12646701

WASHER,8.15mm ID x 20mm OD x 2mm Thk

2шт.

17

10450690

CLAMP,20mm, Coat, 9mm Bolt Hole, P Type

Closed 20mm

1шт.

18

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.
