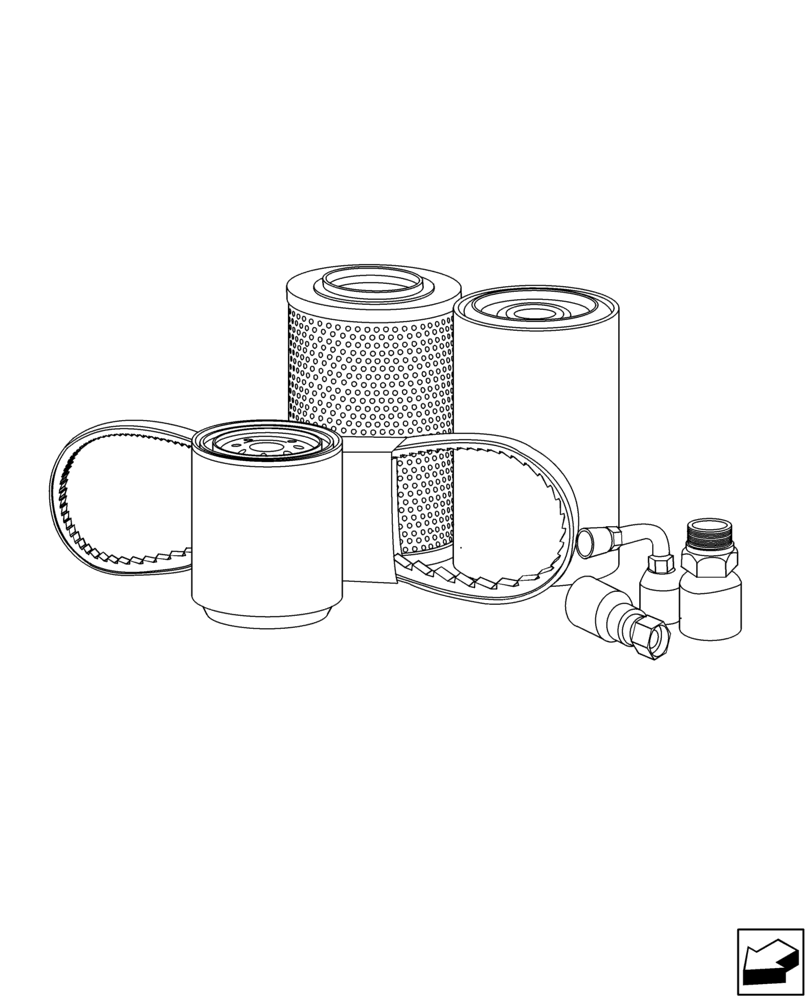

Запчасти Case IH PUMA 220 (05.100.01) - INITIAL STOCKING LIST (LIST A) (05) - SERVICE & MAINTENANCE

1

47364243

FILTER

Main, Denox Supply Module

1шт.

2

87726675

CAB FILTER,Fresh Air, 550mm x 100mm x 64mm, Paper

Fresh Air

2шт.

3

87726699

CAB FILTER,Fresh Air, 380mm x 130mm x 49mm, Paper

Recirculation

1шт.

4

87708150

HYDRAULIC OIL FILTER,Filter & Seal

Suction, 32 Micron, Years: -09-MAR-16

1шт.

4

47715391

HYDRAULIC OIL FILTER,148mm OD x 268mm L

Suction, 32 Micron, Start Year: 09-MAR-16

1шт.

5

84228488

ENGINE OIL FILTER,95mm OD x 171mm L, M27x2-6H

1шт.

6

84226263

HYDRAULIC OIL FILTER,116.8mm OD x 295.4mm L, 1" 3/8-12UNF

on CCLS Hydraulic Pump, 295.4mm

1шт.

Valid for Hydraulic Pump 120 L/Min Var. 391161

1шт.

6

47131178

HYDRAULIC OIL FILTER

on CCLS Hydraulic Pump, 295mm

1шт.

Valid for Hydraulic Pump 150 L/Min Var. 758056

1шт.

7

47509565

FILTER

Water Separator, on Engine

1шт.

8

84412164

FUEL FILTER,94mm OD x 192mm L, M20 x 1.5, 10 Microns

Main, on Engine

1шт.

9

87517153

AIR FILTER,142.3mm ID x 150.9mm OD x 258mm L

Safety, on Air Cleaner

1шт.

10

87517154

AIR FILTER,281.6mm ID x 284.4mm OD x 319mm L

Main, on Air Cleaner

1шт.

11

87638772

CARTRIDGE,165mm L

on Pneumatic Trailer Brakes Air Dryer, 165mm

1шт.

12

47467859

BELT

2152mm L, Main

1шт.

13

87300105

V-BELT,14.04 mm W x 968.00 mm L

for Pneumatic Trailer Brakes Compressor

1шт.
