Запчасти Case IH PUMA 220 (35.322.AY[09]) - VAR - 338397, 337426, 337428, 337429, 337430, 337431, 337432 - TRANSMISSION, LOW PRESSURE, LINE, ANTILOCK BRAKING SYSTEM (ABS) (35) - HYDRAULIC SYSTEMS

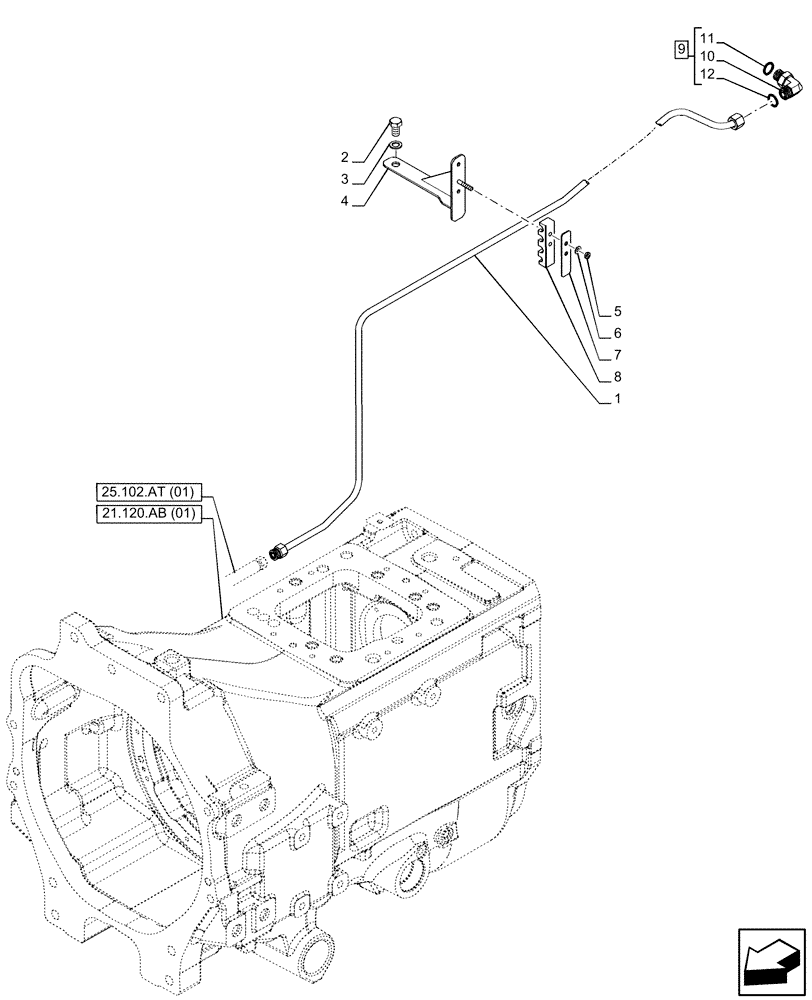

Схема запчастей Case IH PUMA 220 - (35.322.AY[09]) - VAR - 338397, 337426, 337428, 337429, 337430, 337431, 337432 - TRANSMISSION, LOW PRESSURE, LINE, ANTILOCK BRAKING SYSTEM (ABS) (35) - HYDRAULIC SYSTEMS
21.120.ab (01)
12
2
5
6
9
8
10
11
1
3
4
7
25.102.at (01)

Артикул

Название

Примечание

Количество

1

47366080

PIPE

Front Differential Lock

1шт.

2

86637972

BOLT,Hex, M12 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

3

13507421

WASHER,12.2mm ID x 20mm OD x 2mm Thk

1шт.

4

47367522

BRACKET

1шт.

5

10725914

LOCK NUT,M6 x 1, Cl 04

2шт.

6

13550201

WASHER,6.15mm ID x 13mm OD x 1mm Thk

2шт.

7

47593945

PLATE

1шт.

8

47593944

PIPE CLAMP

1шт.

9

86579687

ELBOW,90 Degree, 11/16"-16 x M16 x 1.5 ORB

ASSY, Incl 10 - 12

1шт.

10

NSS

NOT SOLD SEPARAT

Elbow, Incl in 9

1шт.

11

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

1шт.

12

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

Выбрано товаров: 12
