(35.322.AY[05]) - VAR - 337426, 337428, 337429, 337430, 337431, 338397, 337432, 391137, 758017, 758018, 758019, 758020, 758021, 759052 - TRANSMISSION, LOW PRESSURE, LINE

Запчасти Case IH PUMA 220 (35.322.AY[05]) - VAR - 337426, 337428, 337429, 337430, 337431, 338397, 337432, 391137, 758017, 758018, 758019, 758020, 758021, 759052 - TRANSMISSION, LOW PRESSURE, LINE (35) - HYDRAULIC SYSTEMS

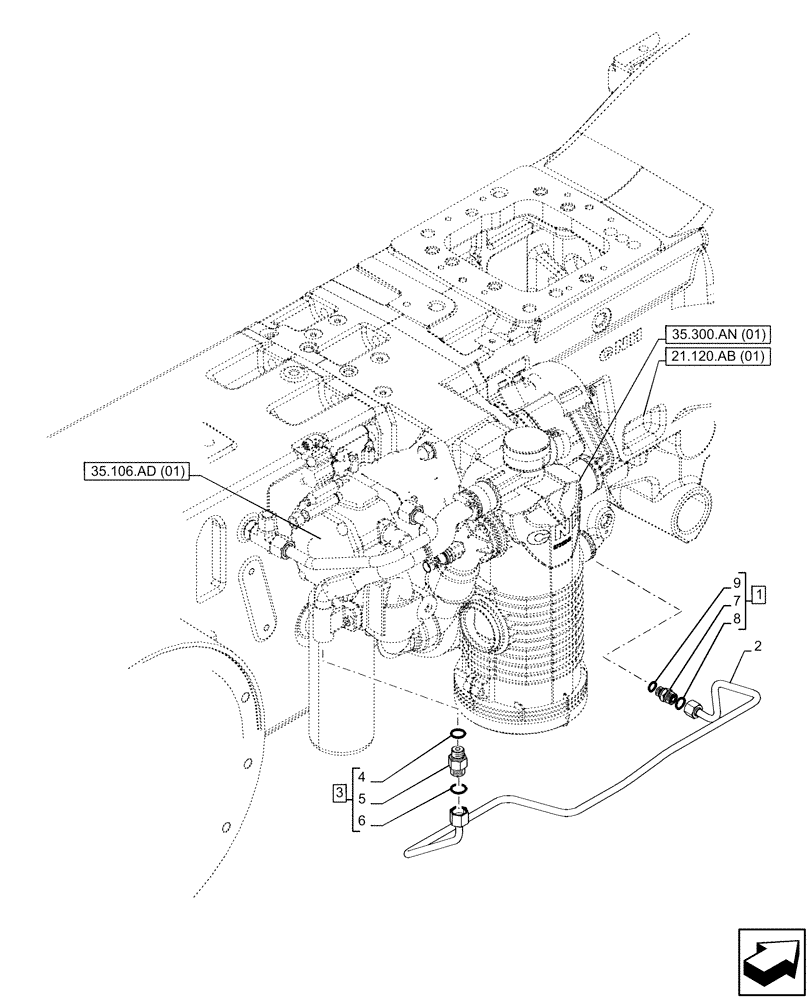

Схема запчастей Case IH PUMA 220 - (35.322.AY[05]) - VAR - 337426, 337428, 337429, 337430, 337431, 338397, 337432, 391137, 758017, 758018, 758019, 758020, 758021, 759052 - TRANSMISSION, LOW PRESSURE, LINE (35) - HYDRAULIC SYSTEMS
21.120.ab (01)
1
7
8
5
3
4
9
6
2
35.300.an (01)
35.106.ad (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5196844

HYD CONNECTOR

ASSY, Incl 7 - 9

1шт.

2

84161896

HYD TUBE,10 mm OD

1шт.

3

87634393

CHECK VALVE,13/16" - 16 ORB x 13/16" - 16 ORFS

ASSY, Incl 4 - 6

1шт.

4

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

5

NSS

NOT SOLD SEPARAT

Valve, Incl in 3

1шт.

6

14453180

O-RING,12.42mm ID x 1.78mm

1шт.

7

NSS

NOT SOLD SEPARAT

Connector, Incl in 1

1шт.

8

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

1шт.

9

14437785

O-RING,11.3mm ID x 2.4mm

1шт.

Выбрано товаров: 9
