Запчасти Case IH PUMA 220 (35.322.AY[03]) - VAR - 338397, 337426, 337428, 391137, 758017 - TRANSMISSION, LOW PRESSURE, LINE (35) - HYDRAULIC SYSTEMS

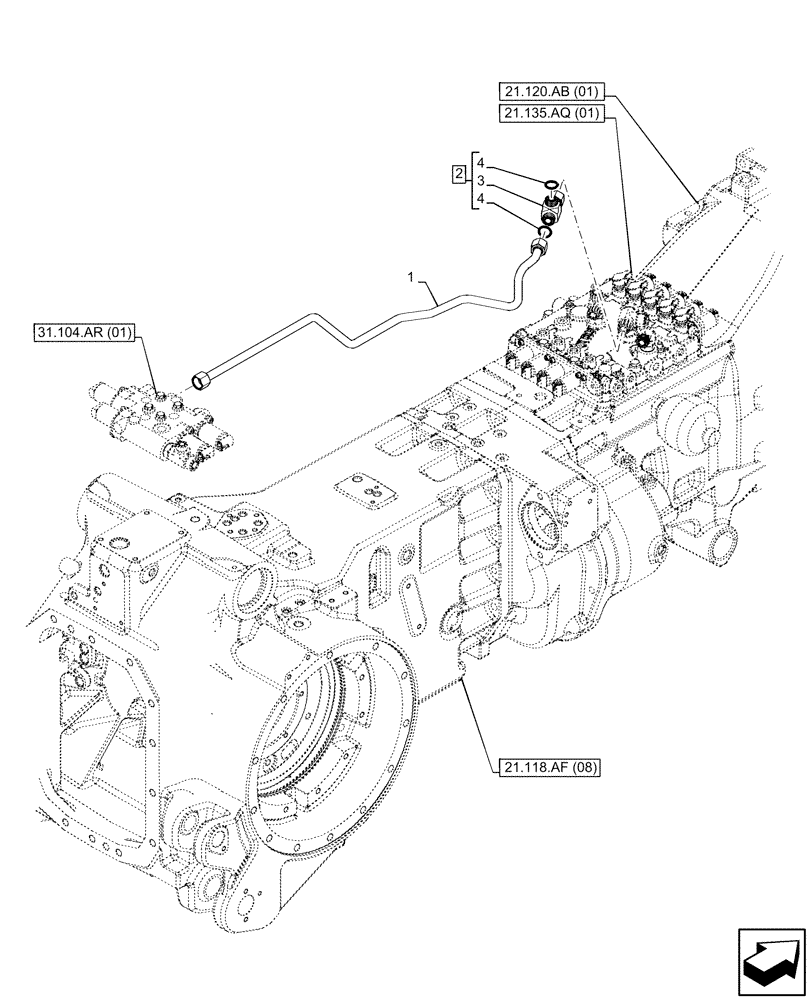

Схема запчастей Case IH PUMA 220 - (35.322.AY[03]) - VAR - 338397, 337426, 337428, 391137, 758017 - TRANSMISSION, LOW PRESSURE, LINE (35) - HYDRAULIC SYSTEMS
31.104.ar (01)
4
21.118.af (08)
4
3
2
1
21.135.aq (01)
21.120.ab (01)

Артикул

Название

Примечание

Количество

1

47567084

PIPE

Lubrication PTO STD

1шт.

2

84989850

3 WAY CONNECTION

ASSY, Incl 3, 4 (Qty 2)

1шт.

3

NSS

NOT SOLD SEPARAT

Tee, Incl in 2

1шт.

4

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

Выбрано товаров: 4
