Запчасти Case IH PUMA 220 (35.300.AN[03]) - VAR - 337426, 337428, 337429, 337430, 337431, 337432, 338397, 391137, 758017, 758018, 758019, 758020, 758021, 758868, 759052 - OIL FILTER, PRIORITY VALVE, POWERSHIFT (35) - HYDRAULIC SYSTEMS

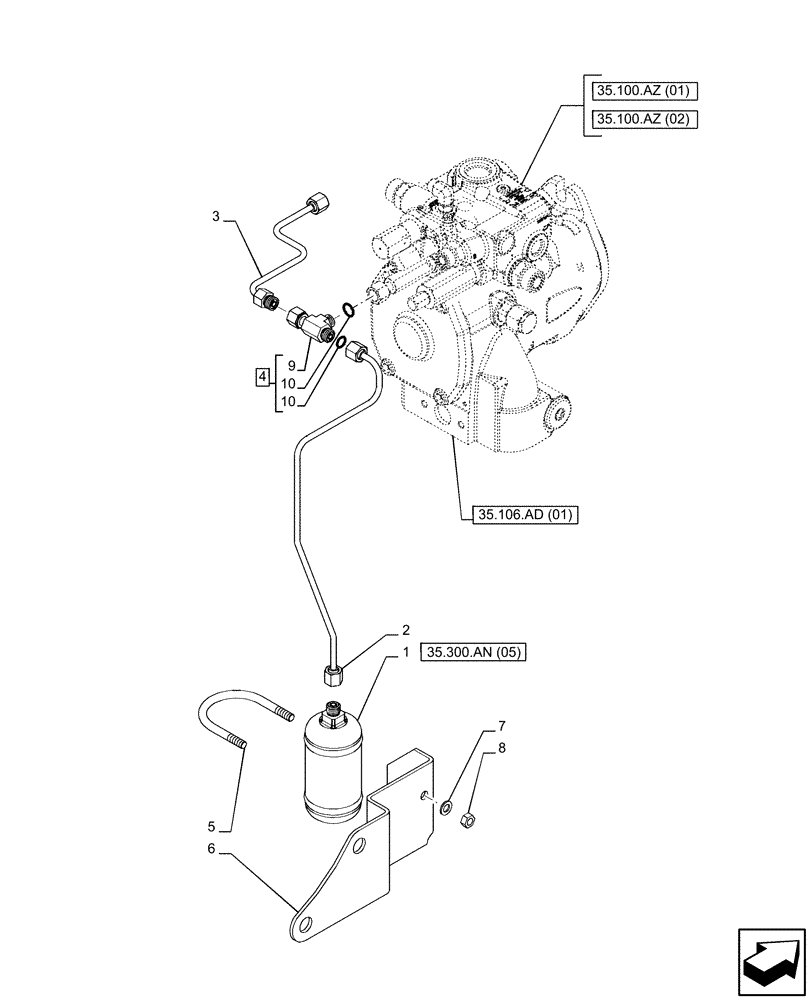

Схема запчастей Case IH PUMA 220 - (35.300.AN[03]) - VAR - 337426, 337428, 337429, 337430, 337431, 337432, 338397, 391137, 758017, 758018, 758019, 758020, 758021, 758868, 759052 - OIL FILTER, PRIORITY VALVE, POWERSHIFT (35) - HYDRAULIC SYSTEMS
35.300.an (05)
8
4
9
7
6
1
10
3
5
10
2
35.100.az (02)
35.106.ad (01)
35.100.az (01)

Артикул

Название

Примечание

Количество

1

84408141

HYDRAULIC OIL FILTER,60mm OD x 142.5mm L, 9/16-18

ASSY

1шт.

2

47643795

PIPE

to Resounding Filter

1шт.

3

83961945

TEE,9/16"-18 ORFS x 9/16"-18 Fem Sw Run

ASSY, Incl 9, 10

1шт.

4

47644326

PIPE

LS Pump

1шт.

5

84152220

U-BOLT,M8 x 2, ZND

1шт.

6

84487033

BRACKET

1шт.

7

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

8

9706690

NUT,M8 x 1.25, Cl 8

2шт.

9

NSS

NOT SOLD SEPARAT

Tee, Incl in 3

1шт.

10

81844850

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

Выбрано товаров: 10
