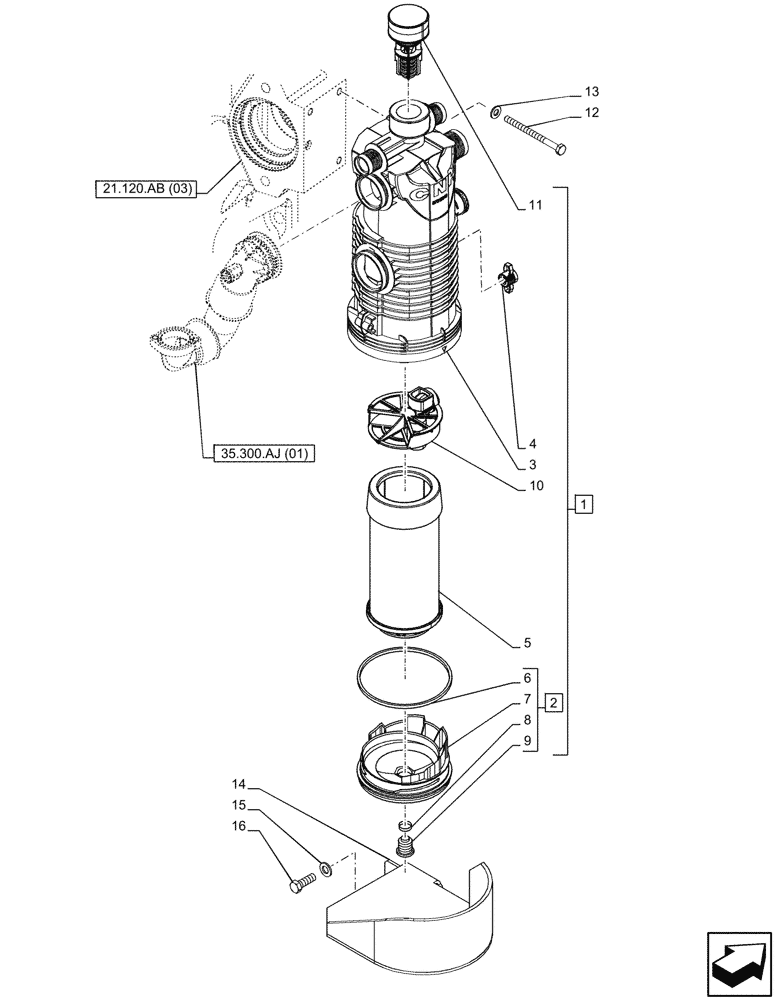

Запчасти Case IH PUMA 220 (35.300.AN[01A]) - VAR - 391161, 758056 - OIL FILTER - BEGIN YR 9-MAR-2016 (35) - HYDRAULIC SYSTEMS

1

47715392

FILTER ASSY

ASSY, Incl 2 - 11

1шт.

2

87705159

FILTER COVER

ASSY, Incl 6 - 9

1шт.

3

NSS

NOT SOLD SEPARAT

Body, Incl in 1

1шт.

4

87705160

ARRESTER

1шт.

5

47715391

HYDRAULIC OIL FILTER,148mm OD x 268mm L

Filter & Seal

1шт.

6

NSS

NOT SOLD SEPARAT

Seal, Incl in 2

1шт.

7

NSS

NOT SOLD SEPARAT

Housing, Incl in 2

1шт.

8

NSS

NOT SOLD SEPARAT

Seal, Incl in 2

1шт.

9

NSS

NOT SOLD SEPARAT

Plug, Incl in 2

1шт.

10

47715390

TUBE

1шт.

11

87600439

VALVE PRESSURE RELIE

1шт.

12

15972421

SCREW,Hex, M10 x 1.25 x 130mm, Cl 8.8

2шт.

13

14496601

WASHER,10.5mm ID x 21mm OD x 2mm Thk

2шт.

14

87758486

SHIELD

1шт.

15

14496721

WASHER,13mm ID x 24mm OD x 2.5mm Thk

2шт.

16

300389

BOLT,M12 x 1.75 x 35mm, Cl 8.8

2шт.
