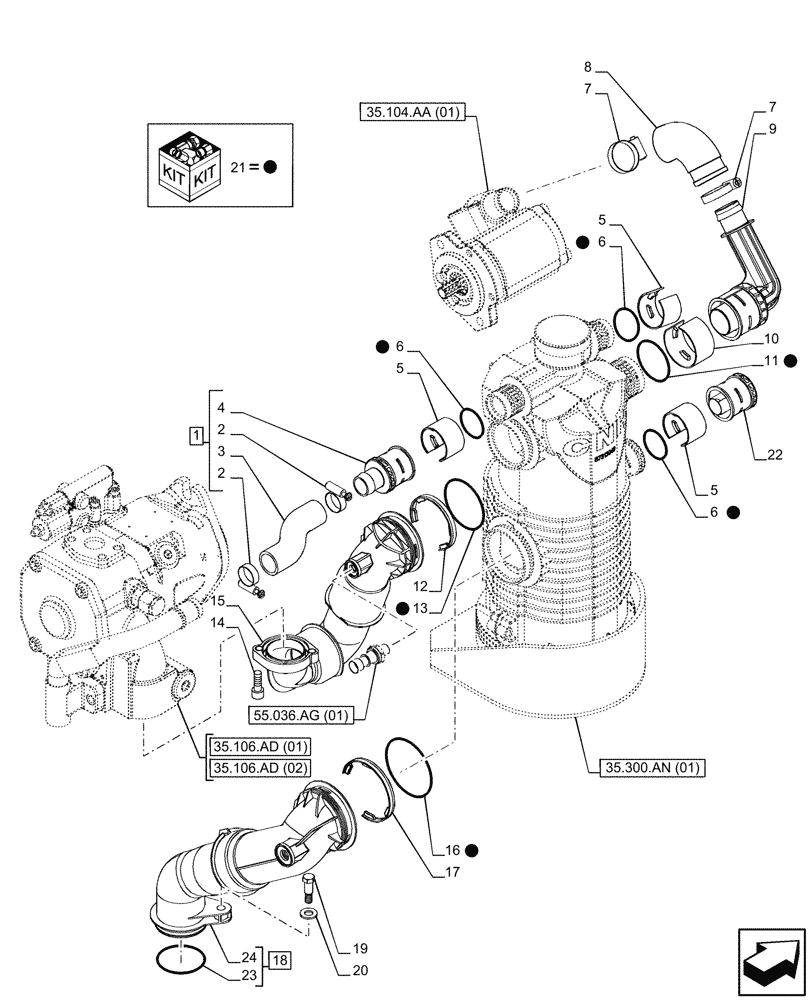

Запчасти Case IH PUMA 220 (35.300.AJ[01]) - VAR - 391161, 758056 - OIL FILTER, LINE (35) - HYDRAULIC SYSTEMS

1

47749169

HOSE,25.4mm ID x 114mm L

1шт.

2

82036709

HOSE CLAMP,25mm - 40mm, Worm Gear

2шт.

3

47749164

HOSE,25.4mm ID x 114mm L

1шт.

4

87381694

HYD CONNECTOR,21mm D x 22mm D

1шт.

5

84121298

SNAP RING,30mm Thk, Ext

3шт.

6

87381700

O-RING,25.50mm ID x 2.53mm

3шт.

7

13001690

HOSE CLAMP,Worm Gear, 30mm/45mm x 9mm W, CST, ZND

2шт.

8

87323539

ELBOW,90 Deg, 31mm ID x 45mm OD

1шт.

9

87324688

ELBOW,90 Deg, 32.9mm - 27mm ID

1шт.

10

87330755

STOP DEVICE

1шт.

11

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 21

1шт.

12

87381696

SNAP RING,8mm Thk, Ext

1шт.

13

87381702

O-RING,53.5mm ID x 2.387mm OD x 3.53mm

1шт.

14

86625220

HEX SOC SCREW,M8 x 25mm, Cl 8.8

4шт.

15

47689911

SUCTION PIPE

1шт.

16

87381699

O-RING,63.50mm ID x 3.53mm

1шт.

17

87381695

CIRCLIP,8mm Thk

1шт.

18

87473619

TUBE

Suction, ASSY, Incl 23, 24

1шт.

19

87687675

BOLT,M8 x 1.25 x 32mm, Cl 8.8

1шт.

20

14496607

WASHER,10.5mm ID x 21mm OD x 2mm Thk

1шт.

21

87705156

SEAL KIT

PUMA

1шт.

22

87330798

PLUG,46mm ID

1шт.

23

87705158

GASKET KIT

1шт.

24

NSS

NOT SOLD SEPARAT

Tube, Incl in 18

1шт.
