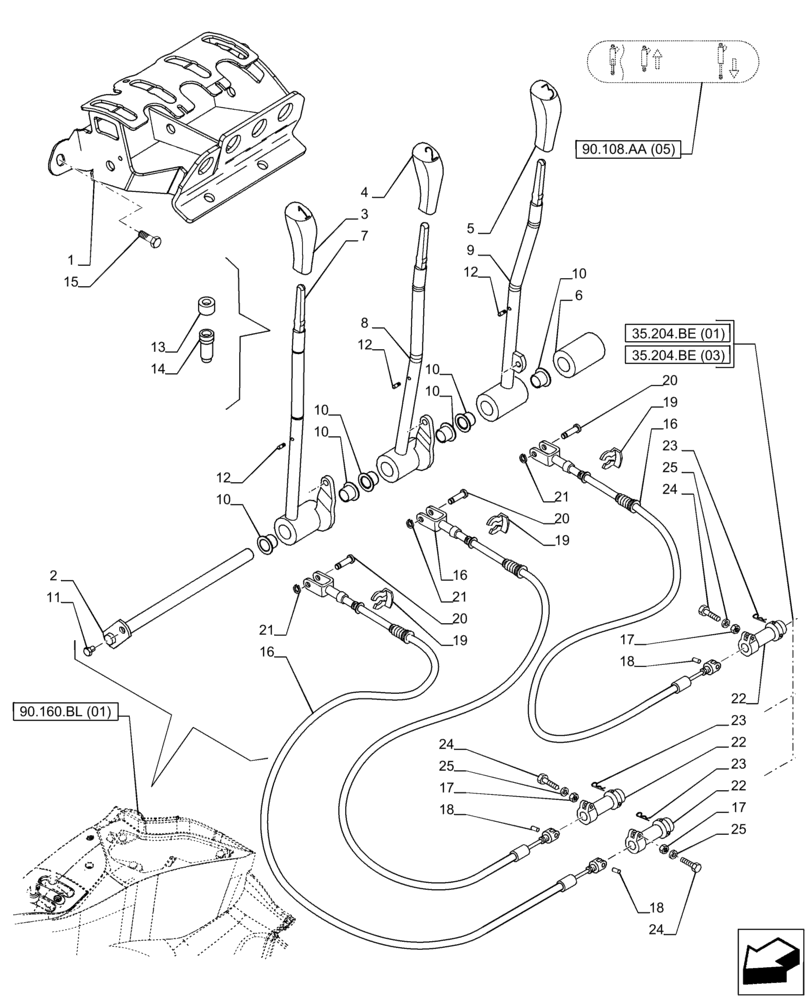

Запчасти Case IH PUMA 220 (35.204.BL[01]) - VAR - 391164 - 3 REMOTE CONTROL VALVE, CONTROL LEVER (35) - HYDRAULIC SYSTEMS

1

84373709

FRAME

Mechanical Remote Control

1шт.

2

84186398

HANDLED SHAFT

1шт.

3

82037910

KNOB

N. 1, Black

1шт.

4

82037911

KNOB

N. 2, Black

1шт.

5

82037912

KNOB

N. 3, Black

1шт.

6

87738556

SPACER,12.1mm ID x 30mm OD x 49mm L

1шт.

7

84373726

LEVER

1st Remote Control

1шт.

8

84373733

LEVER

2nd Remote Control

1шт.

9

84373742

LEVER

3rd Remote Control

1шт.

10

82035633

BUSHING

6шт.

11

86505761

BOLT,Hex, M5 x 0.8 x 8mm, Cl 8.8, Full Thd

1шт.

12

84209523

SPRING LOCK

3шт.

13

84209516

LOCKING DEVICE

Upper

3шт.

14

84209520

LOCKING DEVICE

Lower

3шт.

15

14307374

BOLT,Hex Skt, M10 x 1.25 x 20mm, Cl 12.9, Full Thd

4шт.

16

84218763

BOWDEN CONTROL

Remote Control

3шт.

17

15896224

NUT,Hex, M6

3шт.

18

82001332

PIN,6.35mm OD x 16mm L

3шт.

19

83982632

CLIP

3шт.

20

82036373

CLEVIS PIN,5.96mm OD x 18.5mm L

3шт.

21

11087776

CIRCLIP,Ext., M6, BLO

3шт.

22

87356033

COUPLING,25mm ID x 35mm OD x 97mm L

3шт.

23

82026318

COTTER PIN,1/8 x 2 5/16

6шт.

24

10903034

SCREW

3шт.

25

10615479

LOCK WASHER,6.4mm ID x 11mm OD x 0.7mm Thk

3шт.
