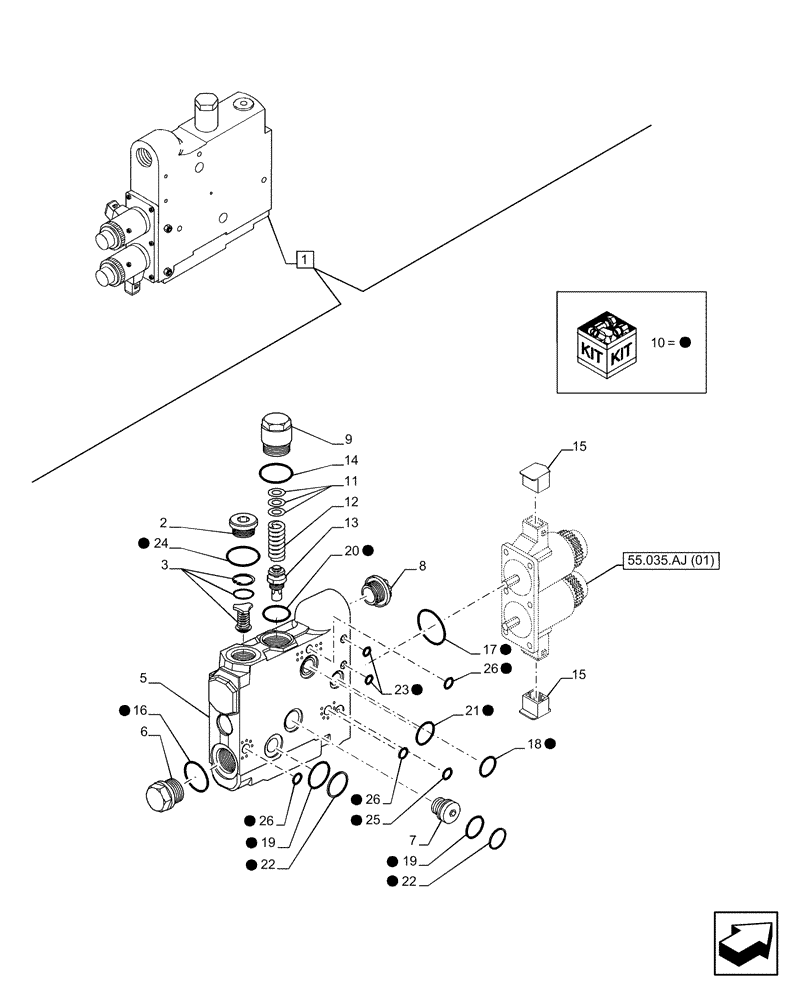

Запчасти Case IH PUMA 220 (35.204.BE[10]) - VAR - 391164, 758058 - CONTROL VALVE SECTION, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

84236339

CONTROL VALVE

ASSY, Incl 2 - 26

1шт.

See also Figure 55.035.AJ (01)

1шт.

2

47129438

PLUG

1шт.

3

84232107

REPAIR KIT

1шт.

4

47129409

SET SCREW,Oval Head

6шт.

5

NSS

NOT SOLD SEPARAT

Valve Housing, Incl in 1

1шт.

6

87531487

PLUG

1шт.

7

84127100

SHUT-OFF VALVE

1шт.

8

NSS

NOT SOLD SEPARAT

Protective Cap, Incl in 1

1шт.

9

47129410

PLUG,Hex, 29.2mm OD

1шт.

10

47129413

SEAL KIT

Incl 16 - 26

1шт.

11

47129406

SHIM,0.30mm T

1шт.

11

47129407

SHIM,0.40mm T

1шт.

11

47129416

SHIM,0.80mm T

1шт.

12

47129411

SPRING

1шт.

13

47129415

INSERT

1шт.

14

87531495

O-RING,12.00mm ID x 1.75mm

1шт.

15

NSS

NOT SOLD SEPARAT

Protective Cap, Incl in 1

2шт.

16

NSS

NOT SOLD SEPARAT

O-Ring, 21.4 x 2.1 HNBR

1шт.

17

NSS

NOT SOLD SEPARAT

O-Ring, 28 x 2 HNBR

2шт.

18

NSS

NOT SOLD SEPARAT

O-Ring, 14 x 2.5 HNBR

1шт.

19

NSS

NOT SOLD SEPARAT

O-Ring, 18 x 2.5 HNBR

2шт.

20

NSS

NOT SOLD SEPARAT

O-Ring, 23 x 2.5 HNBR

1шт.

21

NSS

NOT SOLD SEPARAT

O-Ring, 20 x 2.5 HNBR

1шт.

22

NSS

NOT SOLD SEPARAT

Support Ring, 24.5 x 2.15

2шт.

23

NSS

NOT SOLD SEPARAT

O-Ring, 6 x 1.5 HNBR

2шт.

24

NSS

NOT SOLD SEPARAT

O-Ring, 19.4 x 2.1 HNBR

1шт.

25

NSS

NOT SOLD SEPARAT

O-Ring, 9 x 2 HNBR

1шт.

26

NSS

NOT SOLD SEPARAT

Shim, 11.8 x 0.04

3шт.
