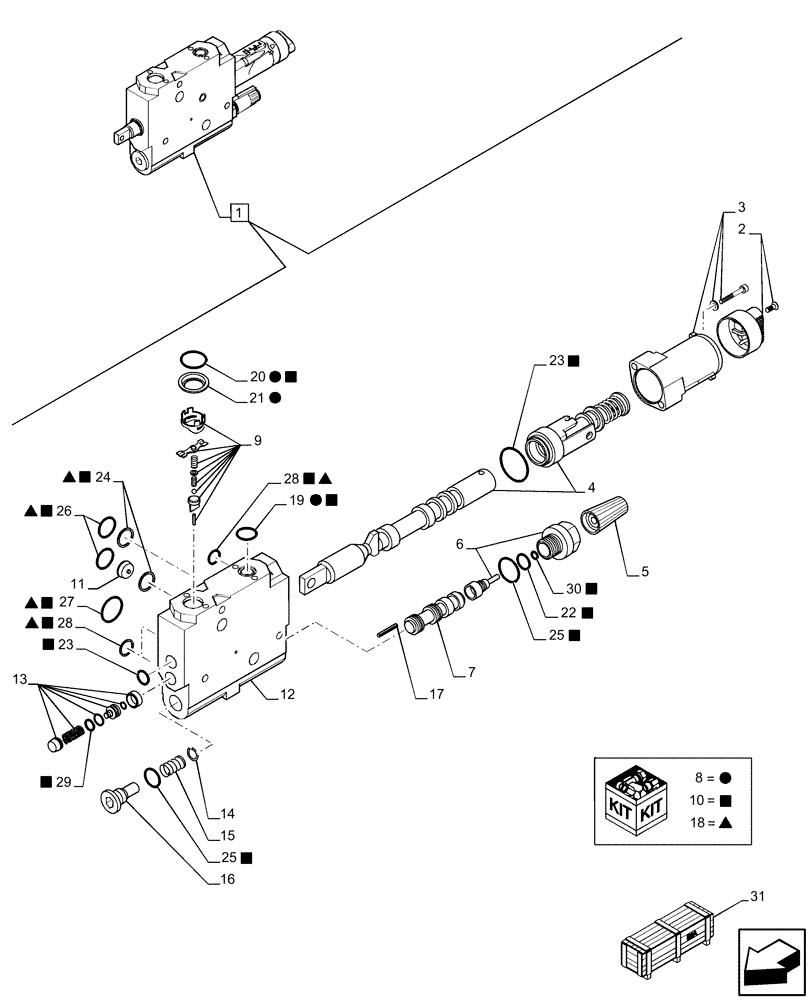

Запчасти Case IH PUMA 220 (35.204.BE[09]) - VAR - 391164, 758058 - CONTROL VALVE SECTION, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

87313431

VALVE SECTION

ASSY, Incl 2 - 30

1шт.

2

47613919

KNOB

1шт.

3

87531919

REPAIR KIT

1шт.

4

NSS

NOT SOLD SEPARAT

Regulator, Incl in 1

1шт.

5

87319988

KNOB

1шт.

6

47130767

KIT

1шт.

7

87394197

REPAIR KIT

1шт.

8

84125422

SEAL KIT

Incl 19 - 21

1шт.

9

87630107

REPAIR KIT

1шт.

10

87661337

KIT

Incl 19, 20, 22 - 30

1шт.

11

47127006

VALVE

1шт.

12

NSS

NOT SOLD SEPARAT

Valve Housing, Incl in 1

1шт.

13

87666211

SERVICE KIT

with Threaded Hole Cap

1шт.

13

87376020

SERVICE KIT

1шт.

14

47129463

RETAINER

1шт.

15

84124585

SPRING

1шт.

16

47615569

PLUG,M22 x 1.5 x 44.1mm L

1шт.

17

NSS

NOT SOLD SEPARAT

Slotted Spring Pin, Incl in 1

1шт.

18

47127019

SEAL

KIT, Incl 24, 26 -28

1шт.

19

NSS

NOT SOLD SEPARAT

O-Ring, 15 x 2.5 HNBR

1шт.

20

NSS

NOT SOLD SEPARAT

O-Ring, 17 x 2.5 HNBR

1шт.

21

NSS

NOT SOLD SEPARAT

Washer

1шт.

22

NSS

NOT SOLD SEPARAT

O-Ring, 11 x 2 HNBR

1шт.

23

NSS

NOT SOLD SEPARAT

O-Ring, 18 x 3 HNBR

2шт.

24

NSS

NOT SOLD SEPARAT

O-Ring, 18 x 2.5 HNBR

2шт.

25

NSS

NOT SOLD SEPARAT

O-Ring, 19.4 x 2.1 HNBR

2шт.

26

NSS

NOT SOLD SEPARAT

Support Ring, 24.5 x 2.15

2шт.

27

NSS

NOT SOLD SEPARAT

O-Ring, 20 x 2.5 HNBR

1шт.

28

NSS

NOT SOLD SEPARAT

Shim, 11.8 x 0.04

3шт.

29

NSS

NOT SOLD SEPARAT

Support Ring, 11.8 x 15 x 0.8

1шт.

30

NSS

NOT SOLD SEPARAT

O-Ring, 6 x 1.5 HNBR

1шт.

31

710652014

DIA KIT, TRACTOR

1 Additional Mechanical Remote Valve W/ Config Detents, Incl 2 - 30

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
