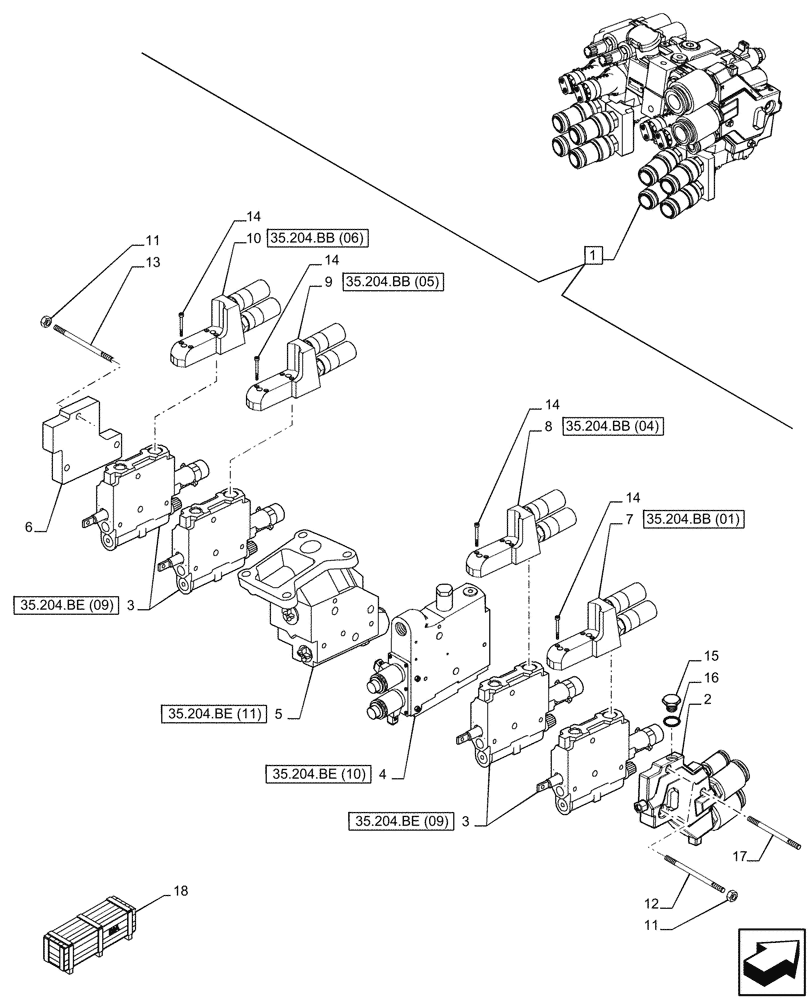

Запчасти Case IH PUMA 220 (35.204.BE[08]) - VAR - 758058 - 4 REMOTE CONTROL VALVES (MHR W/PB), COMPONENTS (35) - HYDRAULIC SYSTEMS

1

84473451

HYDRAULIC VALVE

ASSY, Incl 2 - 16

1шт.

2

47135544

HYD VALVE SECTION

ASSY

1шт.

3

87313431

VALVE SECTION

ASSY

4шт.

4

84236339

CONTROL VALVE

ASSY

1шт.

5

47136304

BODY

ASSY

1шт.

6

5190710

PLATE

1шт.

7

87381981

HYDRAULIC MANIFOLD

ASSY, Group 1

1шт.

8

87381982

HYDRAULIC MANIFOLD

ASSY, Group 2

1шт.

9

87381983

HYDRAULIC MANIFOLD

ASSY, Group 3

1шт.

10

87381984

HYDRAULIC MANIFOLD

ASSY, Group 4

1шт.

11

5195169

NUT,M8

M8 - 10

6шт.

12

5195168

TIE-ROD,M8

168mm

2шт.

13

5195170

BOLT

131mm

3шт.

14

14305971

HEX SOC SCREW,M6 x 45mm, Cl 12.9

16шт.

15

5191704

CHECK VALVE

1шт.

16

5191705

O-RING,9.4mm D x 2.1mm Thk

1шт.

17

47127002

TIE-ROD

184mm

1шт.

18

710652014

DIA KIT, TRACTOR

1 Additional Mechanical Remote Valve W/ Config Detents, Incl 10 (Qty 1), 11, 13, 14

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
