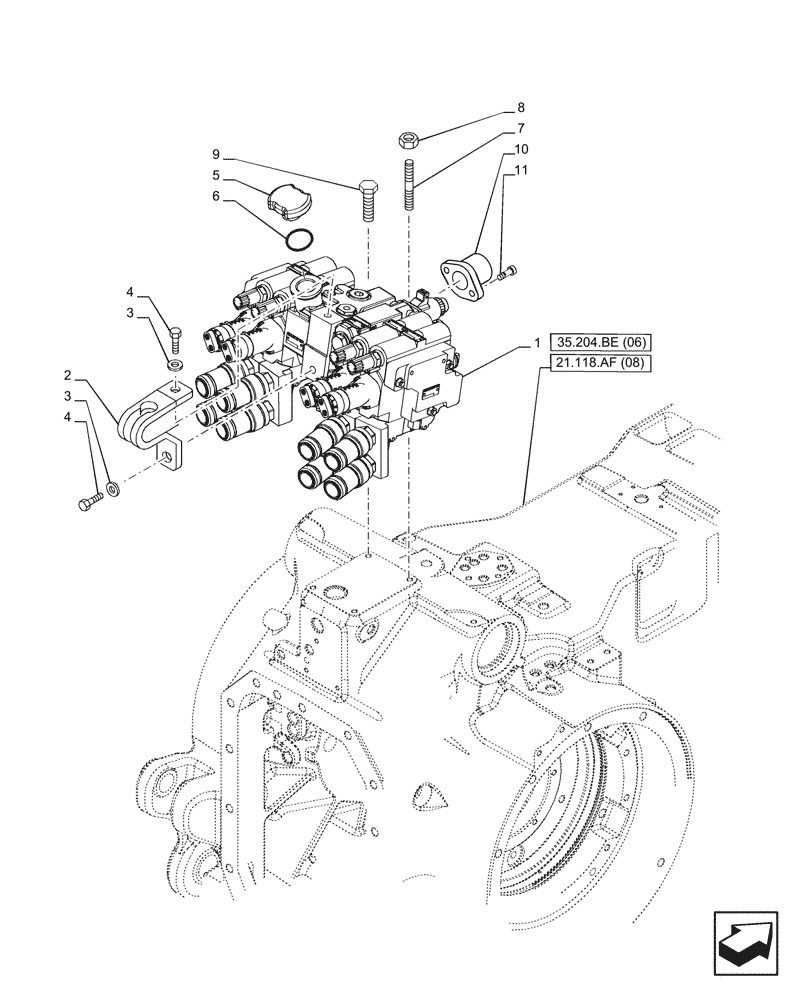

Запчасти Case IH PUMA 220 (35.204.BE[05]) - VAR - 758058 - 4 REMOTE CONTROL VALVES (MHR) (35) - HYDRAULIC SYSTEMS

1

87311373

CONTROL VALVE

ASSY

1шт.

2

5189351

BRACKET

1шт.

3

14496701

WASHER,13.00mm ID x 24.00mm OD x 2.50mm, CST, ZND

2шт.

4

15540324

SCREW,Hex, M12 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

5

82005372

FILLER CAP,Male, Vented_No Lockable

1шт.

6

14463780

O-RING,0.139" Thk x 1.296" ID, -219, Cl 5, 75 Duro

1шт.

7

13449721

STUD,M10 x 1.25 x 30mm L, Cl 8.8

M10 x 1.25 x 26 x 30

2шт.

8

12164711

NUT,M10 x 1.25, Cl 8

2шт.

9

15970921

SCREW,Hex, M10 x 1.25 x 35mm, Cl 8.8, Full Thd

2шт.

10

5189606

SUPPORT

4шт.

11

14305224

HEX SOC SCREW,M6 x 16mm, Cl 8.8, Full Thd

8шт.
