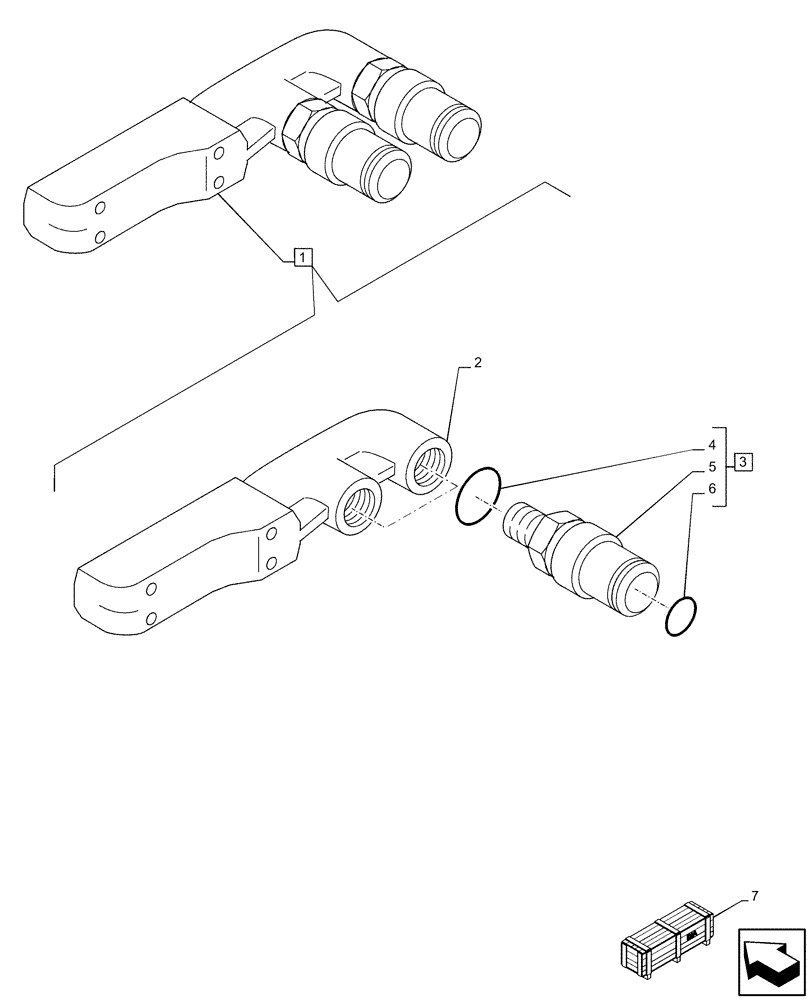

Запчасти Case IH PUMA 220 (35.204.BB[06]) - VAR - 758058 - QUICK COUPLER, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

87381984

HYDRAULIC MANIFOLD

ASSY, Group 4, Incl 2 - 6

1шт.

2

NSS

NOT SOLD SEPARAT

Support, Incl in 1

1шт.

3

47370116

COUPLING

ASSY, Incl 4 (Qty 1), 5 (Qty 1), 6 (Qty 1)

2шт.

4

14438085

O-RING,19.3mm ID x 2.4mm

2шт.

5

NSS

NOT SOLD SEPARAT

Body, Incl in 3

2шт.

6

87382012

SEAL KIT

2шт.

7

710652014

DIA KIT, TRACTOR

1 Additional Mechanical Remote Valve W/ Config Detents, Incl 1 - 6

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
