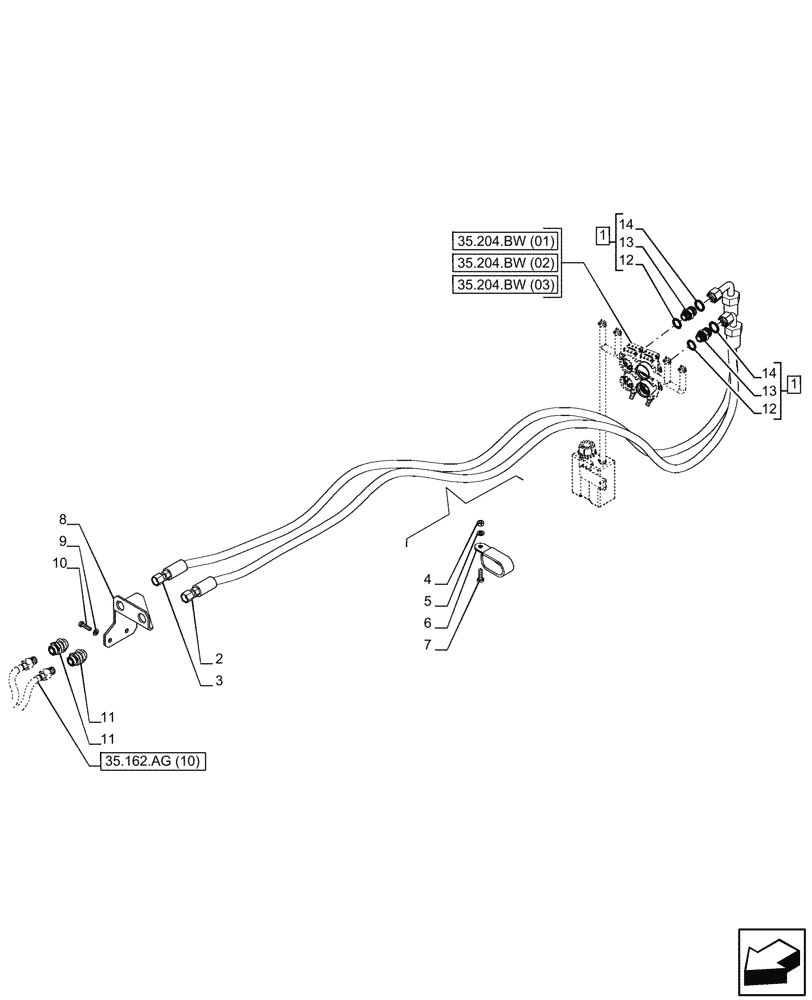

Запчасти Case IH PUMA 220 (35.162.AG[13]) - VAR - 758088 - 3 POINT HITCH, FRONT, CYLINDER, LINE (35) - HYDRAULIC SYSTEMS

1

82019638

HYD CONNECTOR,1" - 14 ORFS x M22 x 1.5 ORB

ASSY, Incl 12 (Qty 1), 13 (Qty1), 14 (Qty 1)

2шт.

2

47685448

HOSE

Raise

1шт.

3

47685466

HOSE

Lower

1шт.

4

15896211

NUT,M6, Cl 8

1шт.

5

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

1шт.

6

82023568

CLAMP,2 Hoses

1шт.

7

10902421

SCREW,Hex, M6 x 20mm, Cl 8.8

1шт.

8

84201723

SUPPORT

1шт.

9

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

10

16043821

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

11

82039603

HYD CONNECTOR

2шт.

12

83901443

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

13

NSS

NOT SOLD SEPARAT

Connector, Incl in 1

2шт.

14

14438085

O-RING,19.3mm ID x 2.4mm

2шт.
