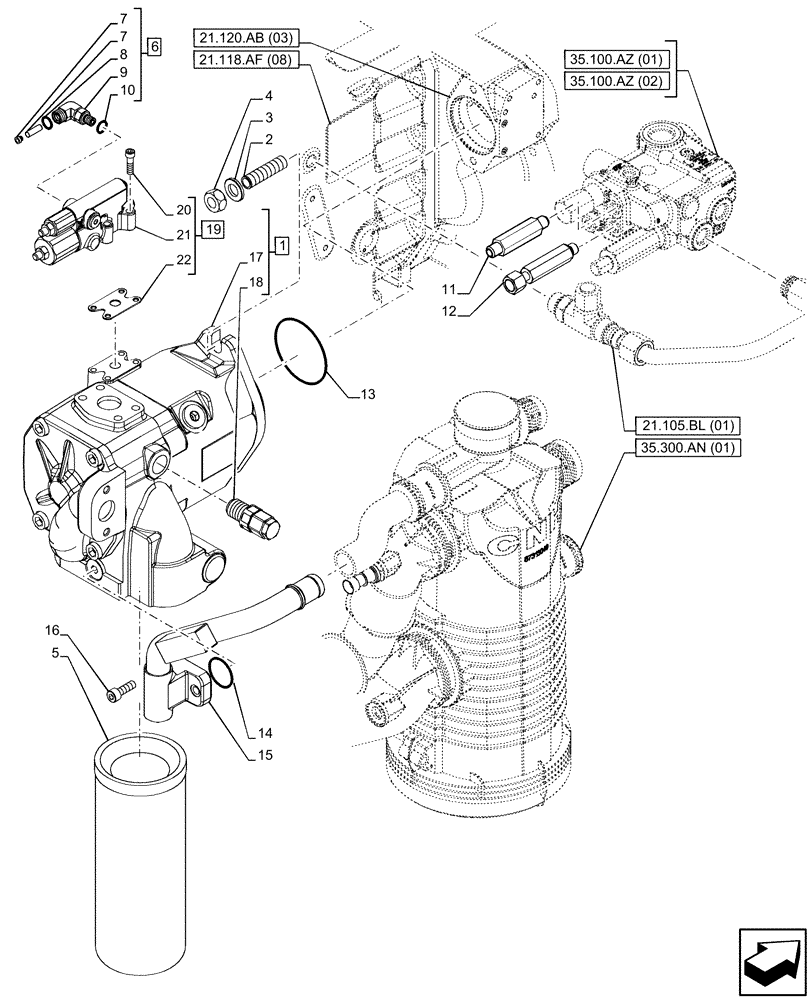

Запчасти Case IH PUMA 220 (35.106.AD[01]) - VAR - 391161 - VARIABLE DELIVERY HYDRAULIC PUMP, 120 L/MIN (35) - HYDRAULIC SYSTEMS

1

84471388

HYDRAULIC PUMP,45 CC

ASSY, Incl in 17 - 22

1шт.

1

84471388R

REMAN-HYD PUMP

45 CC

1шт.

1

84471388C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

13555334

STUD

2шт.

3

10730821

WASHER,Flat, 14.40mm ID x 26.00mm OD x 3.00mm, R80, ZND

2шт.

4

12164021

NUT,Thick Hex, M14, 1.50mm Pitch, 11.00mm High, Cl 10, ZND

2шт.

5

84226258

HYDRAULIC OIL FILTER,94mm OD x 240mm L, 1" 3/8-12UNF

1шт.

6

47126659

ELBOW,90 Deg, 9/16-18 ORFS x 7/16-20 ORB

1шт.

7

47126655

FILTER STRAINER

1шт.

8

5185509

O-RING,1.78mm Thk x 7.66mm ID, 85 Duro

1шт.

9

47126658

90 ELBOW,9/16"-18 ORFS x 7/16"-20

1шт.

10

5185507

O-RING,8.92mm ID x 1.83mm Width

1шт.

11

84270265

FITTING,M12 x 1.5 x 9/16"-18

1шт.

12

47456482

HYD CONNECTOR

1шт.

13

9828498

O-RING,0.103" Thk x 3.987" ID, -155, Cl 5, 75 Duro

1шт.

14

14463580

O-RING,0.139" Thk x 1.17" ID, -217, Cl 5, 75 Duro

1шт.

15

47752402

HYD TUBE

1шт.

16

86625220

HEX SOC SCREW,M8 x 25mm, Cl 8.8

4шт.

17

NSS

NOT SOLD SEPARAT

Pump, Incl in 1

1шт.

18

47511121

VALVE PRESSURE RELIE

1шт.

19

47616157

COMPENSATOR

ASSY, Incl 20 - 22

1шт.

20

NSS

NOT SOLD SEPARAT

Screw, Incl in 19

1шт.

21

NSS

NOT SOLD SEPARAT

Controller, Incl in 19

1шт.

22

84209778

GASKET

1шт.
