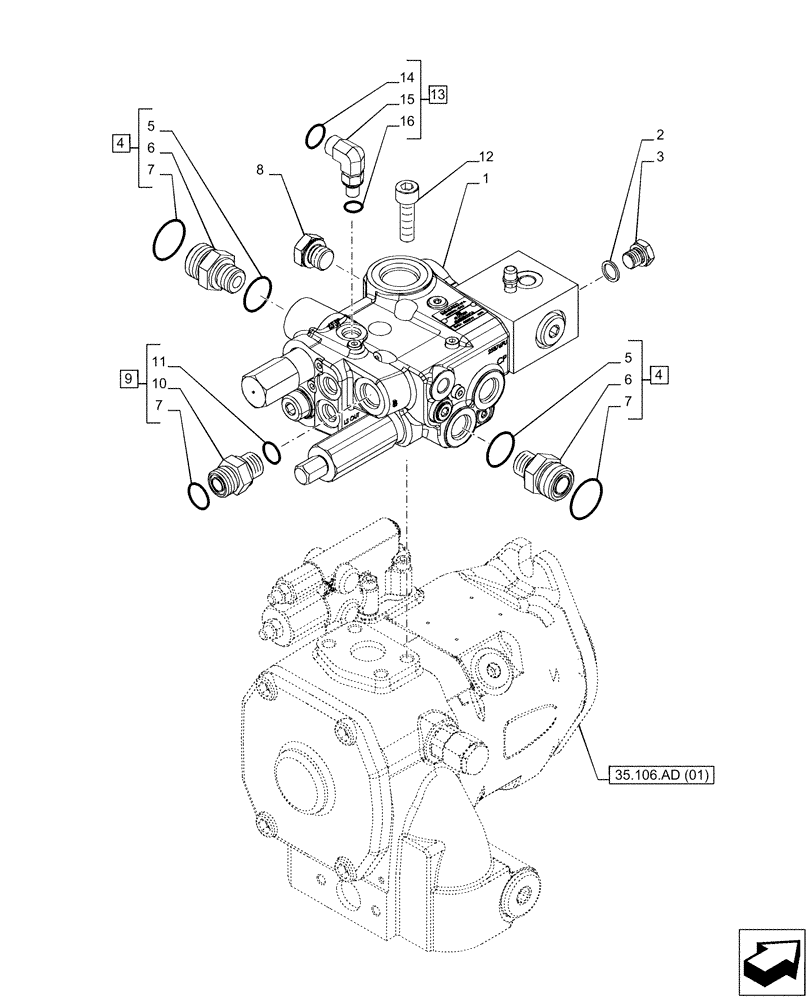

Запчасти Case IH PUMA 220 (35.100.AZ[03]) - VAR - 758040, 758042 - PRIORITY VALVE, ITALY (35) - HYDRAULIC SYSTEMS

1

47413417

HYDRAULIC VALVE

Flow Control

1шт.

2

10261060

SEALING WASHER,12.2mm ID x 16mm OD x 1.5mm Thk

1шт.

3

47131496

PLUG,Hex, M12 x 1

1шт.

4

86579679

HYD CONNECTOR,1"-14 ORFS x M18 x 1.5 ORB

ASSY, Incl 5 - 7

2шт.

5

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

6

NSS

NOT SOLD SEPARAT

Connector, Incl in 4

1шт.

7

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

2шт.

8

86981620

PLUG,M16 x 1.5, ORB

1шт.

9

86579676

HYD CONNECTOR,13/16" - 16 ORFS x M18 x 1.5 ORB

ASSY, Incl 7, 10, 11

1шт.

10

NSS

NOT SOLD SEPARAT

Connector, Incl in 9

1шт.

11

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

12

81869630

HEX SOC SCREW,M10 x 35mm, Cl 8.8

4шт.

13

84431522

ELBOW,90 Degree, 9/16"-18 ORFS x M12 x 1.5 ORB

ASSY, Incl 14 - 16

1шт.

14

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

15

NSS

NOT SOLD SEPARAT

Elbow, Incl in 13

1шт.

16

86598098

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.
