(33.350.AS[02]) - VAR - 337479, 337480 - ANTILOCK BRAKING SYSTEM (ABS), BRAKE LINE, FRONT

Запчасти Case IH PUMA 220 (33.350.AS[02]) - VAR - 337479, 337480 - ANTILOCK BRAKING SYSTEM (ABS), BRAKE LINE, FRONT (33) - BRAKES & CONTROLS

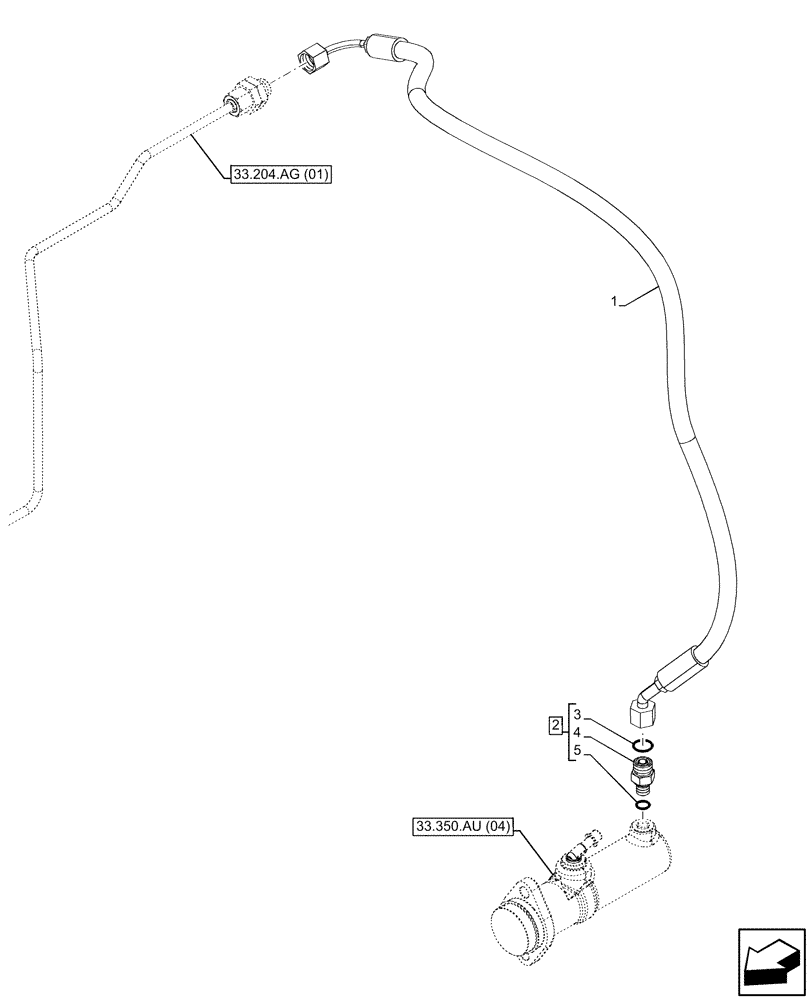

Схема запчастей Case IH PUMA 220 - (33.350.AS[02]) - VAR - 337479, 337480 - ANTILOCK BRAKING SYSTEM (ABS), BRAKE LINE, FRONT (33) - BRAKES & CONTROLS
33.204.ag (01)
5
4
2
3
1
33.350.au (04)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47508181

HYDRAULIC HOSE

Front Brake

1шт.

2

84593999

HYD CONNECTOR,11/16-16 ORFS, M12 x 1.5 ORB

ASSY, Incl 3 - 5

1шт.

3

81844851

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

4

NSS

NOT SOLD SEPARAT

Connector, Incl in 2

1шт.

5

82019811

SEAL,11.6mm ID x 16.5mm OD x 1.5mm Thk

1шт.

Выбрано товаров: 5
