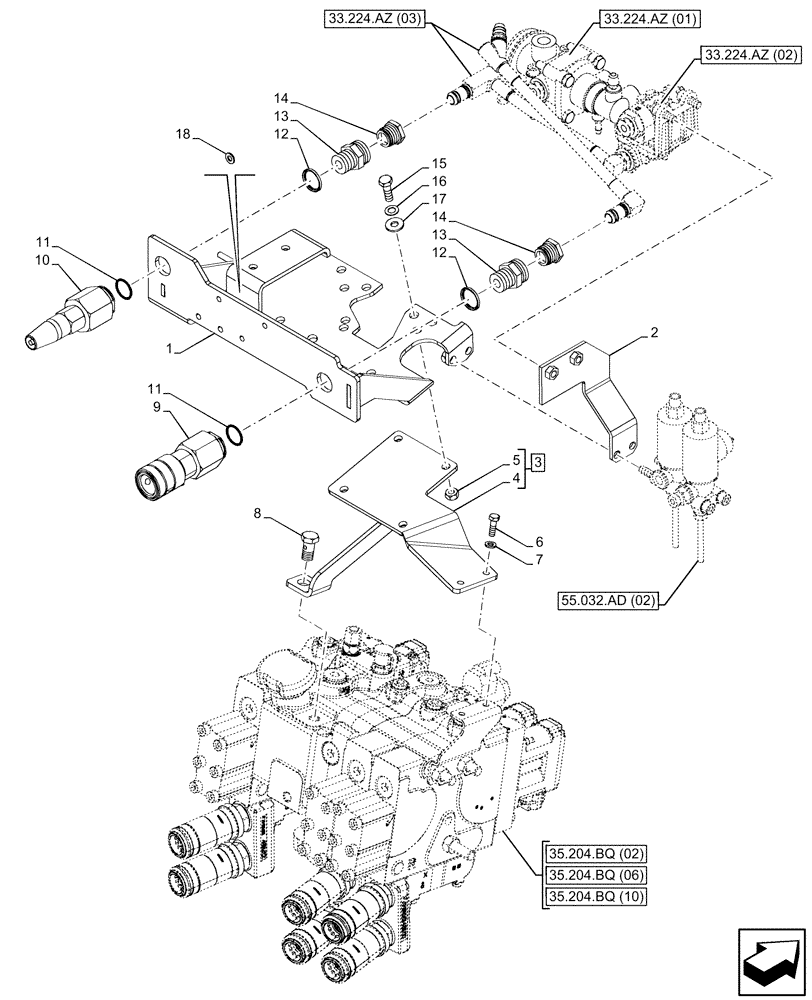

Запчасти Case IH PUMA 220 (33.224.AZ[05]) - VAR - 337488, 337491, 758043, 758044 - PNEUMATIC TRAILER BRAKE, BRACKET (33) - BRAKES & CONTROLS

1

84157684

SUPPORT

1шт.

2

84143167

SUPPORT

1шт.

3

87554135

SUPPORT

ASSY, Incl 4, 5

1шт.

4

NSS

NOT SOLD SEPARAT

Bracket, Incl in 3

1шт.

5

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

4шт.

6

10902421

SCREW,Hex, M6 x 20mm, Cl 8.8

2шт.

7

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

2шт.

8

5121685

BANJO BOLT,M12 x 1.5 x 23mm

1шт.

9

87679175

PUSH-PULL COUPLING

1шт.

10

87679176

PUSH-PULL COUPLING

1шт.

11

87679174

O-RING,2.4mm Thk x 20.3mm ID, 70 Duro

2шт.

12

87679173

BACK-UP RING,22.10mm, 25.80mm ID x 27.00mm OD x 2.50mm

2шт.

13

87679177

ADAPTER

2шт.

14

82034157

ADAPTER

2шт.

15

16043621

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

16

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

4шт.

17

12646701

WASHER,8.15mm ID x 20mm OD x 2mm Thk

4шт.

18

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

4шт.
