(33.220.AM[08]) - VAR - 337487, 758040, 758042 - HYDRAULIC AND PNEUMATIC TRAILER BRAKE, MANIFOLD, W/O ANTILOCK BRAKING SYSTEM (ABS)

Запчасти Case IH PUMA 220 (33.220.AM[08]) - VAR - 337487, 758040, 758042 - HYDRAULIC AND PNEUMATIC TRAILER BRAKE, MANIFOLD, W/O ANTILOCK BRAKING SYSTEM (ABS) (33) - BRAKES & CONTROLS

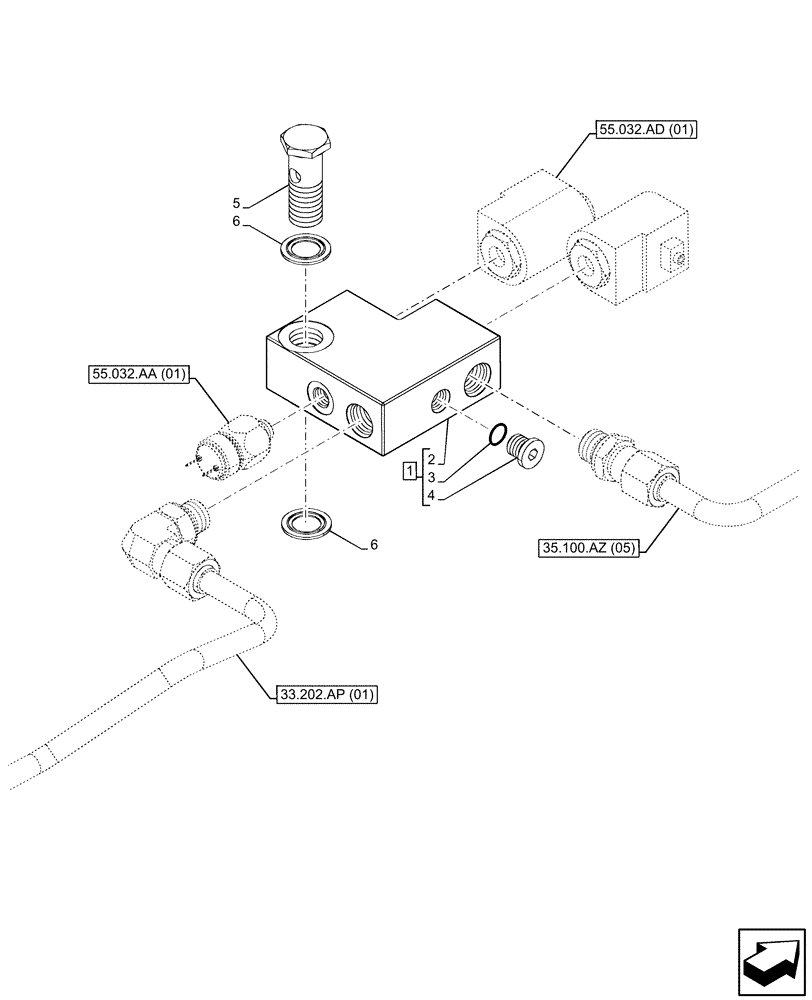

Схема запчастей Case IH PUMA 220 - (33.220.AM[08]) - VAR - 337487, 758040, 758042 - HYDRAULIC AND PNEUMATIC TRAILER BRAKE, MANIFOLD, W/O ANTILOCK BRAKING SYSTEM (ABS) (33) - BRAKES & CONTROLS
33.202.ap (01)
1
3
5
6
4
2
6
55.032.aa (01)
35.100.az (05)
55.032.ad (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5196175

BRAKE VALVE

1шт.

2

5196170

BLOCK

1шт.

3

14437685

O-RING,9.30mm ID x 2.40mm

1шт.

4

10118611

PLUG,M12 x 1.5 x 15.00mm, Cl 5.8

1шт.

5

5197769

BANJO BOLT,M18 x 1.5 x 49mm

1шт.

6

5186176

SEALING WASHER,15.80mm ID x 26.92mm OD x 1.50mm, Steel, Zinc

2шт.
