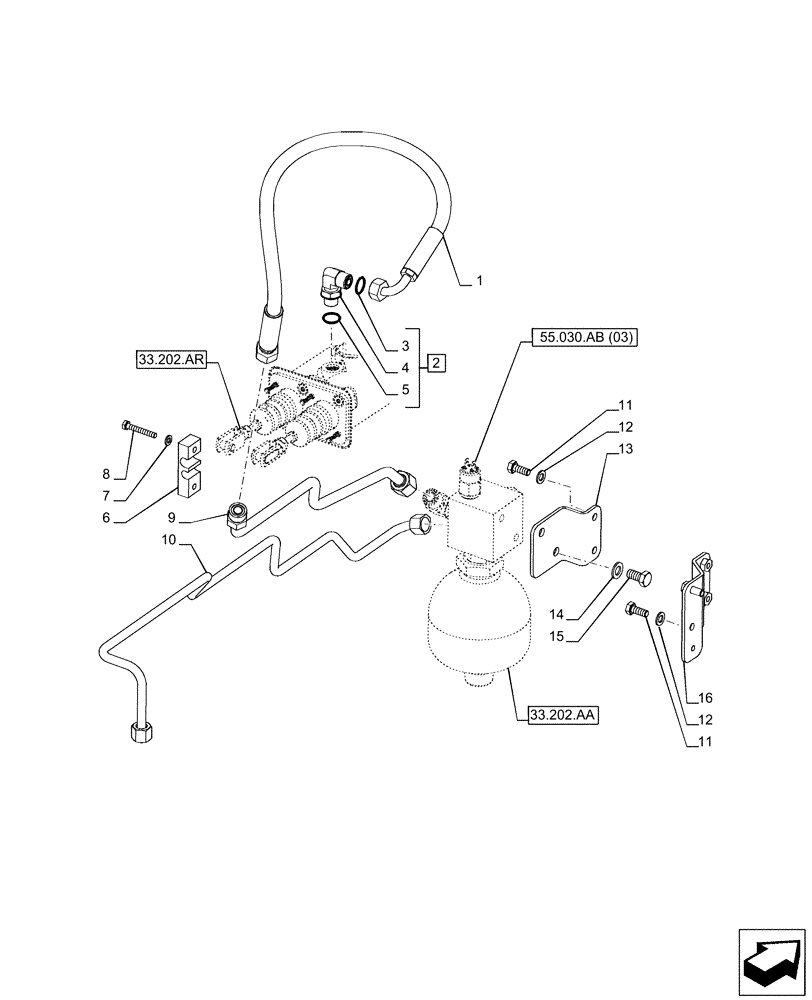

Запчасти Case IH PUMA 220 (33.202.BO[04]) - VAR - 391347, 758802, 758803, 758804, 758805, 758806, 758807, 758871 - BRAKE LINE, AUTOGUIDANCE (33) - BRAKES & CONTROLS

1

84606717

HYDRAULIC HOSE

Brake Master Cylinder

1шт.

2

82015686

ELBOW,M16 x 1.5 x 37.5mm

ASSY, Incl 3 - 5

1шт.

3

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

2шт.

4

NSS

NOT SOLD SEPARAT

Elbow, Incl in 2

1шт.

5

14437885

O-RING,13.30mm ID x 2.40mm

2шт.

6

84606725

CLAMP

Fixing Pipes

1шт.

7

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

8

120102

BOLT,Hex, M6 x 40mm, Cl 8.8

2шт.

9

47426768

PIPE

Brake Master Cylinder

1шт.

10

47675082

PIPE

Inlet Booster Brake

1шт.

11

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

12

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

13

84606721

BRACKET

Accumulator

1шт.

14

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

15

86637962

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

16

84606722

BRACKET

Accumulator

1шт.
