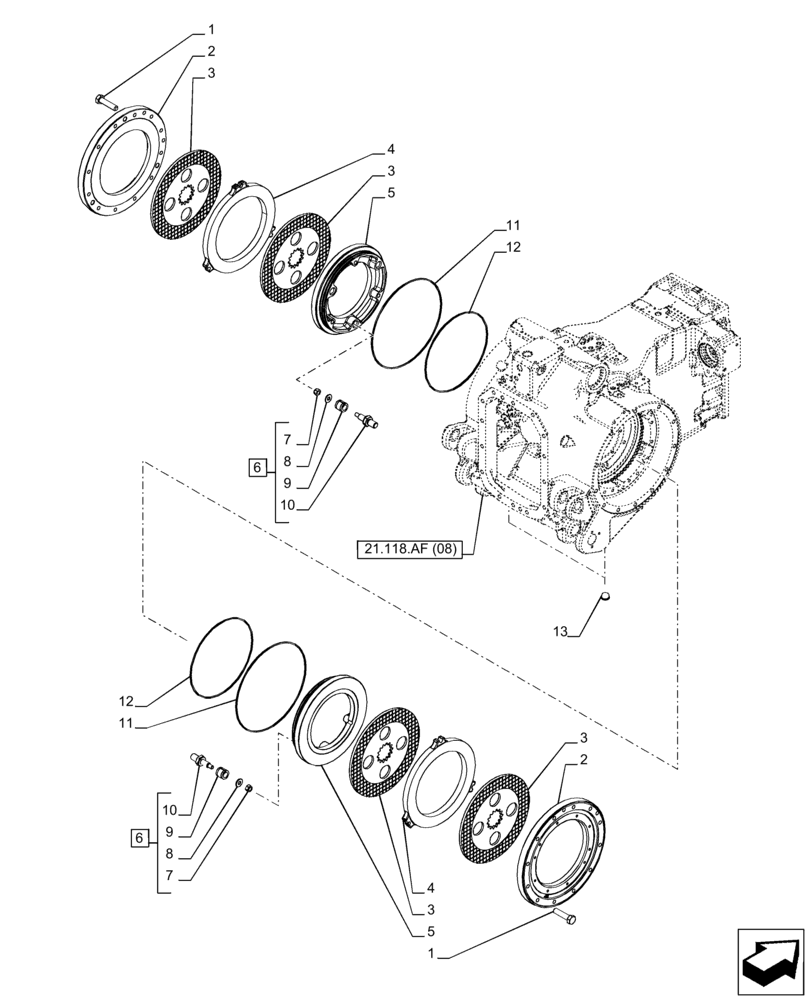

Запчасти Case IH PUMA 220 (33.202.AK[03]) - VAR - 758204 - TRANSMISSION, BRAKE DISC (33) - BRAKES & CONTROLS

1

14274924

BOLT,Hex, M12 x 1.25 x 50mm, Cl 8.8

24шт.

2

5185968

BRAKE DISC,245mm ID x 400mm OD x 29mm Thk

2шт.

3

84329060

BRAKE DISC,60mm ID x 327mm OD x 9.6mm Thk

, Years: -02-APR-17

4шт.

3

47819827

BRAKE DISC

, Start Year: 03-APR-17

4шт.

4

87731858

BRAKE DISC

2шт.

5

5195093

PISTON

2шт.

6

84172140

PIN

ASSY, Incl 7 - 10

6шт.

7

9628098

NUT,M8 x 1.25, Cl 10

2шт.

8

84177978

WASHER,8.2mm ID x 20mm OD x 2mm Thk

2шт.

9

84172142

BUSHING,13.3mm ID x 20mm OD x 21.9mm L

1шт.

10

84172141

PIN,22mm OD x 64mm L

1шт.

11

5165512

SEAL,Square, 3.4mm Thk x 329.8mm ID, 80 Duro

Outer

1шт.

12

5195253

SEAL,Square, 3.4mm Thk x 294.1mm ID, 80 Duro

Inner

1шт.

13

5152383

DRAIN PLUG,M12 x 1.25 x 24mm

1шт.
