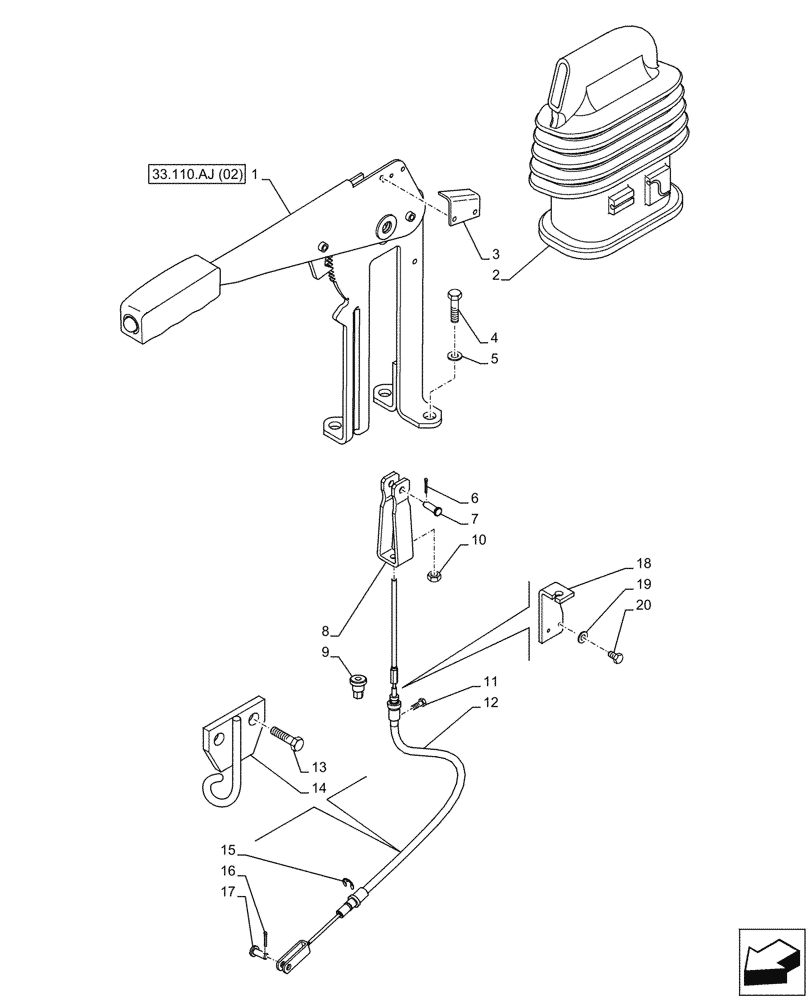

Запчасти Case IH PUMA 220 (33.110.AJ[01]) - VAR - 391147 - HAND BRAKE, LEVER (33) - BRAKES & CONTROLS

1

47813607

HAND BRAKE

ASSY

1шт.

2

84213451

BOOT

1шт.

3

84199077

PROTECTION PLATE

1шт.

4

11106224

SCREW,Hex, M10 x 25mm, Cl 8.8, Full Thd

2шт.

5

14496601

WASHER,10.5mm ID x 21mm OD x 2mm Thk

2шт.

6

81813880

COTTER PIN,3/32" x 3/4"

1шт.

7

83902558

PIN,3/8" x 1.312"

1шт.

8

84140224

CLEVIS

1шт.

9

82000974

NUT,Adj., M8, 1.25 Pitch, 23.00mm High, Zinc

1шт.

10

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

1шт.

11

87305546

SCREW,Phillips Drive, Oval HD, M5 x 10mm, Cl 4.8

1шт.

12

84140203

BOWDEN CONTROL

1шт.

13

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

2шт.

14

82034369

SLIDE GUIDE

1шт.

15

11087374

CIRCLIP,M13

1шт.

16

10766901

COTTER PIN,M3.2 x 25

1шт.

17

10033411

PIN,10mm OD x 27mm L

1шт.

18

87394905

BRACKET

1шт.

19

82879352

LOCK WASHER,M12

2шт.

20

15540424

SCREW,Hex, M12 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.
