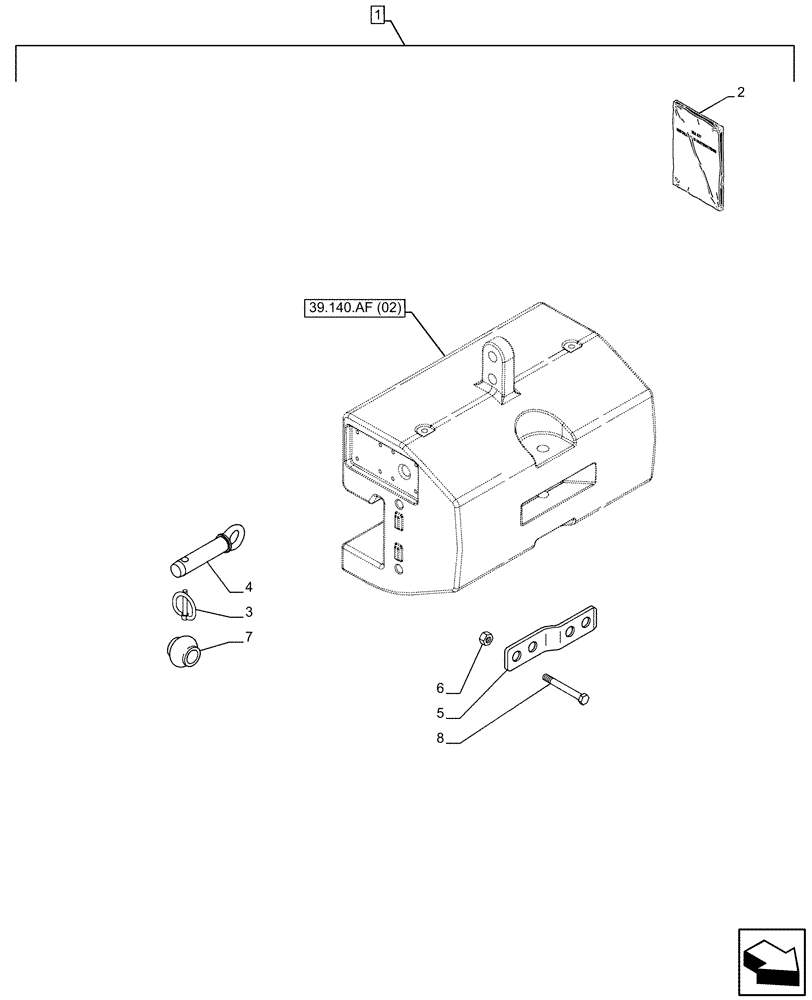

Запчасти Case IH PUMA 220 (88.100.39[02]) - DIA KIT, WEIGHT, W/ INTEGRATED TOW HOOK (1000 KG) (88) - ACCESSORIES

1

710061034

DIA KIT, TRACTOR

1000Kg 3 Section Weight with Tow Hook, Incl 2 - 8

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

1

710061044

DIA KIT, TRACTOR

1000Kg 3 Section Weight with Tow Hook, Incl 2 - 8

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

47684484

INSTRUCTION

1шт.

3

5166585

LOCK PIN,11mm OD

1шт.

4

822483

PIN,25.5mm OD x 137mm L

1шт.

5

84241345

BRACKET,335mm L x 80mm W x 10mm Thk

2шт.

6

325290

NUT,M30, Cl 8

2шт.

7

5172480

BALL,25.4mm ID x 50mm OD

1шт.

8

86980492

BOLT,Hex, M30 x 3.5 x 110mm, Cl 10.9

2шт.
