Запчасти Case IH PUMA 220 (55.640.BH[07]) - VAR - 758161, 758376, 758965 - ISOBUS SOCKET, RELAY, SUPPORT (55) - ELECTRICAL SYSTEMS

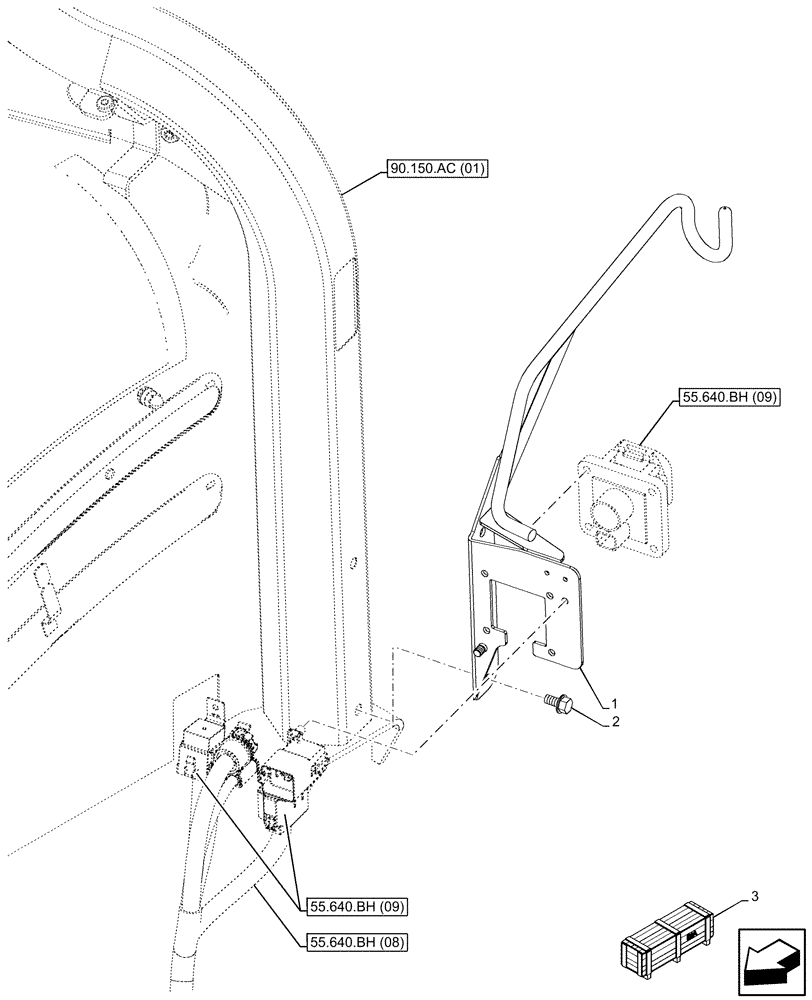

Схема запчастей Case IH PUMA 220 - (55.640.BH[07]) - VAR - 758161, 758376, 758965 - ISOBUS SOCKET, RELAY, SUPPORT (55) - ELECTRICAL SYSTEMS
55.640.bh (09)
2
1
3
90.150.ac (01)
55.640.bh (08)
55.640.bh (09)

Артикул

Название

Примечание

Количество

1

47588647

SUPPORT

1шт.

2

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

2шт.

3

719344094

DIA KIT, TRACTOR

Rear Isobus, Incl 1, 2

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Выбрано товаров: 4
