Запчасти Case IH PUMA 220 (55.525.AK[01]) - VAR - 337426, 337427, 337428, 337429, 337430, 337431, 337432, 337433, 391137, 758017, 758018, 758019, 758020, 758021, 758022, 759052, 759053 - ENGINE, THROTTLE (55) - ELECTRICAL SYSTEMS

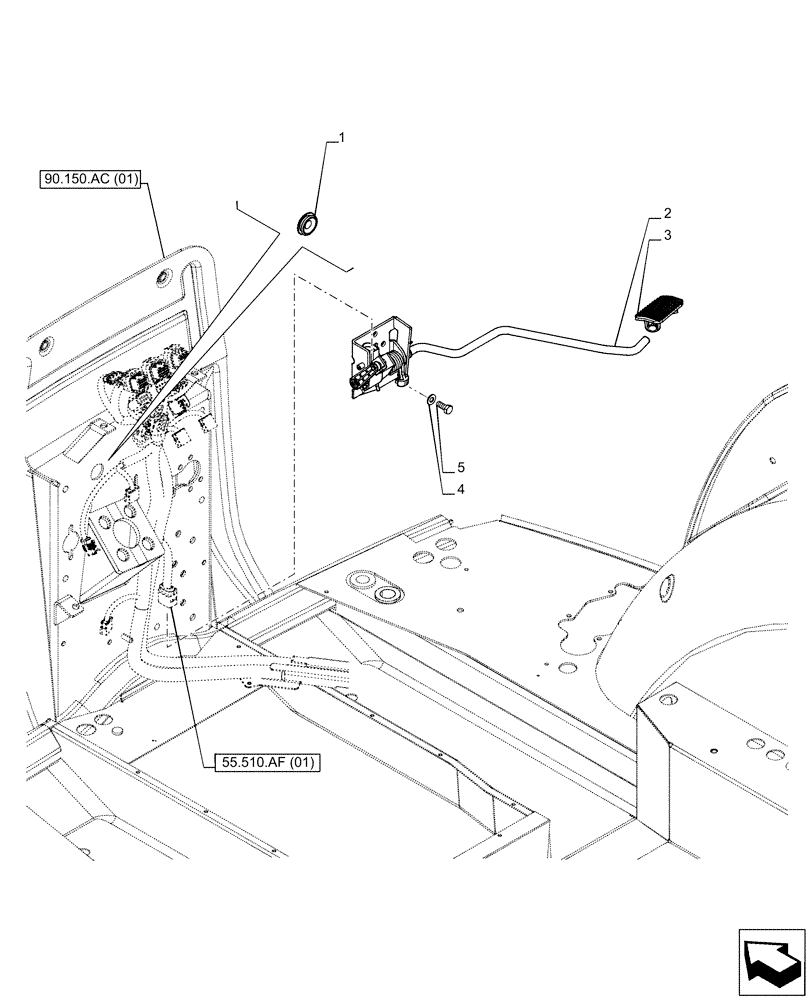

Схема запчастей Case IH PUMA 220 - (55.525.AK[01]) - VAR - 337426, 337427, 337428, 337429, 337430, 337431, 337432, 337433, 391137, 758017, 758018, 758019, 758020, 758021, 758022, 759052, 759053 - ENGINE, THROTTLE (55) - ELECTRICAL SYSTEMS
90.150.ac (01)
2
5
1
3
4
55.510.af (01)

Артикул

Название

Примечание

Количество

1

81862738

PLUG,M38 x 28 x 5mm

1шт.

2

47400401

ACCELERATOR

Electronic, Rubber

1шт.

3

84250071

PEDAL

Throttle

1шт.

4

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

3шт.

5

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

3шт.
