(55.512.CS[23]) - VAR - 758666 - SEAT, AIR SUSPENSION, DELUXE LEATHER COMFORT PACK EHR, SWITCH, HARNESS

Запчасти Case IH PUMA 220 (55.512.CS[23]) - VAR - 758666 - SEAT, AIR SUSPENSION, DELUXE LEATHER COMFORT PACK EHR, SWITCH, HARNESS (55) - ELECTRICAL SYSTEMS

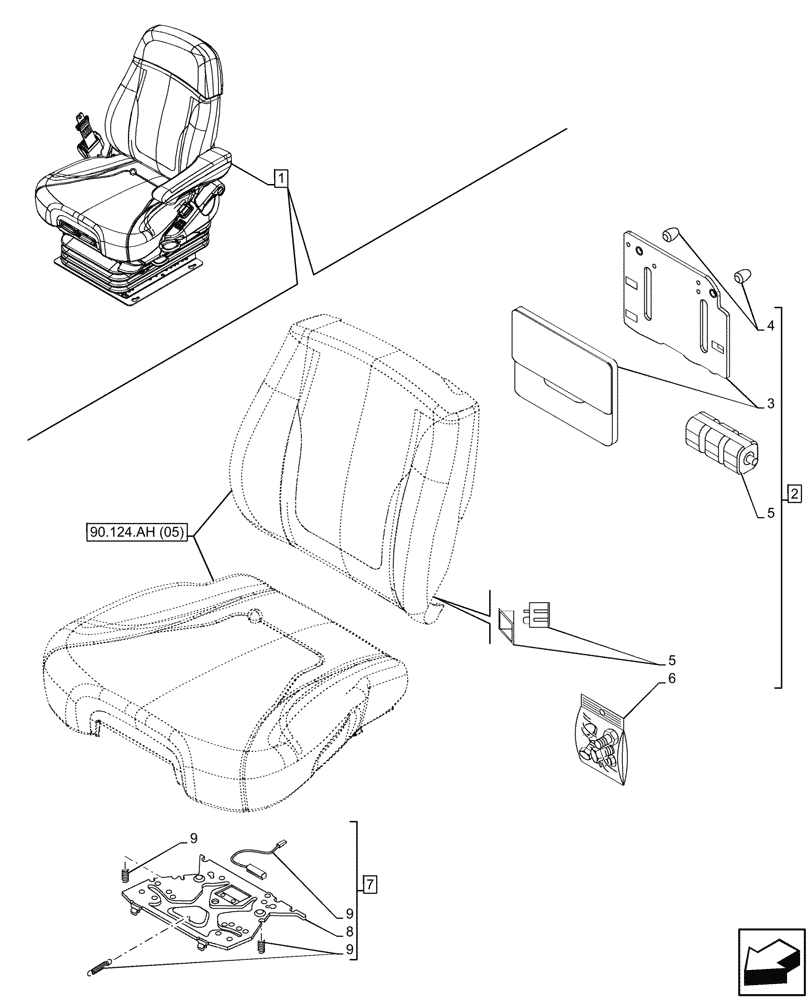

Схема запчастей Case IH PUMA 220 - (55.512.CS[23]) - VAR - 758666 - SEAT, AIR SUSPENSION, DELUXE LEATHER COMFORT PACK EHR, SWITCH, HARNESS (55) - ELECTRICAL SYSTEMS
90.124.ah (05)
5
9
5
2
9
1
3
7
8
6
9
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47730140

DRIVER SEAT

ASSY, Fabric Paubio Verona Scarlet, Deluxe Leather Comfort Pack EHR, Incl 2 - 9

1шт.

2

47891539

SUPPORT

ASSY, Incl 3 - 6

1шт.

3

NSS

NOT SOLD SEPARAT

Support, Incl in 2

1шт.

4

47918168

REPAIR KIT

1шт.

5

47918164

AIR COMPRESSOR

1шт.

6

47918167

SERVICE KIT

1шт.

7

47891523

SERVICE KIT

ASSY, Incl 8, 9

1шт.

8

NSS

NOT SOLD SEPARAT

Plate, Incl in 7

1шт.

9

84191201

SET OF PARTS

1шт.
