Запчасти Case IH PUMA 220 (55.512.CS[07]) - ARMREST, ELECTRONIC CONTROLS (55) - ELECTRICAL SYSTEMS

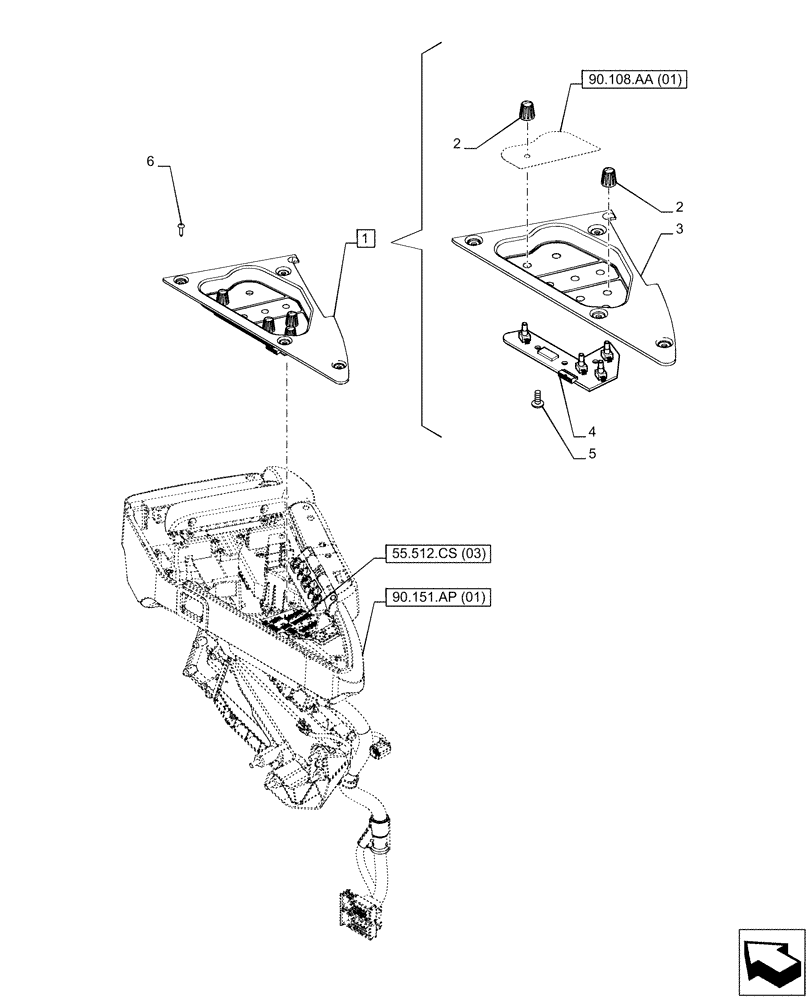

Схема запчастей Case IH PUMA 220 - (55.512.CS[07]) - ARMREST, ELECTRONIC CONTROLS (55) - ELECTRICAL SYSTEMS
90.151.ap (01)
6
2
2
3
5
1
4
55.512.cs (03)
90.108.aa (01)

Артикул

Название

Примечание

Количество

1

84168656

ELECTRIC PANEL

EDC Rear, with Slip, less EHR, ASSY, Incl 2 - 5

1шт.

2

82012988

KNOB

Small

4шт.

3

87486096

PANEL

EDC Controls

1шт.

4

84175363

PRINTED CIRCUIT BOAR

Printed Circuit

1шт.

5

82018700

SCREW,Phillips Drive, Round HD, M2.5 x 10mm

3шт.

6

15903977

SELF-TAP SCREW,Pan Head, M4.8 x 1.6 x 19mm

4.8 x 19

4шт.

Выбрано товаров: 6
