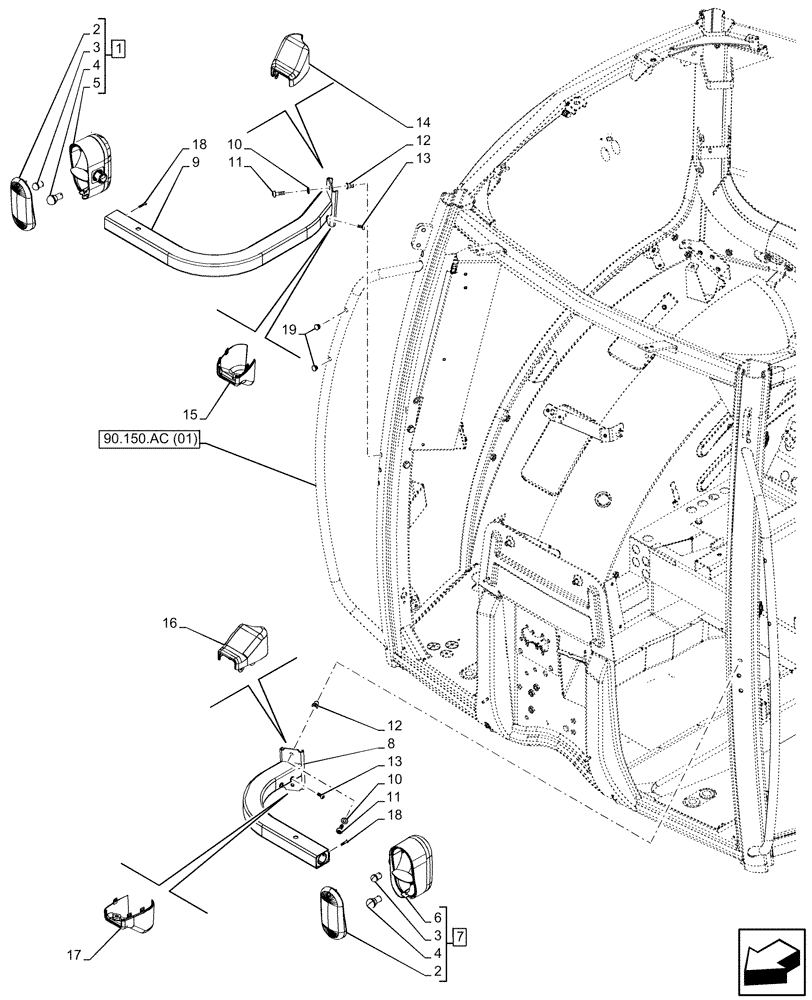

Запчасти Case IH PUMA 220 (55.404.CA[03]) - VAR - 391205, 758338 - INDICATOR LIGHT, NA (55) - ELECTRICAL SYSTEMS

1

47721718

LAMP,12V, 5W

ASSY, RH, Incl 2 (Qty 1), 3 (Qty 1), 4 (Qty 1), 5

1шт.

2

87304539

LENS

2шт.

3

14148090

BULB,PY21W, 12V, 21W

2шт.

4

10857790

BULB,R10W, 12V, 5W

2шт.

5

NSS

NOT SOLD SEPARAT

Lamp, RH, Incl in 1

1шт.

6

NSS

NOT SOLD SEPARAT

Lamp, LH, Incl in 7

1шт.

7

47721717

LAMP,12V, 5W

ASSY, LH, Incl 2 (Qty 1), 3 (Qty 1), 4 (Qty 1), 6

1шт.

8

47754439

SUPPORT

LH

1шт.

9

47754441

SUPPORT

RH

1шт.

10

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

4шт.

11

84188431

SCREW,Pan HD, M8 x 25mm, Cl 8.8

4шт.

12

15629111

RIVET,Flat, M8 OD x 17.5mm L

4шт.

13

84187812

SCREW,Torx, Pan HD, M6 x 16mm, Cl 4.8

8шт.

14

47779623

COVER

RH

1шт.

15

47779624

COVER

RH

1шт.

16

47779621

COVER

LH

1шт.

17

47779622

COVER

LH

1шт.

18

15644401

SELF-TAP SCREW,Pan Hd, M8 x 25mm

2шт.

19

82037605

PLUG,11.5mm ID

6шт.
