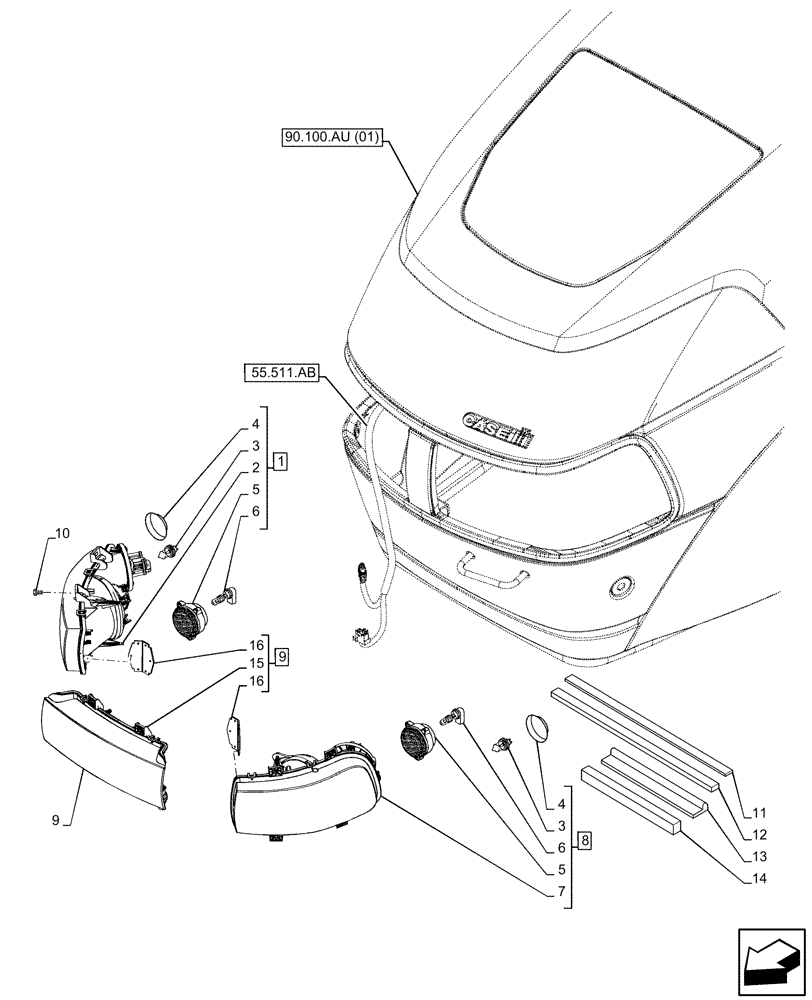

Запчасти Case IH PUMA 220 (55.404.AQ[01]) - HEADLIGHT (55) - ELECTRICAL SYSTEMS

1

87455685

HEADLAMP,12V, Clear

ASSY, 12V, Clear, RH, Incl 2, 3 (Qty1), 4 (Qty1), 5 (Qty1), 6 (Qty1)

1шт.

2

NSS

NOT SOLD SEPARAT

Headlamp, Incl in 1

1шт.

3

14152090

BULB,H4, 12V, 60/55W

12V, 60/55W

2шт.

4

87314918

COVER

2шт.

5

87314917

LAMP

2шт.

6

82004449

BULB,Halogen, 12V, 50W

2шт.

7

NSS

NOT SOLD SEPARAT

Headlamp, Incl in 8

1шт.

8

87455684

HEADLAMP,12V, Clear

ASSY, 12V, Clear, LH, Incl 3 (Qty1), 4 (Qty1), 5 (Qty1), 6 (Qty1), 7

1шт.

9

87455686

COVER

ASSY, Blank Center Section, Incl 15, 16

1шт.

10

86624996

BOLT,Hex Flange, M6 x 16.00mm, Cl 8.8, BZN

12шт.

11

84381184

SEALING STRIP,20mm W x 935mm L x 3mm Thk

1шт.

12

84381185

SEALING STRIP,20mm W x 990mm L x 3mm Thk

1шт.

13

84381186

FOAM INSULATION,20mm W x 350mm L x 7.8mm Thk

2шт.

14

84381187

GASKET

2шт.

15

NSS

NOT SOLD SEPARAT

Headlamp, Incl in 9

1шт.

16

87520630

BRACKET

2шт.
