Запчасти Case IH PUMA 220 (55.202.AE[02]) - VAR - 758008 - BLOCK HEATER (240V) (55) - ELECTRICAL SYSTEMS

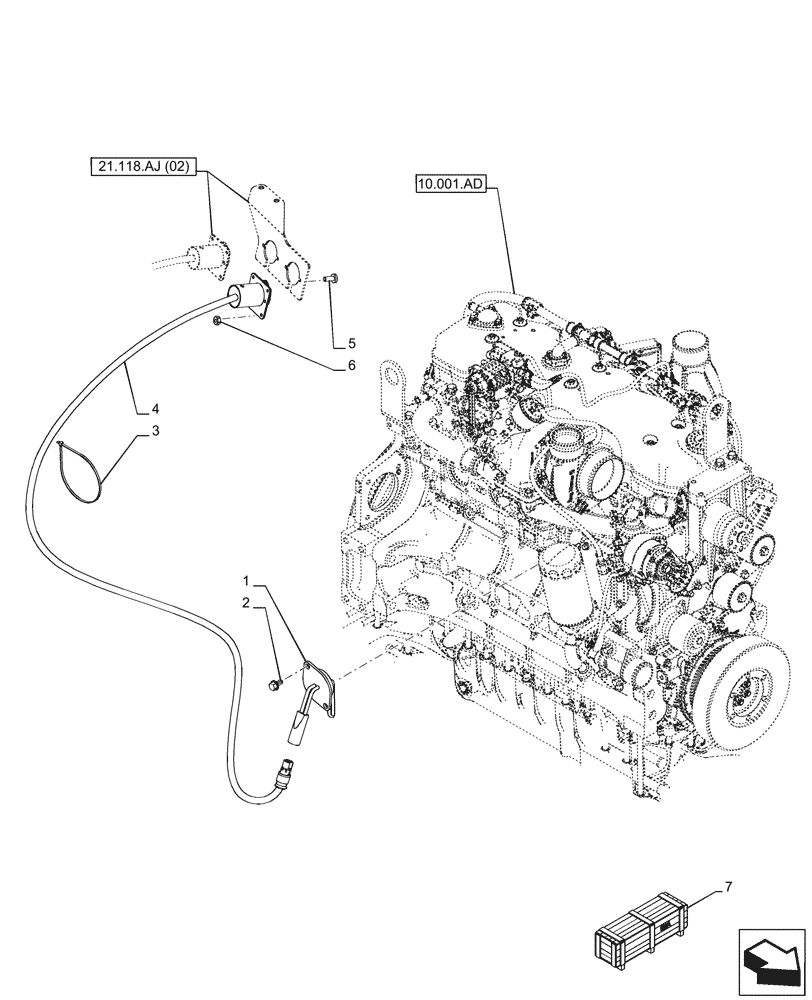

Схема запчастей Case IH PUMA 220 - (55.202.AE[02]) - VAR - 758008 - BLOCK HEATER (240V) (55) - ELECTRICAL SYSTEMS
10.001.ad
3
6
2
4
7
5
1
21.118.aj (02)

Артикул

Название

Примечание

Количество

1

87756078

HEATER,240V

240V, Engine Block

1шт.

2

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

2шт.

3

82001041

CABLE TIE,0.190" x 7.00" / 200 mm L

2шт.

4

84397509

ELECTRIC CABLE

240V, Engine Block

1шт.

5

13271914

SCREW,Pozidriv Pan Hd, M4 x 10mm, Cl 5.8, Full Thd

2шт.

6

100012

NUT,M4 x 0.7, Cl 8

2шт.

7

718188004

DIA KIT, TRACTOR

Block and Transmission Oil Heater, ASSY, Incl 1, 2

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Выбрано товаров: 8
