Запчасти Case IH PUMA 220 (35.300.AJ[01]) - VAR - 391161, 758056 - OIL FILTER, LINE, POWERSHIFT (35) - HYDRAULIC SYSTEMS

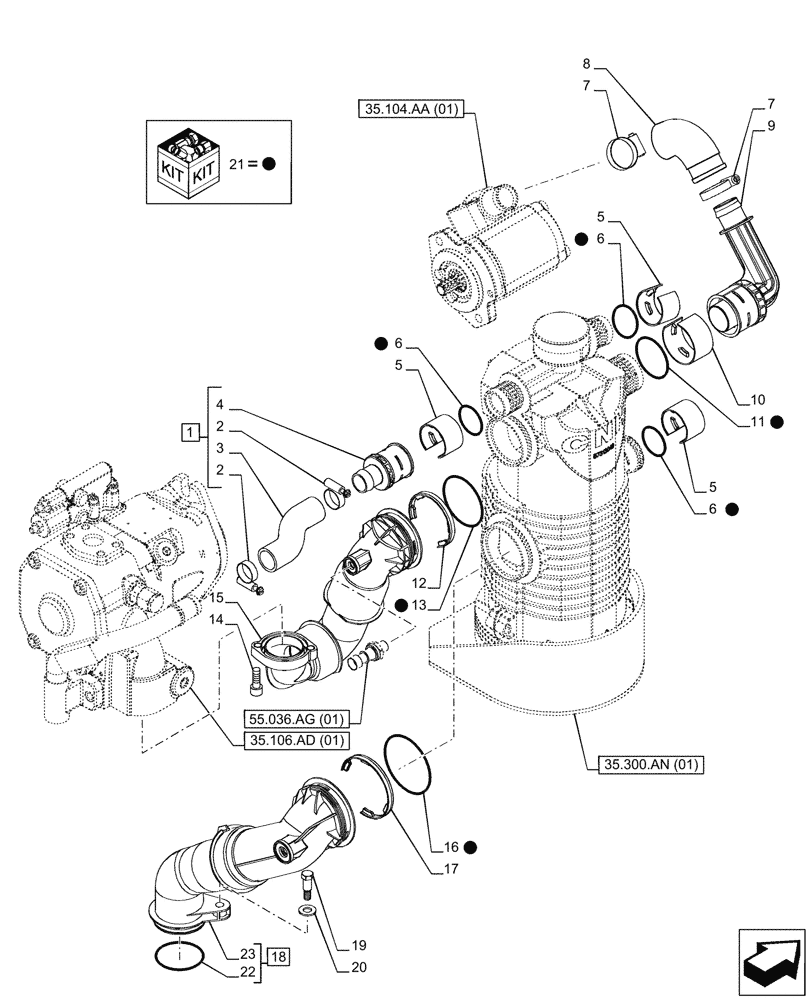

Схема запчастей Case IH PUMA 220 - (35.300.AJ[01]) - VAR - 391161, 758056 - OIL FILTER, LINE, POWERSHIFT (35) - HYDRAULIC SYSTEMS
35.104.aa (01)
9
14
20
15
21
11
4
23
5
1
21
21
10
18
16
2
21
21
22
6
19
21
6
21
21
5
17
2
6
7
12
13
8
7
3
5
35.106.ad (01)
55.036.ag (01)
35.300.an (01)

Артикул

Название

Примечание

Количество

1

47460206

HYDRAULIC HOSE

ASSY, Incl 2 - 4

1шт.

2

82036709

HOSE CLAMP,25mm - 40mm, Worm Gear

2шт.

3

NSS

NOT SOLD SEPARAT

Hose, Incl in 1

1шт.

4

87381694

HYD CONNECTOR,21mm D x 22mm D

1шт.

5

84121298

SNAP RING,30mm Thk, Ext

3шт.

6

87381700

O-RING,25.50mm ID x 2.53mm

3шт.

7

13001690

HOSE CLAMP,Worm Gear, 30mm/45mm x 9mm W, CST, ZND

2шт.

8

87323539

ELBOW,90 Deg, 31mm ID x 45mm OD

1шт.

9

87324688

ELBOW,90 Deg, 32.9mm - 27mm ID

1шт.

10

87330755

STOP DEVICE

1шт.

11

235757

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

1шт.

12

87381696

SNAP RING,8mm Thk, Ext

1шт.

13

87381702

O-RING,53.5mm ID x 2.387mm OD x 3.53mm

1шт.

14

86625220

HEX SOC SCREW,M8 x 25mm, Cl 8.8

2шт.

15

87395841

TUBE

Drain

1шт.

16

87381699

O-RING,63.50mm ID x 3.53mm

1шт.

17

87381695

CIRCLIP,8mm Thk

1шт.

18

87473619

TUBE

Suction, ASSY, Incl 22, 23

1шт.

19

87687675

BOLT,M8 x 1.25 x 32mm, Cl 8.8

1шт.

20

14496607

WASHER,10.5mm ID x 21mm OD x 2mm Thk

10.5 x 21 x 2

1шт.

21

87705156

SEAL KIT

1шт.

22

87705158

GASKET KIT

1шт.

23

NSS

NOT SOLD SEPARAT

Tube, Incl in 18

1шт.

Выбрано товаров: 23
