(35.204.BS[05]) - VAR - 758065 - 2 ELECTRONIC MID MOUNTED VALVES

Запчасти Case IH PUMA 220 (35.204.BS[05]) - VAR - 758065 - 2 ELECTRONIC MID MOUNTED VALVES (35) - HYDRAULIC SYSTEMS

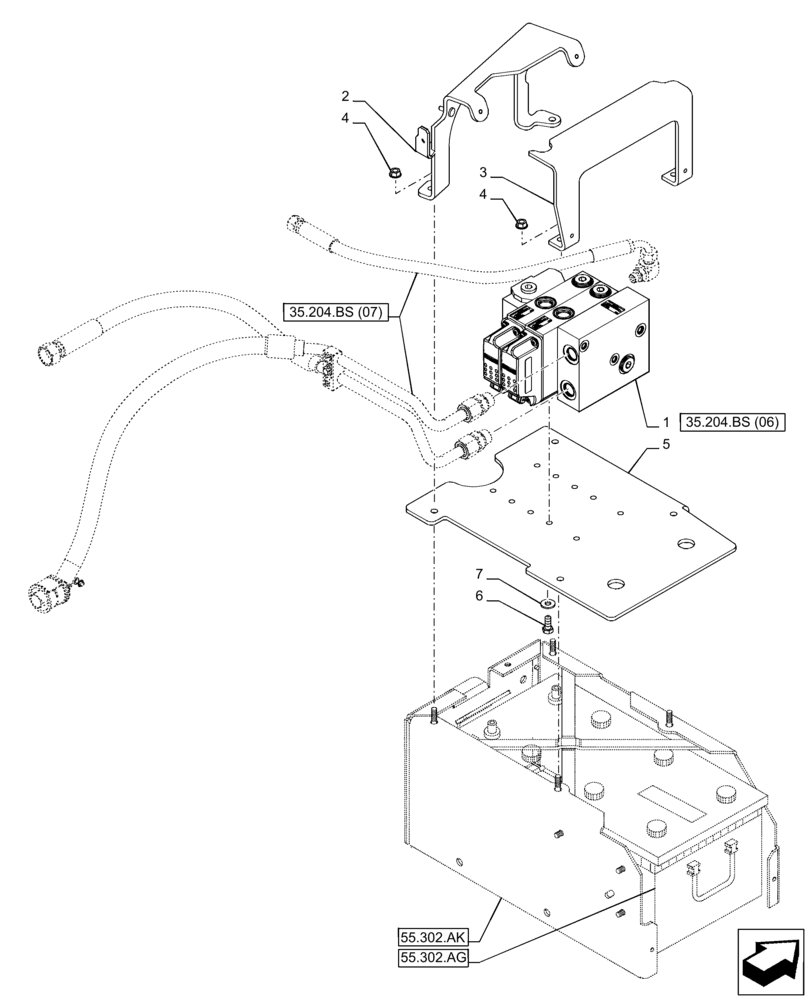

Схема запчастей Case IH PUMA 220 - (35.204.BS[05]) - VAR - 758065 - 2 ELECTRONIC MID MOUNTED VALVES (35) - HYDRAULIC SYSTEMS
35.204.bs (06)
6
7
2
5
4
35.204.bs (07)
4
55.302.ak
1
3
55.302.ag
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47433959

CONTROL VALVE

1шт.

2

47580528

BRACKET

RH

1шт.

3

84371293

SUPPORT

LH

1шт.

4

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

4шт.

5

47552840

PLATE

1шт.

6

16043411

BOLT,Hex, M8 x 1.25 x 20mm, Cl 5.8, Full Thd

4шт.

7

12646704

WASHER,8.15mm ID x 20mm OD x 2mm Thk

4шт.
