Запчасти Case IH PUMA 220 (35.162.AG[10]) - VAR - 758089, 758090, 758091 - 3 POINT HITCH, FRONT, CYLINDER, LINE (35) - HYDRAULIC SYSTEMS

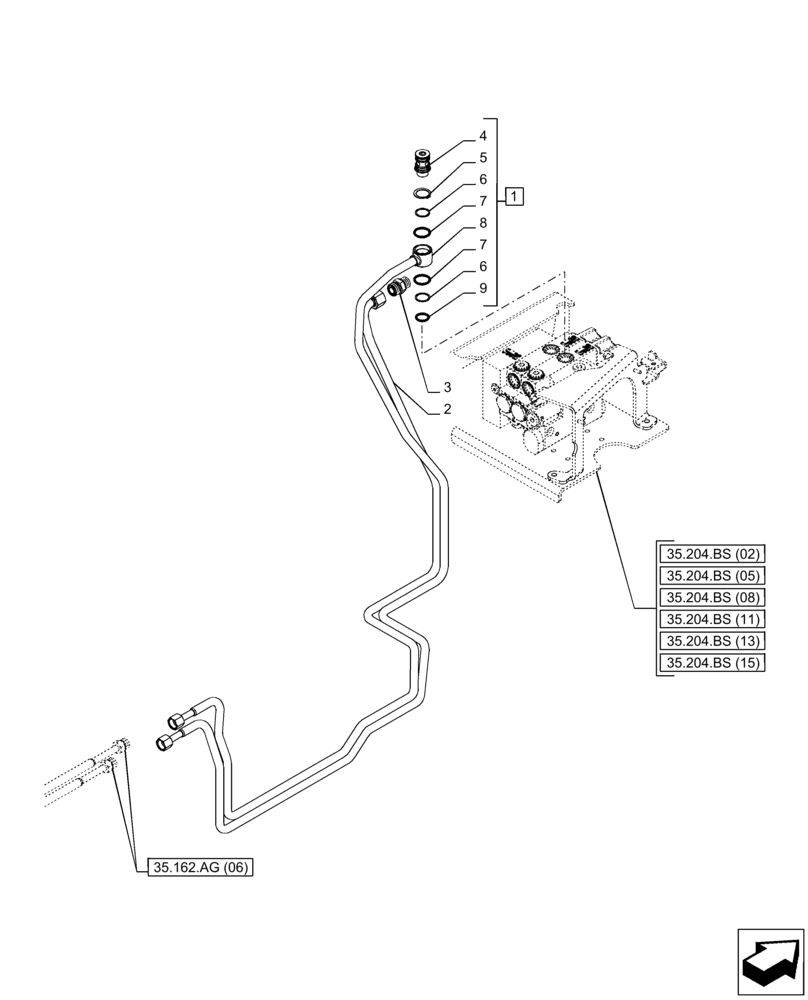

Схема запчастей Case IH PUMA 220 - (35.162.AG[10]) - VAR - 758089, 758090, 758091 - 3 POINT HITCH, FRONT, CYLINDER, LINE (35) - HYDRAULIC SYSTEMS
9
35.204.bs (05)
35.162.ag (06)
35.204.bs (13)
7
7
3
6
35.204.bs (11)
4
35.204.bs (02)
1
5
35.204.bs (15)
2
8
6
35.204.bs (08)

Артикул

Название

Примечание

Количество

1

47526670

PIPE

Raise, ASSY, Incl 4 - 9

1шт.

2

47526668

PIPE

Lower

1шт.

3

86579680

HYD CONNECTOR,1"-14 ORFS x M22 x 1.5mm ORB

1шт.

4

47530975

BANJO BOLT,M22 x 1.5

1шт.

5

300629

SNAP RING,M28, Ext

1шт.

6

47361752

RING,24.28mm ID x 28.64mm OD x 1.35mm Thk

2шт.

7

271913

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

2шт.

8

NSS

NOT SOLD SEPARAT

Pipe, Incl in 1

1шт.

9

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

Выбрано товаров: 9
