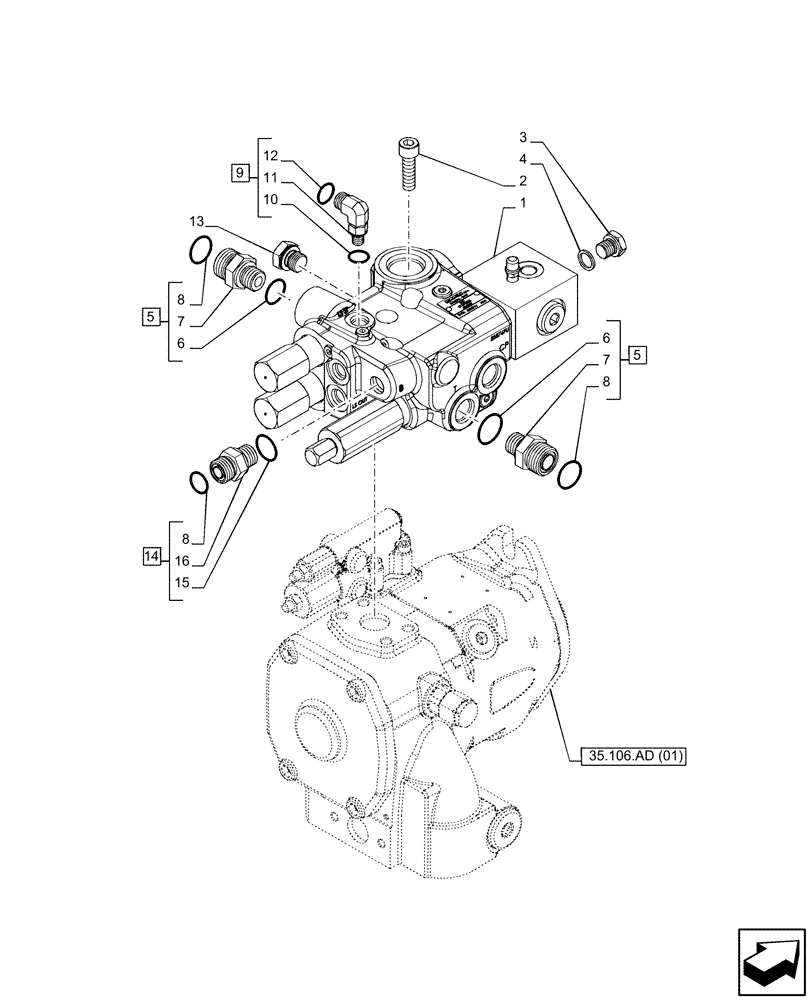

Запчасти Case IH PUMA 220 (35.100.AZ[02]) - VAR - 758037, 758039, 758040, 758042, 758044 - PRIORITY VALVE, POWERSHIFT (35) - HYDRAULIC SYSTEMS

1

47410289

FLOW CONTROL VALVE

1шт.

2

81869630

HEX SOC SCREW,M10 x 35mm, Cl 8.8

4шт.

3

47131496

PLUG,Hex, M12 x 1

Pipe

1шт.

4

10261060

SEALING WASHER,12.2mm ID x 16mm OD x 1.5mm Thk

1шт.

5

86579679

HYD CONNECTOR,1"-14 ORFS x M18 x 1.5 ORB

ASSY, Incl 6 - 8 (Qty 1)

1шт.

6

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

7

NSS

NOT SOLD SEPARAT

Connector, Incl in 5

1шт.

8

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

3шт.

9

84431522

ELBOW,90 Degree, 9/16"-18 ORFS x M12 x 1.5 ORB

ASSY, Incl 10 - 12

1шт.

10

86598098

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

11

NSS

NOT SOLD SEPARAT

Elbow, Incl in 9

1шт.

12

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

13

86981620

PLUG,M16 x 1.5, ORB

1шт.

14

86579676

HYD CONNECTOR,13/16" - 16 ORFS x M18 x 1.5 ORB

ASSY, Incl 8 (Qty 1), 15, 16

1шт.

15

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

16

NSS

NOT SOLD SEPARAT

Connector, Incl in 14

1шт.
