Запчасти Case IH PUMA 220 (35.100.AZ[01]) - VAR - 337481, 337484, 337488, 391155, 758038, 758041, 758043 - PRIORITY VALVE, POWERSHIFT (35) - HYDRAULIC SYSTEMS

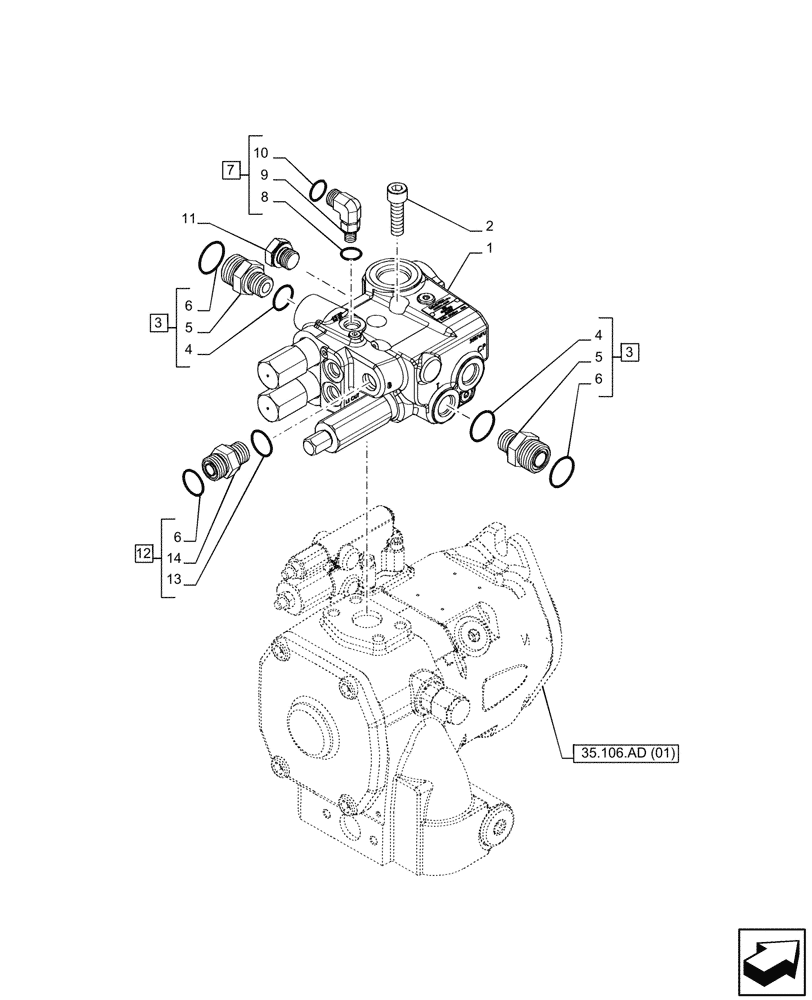

Схема запчастей Case IH PUMA 220 - (35.100.AZ[01]) - VAR - 337481, 337484, 337488, 391155, 758038, 758041, 758043 - PRIORITY VALVE, POWERSHIFT (35) - HYDRAULIC SYSTEMS
35.106.ad (01)
2
3
9
11
14
1
6
6
10
12
8
4
7
4
13
5
5
6
3

Артикул

Название

Примечание

Количество

1

47370797

HYDRAULIC VALVE

Flow Control

1шт.

2

81869630

HEX SOC SCREW,M10 x 35mm, Cl 8.8

4шт.

3

86579679

HYD CONNECTOR,1"-14 ORFS x M18 x 1.5 ORB

ASSY, Incl 4 - 6 (Qty 1)

1шт.

4

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

5

NSS

NOT SOLD SEPARAT

Connector, Incl in 3

1шт.

6

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

3шт.

7

84431522

ELBOW,90 Degree, 9/16"-18 ORFS x M12 x 1.5 ORB

ASSY, Incl 8 - 10

1шт.

8

86598098

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

9

NSS

NOT SOLD SEPARAT

Elbow, Incl in 7

1шт.

10

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

11

86981620

PLUG,M16 x 1.5, ORB

1шт.

12

86579676

HYD CONNECTOR,13/16" - 16 ORFS x M18 x 1.5 ORB

ASSY, Incl 8 (Qty 1), 13, 14

1шт.

13

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

14

NSS

NOT SOLD SEPARAT

Connector, Incl in 12

1шт.

Выбрано товаров: 14
